ICE THICKNESS CHECK

After a harvest cycle, inspect the ice cubes in the ice
storage bin. The ice thickness probe is factory-set to
maintain the ice bridge thickness at 1/8" (3.2 mm).
NOTE: Make sure the water curtain is in place when
performing this check. It prevents water from splashing
out of the water trough.
1. Inspect the bridge connecting the cubes. It should
be about 1/8" (3.2 mm) thick.
2. If adjustment is necessary, turn the ice thickness
probe adjustment screw clockwise to increase
bridge thickness, counterclockwise to decrease
bridge thickness. Set at 1/4" gap between ice
machine and evaporator as starting point, then
adjust to achieve a 1/8" bridge thickness.
NOTE: Turning the adjustment 1/3 of a turn will
change the ice thickness about 1/16" (1.5 mm).

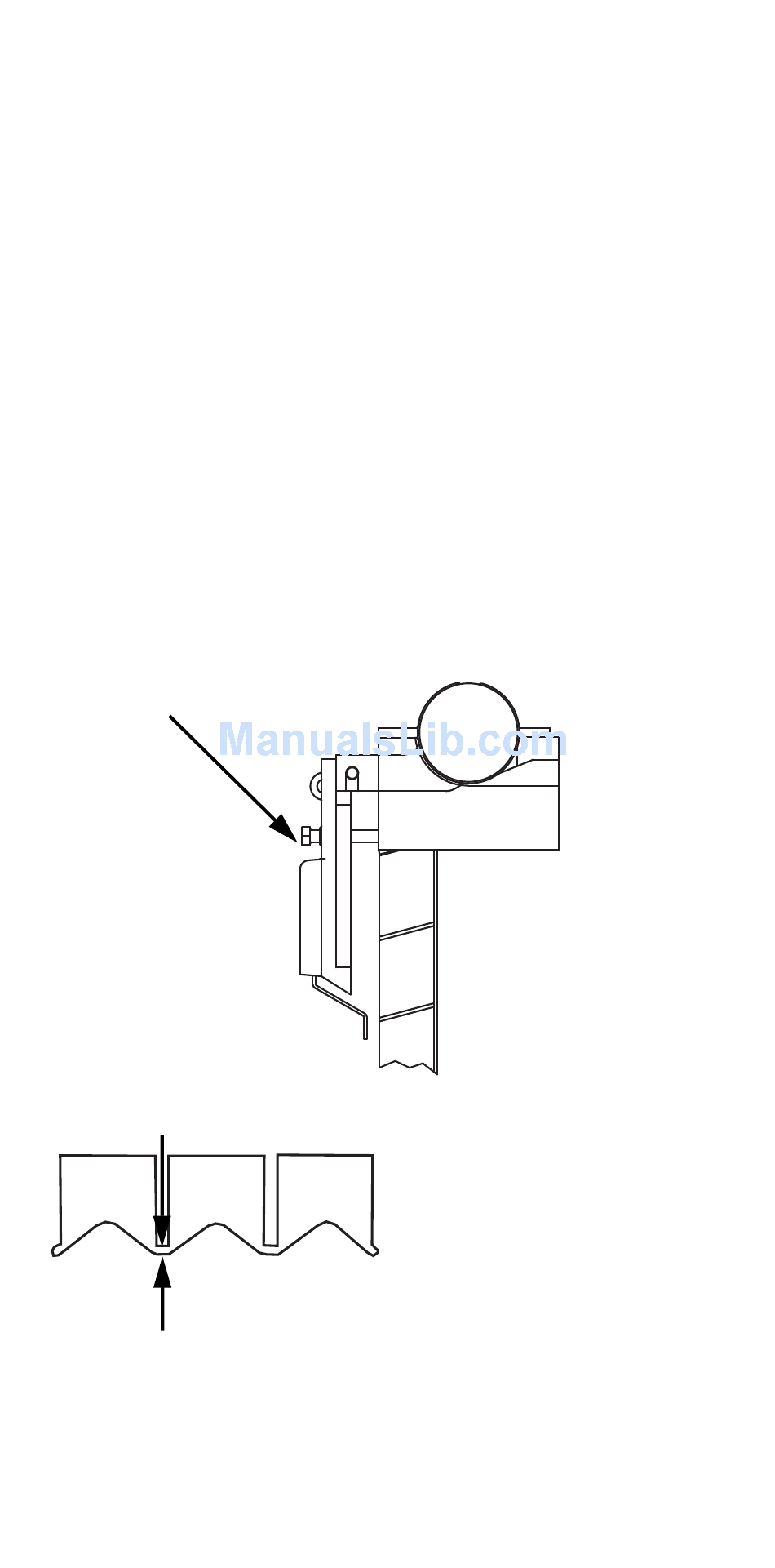

ADJUSTING
SCREW
1/8" ICE BRIDGE THICKNESS
ICE THICKNESS ADJUSTMENT
3. Make sure the ice thickness probe wire and
bracket do not restrict movement of the probe.
