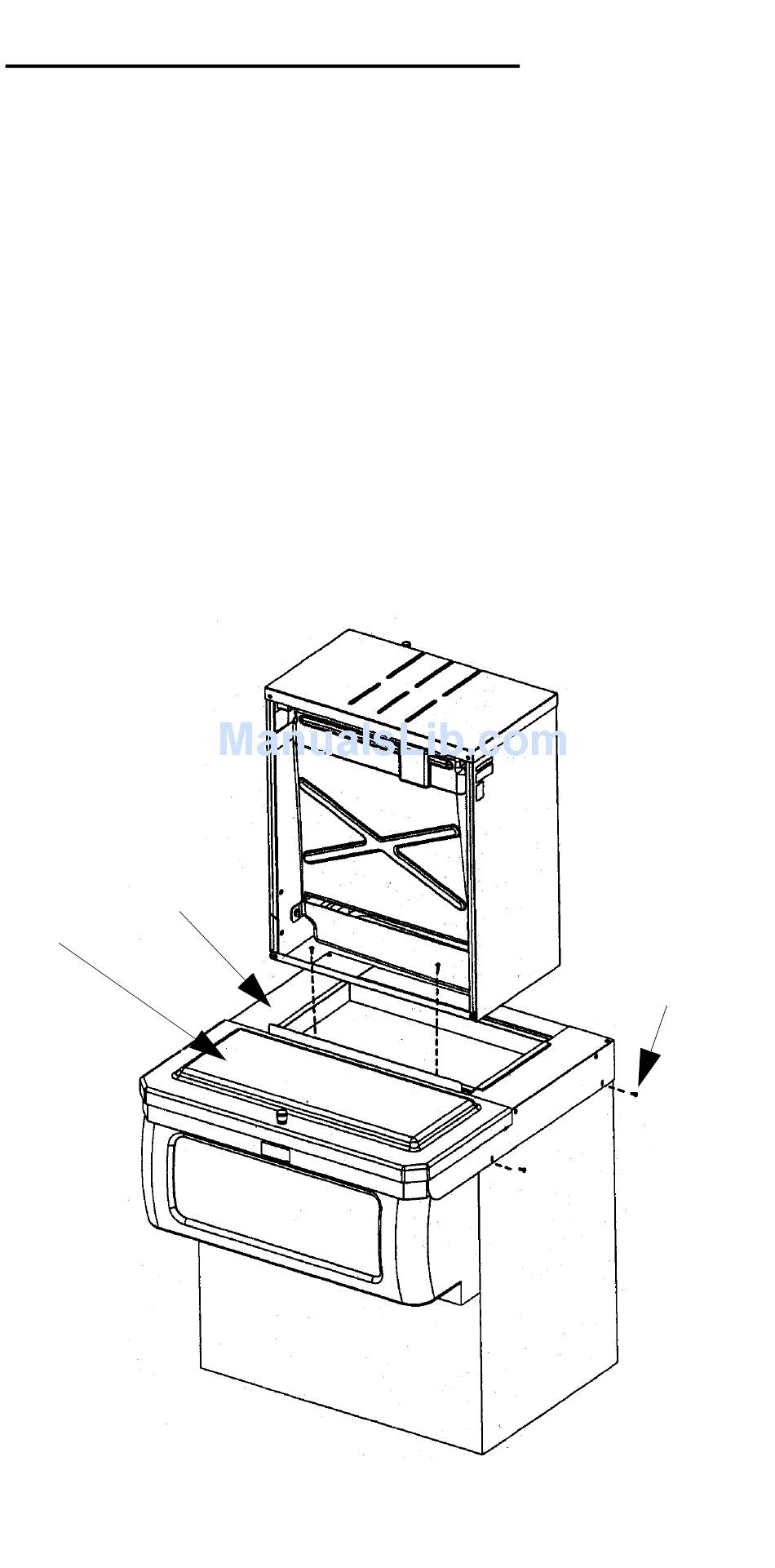

Typical Ice Beverage on a Dispenser
1. Install bin level thermostat bracket.
2. Set adapter on dispenser. Position the adapter so
that the front flange of the adapter will be up
against the front lip of the dispenser. Adapter may
have to be moved towards the back of the
dispenser.
3. Using the slotted holes in the adapter as a
template, drill four (4) 9/64" diameter holes at the
bottom of the slots. Note: Do not drill deeper than
1/4" past the sheet metal. Use a drill stop!
4. Fasten the adaptor to dispenser using the four (4)
#8 screws supplied with the adaptor kit.
5. Set the ice machine on top of the adapter. Align
holes in ice machine front angle with threaded
bosses on the adapter.
ADAPTER
BIN
COVER
34 Part Number 80-1505-3 6/11
SCREWS
