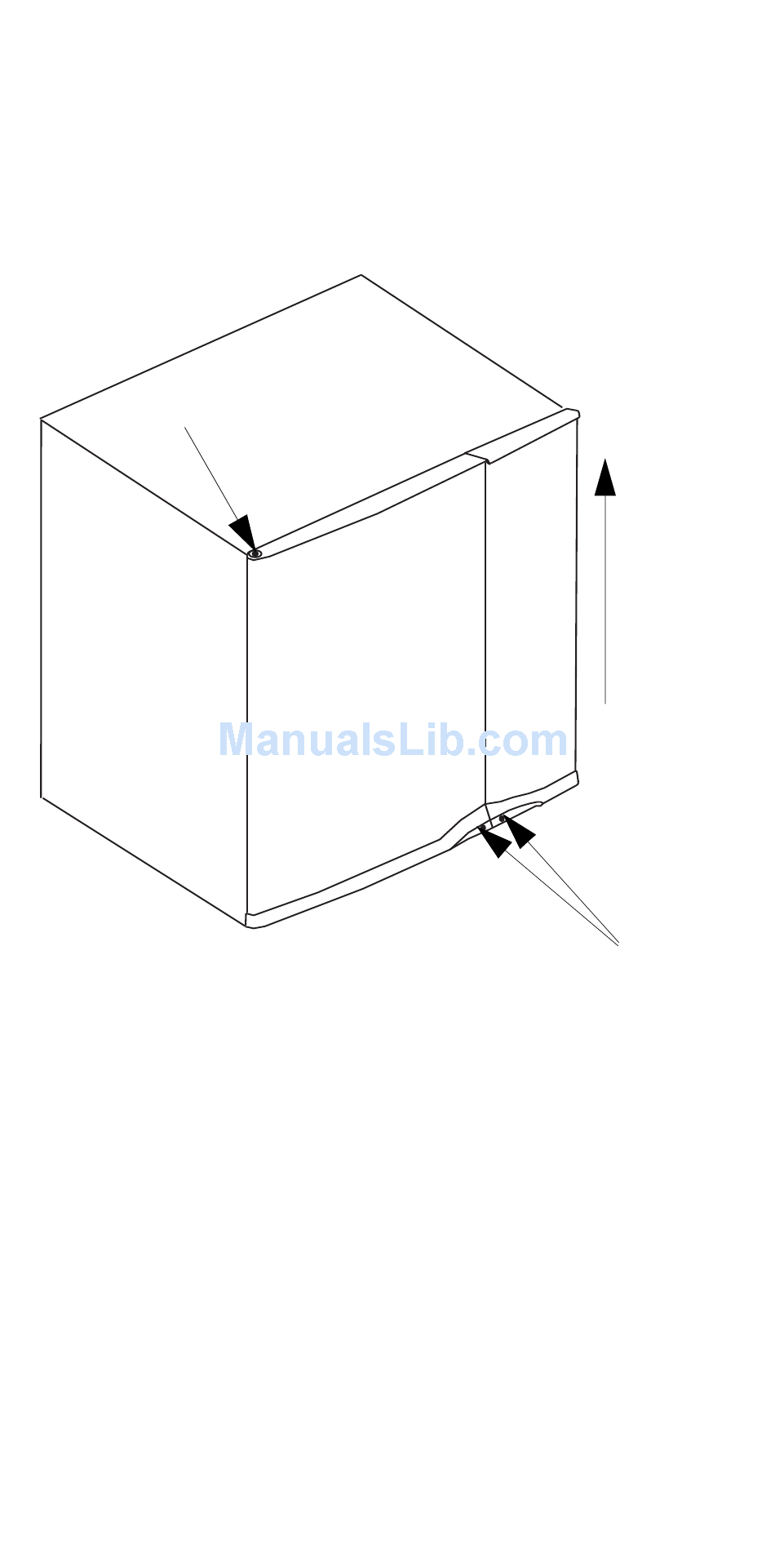

REMOVING THE FRONT PANELS

1. Disconnect power to ice machine.
2. Loosen screws. Do not remove they are retained
by o-rings to prevent loss.
3. To remove right front door lift up and remove.
4. Open left front door to 45 degrees.
5. Support with left hand, depress top pin, tilt top of
door forward and lift out of bottom pin to remove.
26
5
Door Removal
Part Number 80-1505-3 6/11
3
2
