DCS 6000 Digital Conference System
Connecting interpretation units
The CU 6110 is connected to the Conference Units
using EC 6001-xx Cat5e cables.
All four the DCS-LAN chain connectors on the CU
6110 can be used for connecting the Conference
Units.

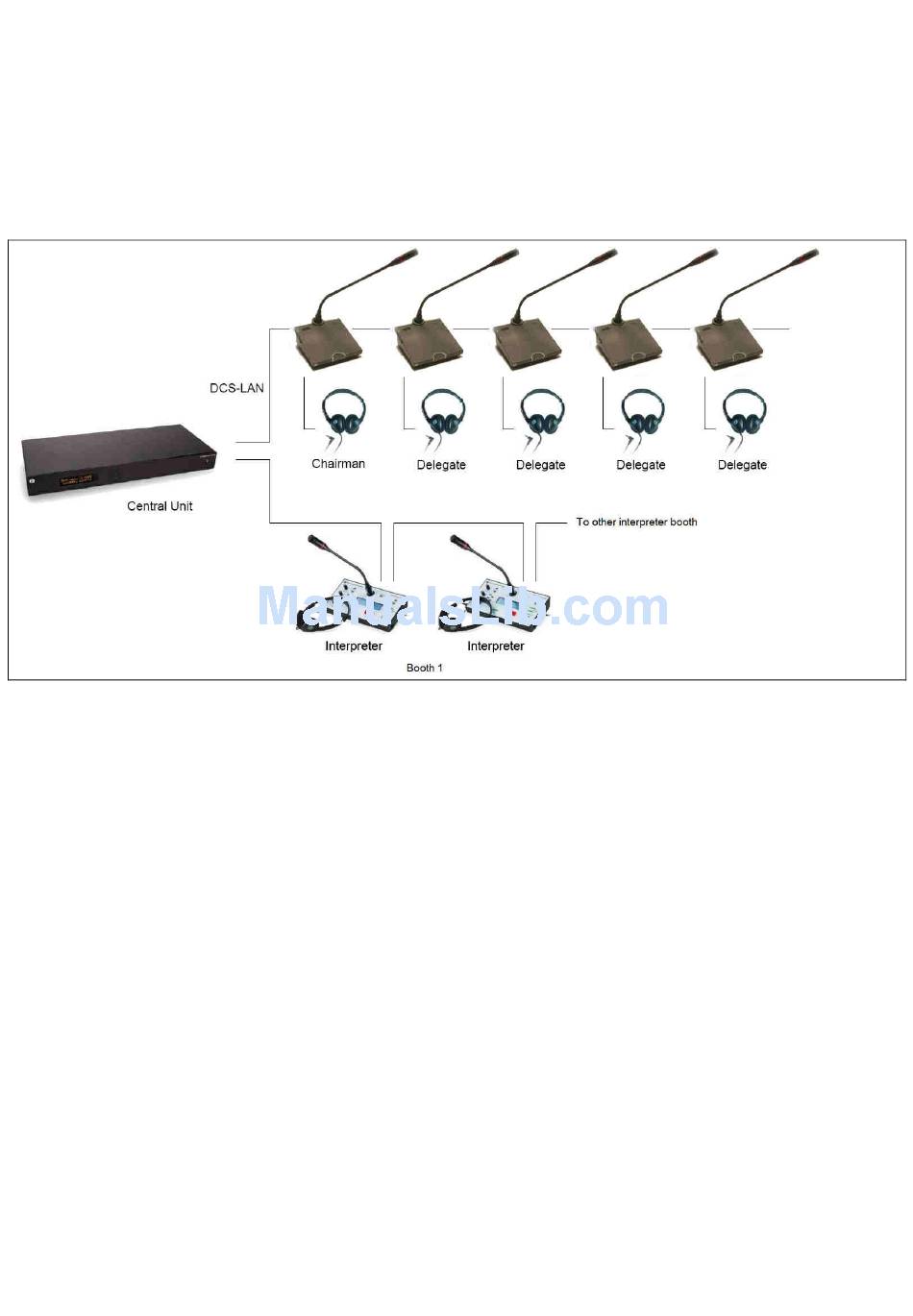

Figure 0-G
DCS 6000 Digital Conference System with interpretation functionality.
In this example one or more Interpreter Booth
with Interpreter Units and DH 6021 Headphone
is connected to the units.
Audio from the Interpreter Units can then be
heard in the headphones connected to the
Chairman and Delegate Units.
19
User Manual
