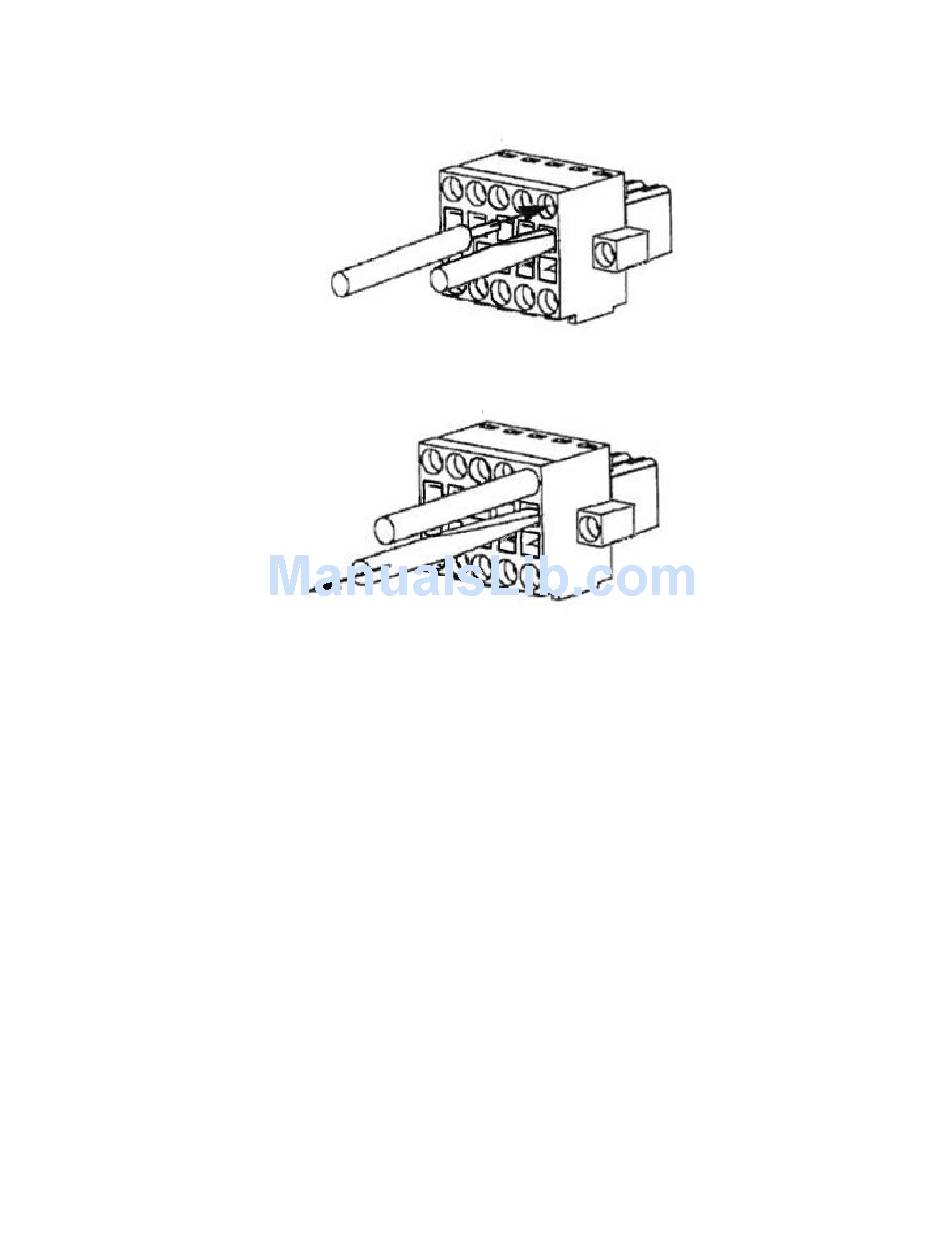

2. Keep the insertion tool in place, insert wire (28 AWG minimum, 18 AWG maximum)
into the wire hole.
3. Remove the insertion tool. Check wire connection.
5.11.4. I/O Configuration
The L-5500 I/O subsystem is configured via the L-5500 web pages. Status monitoring is
provided either by the Logic Data Systems Fleet Management System using the LM Direct
protocol, or by an NMEA-based protocol. The L-5500 I/O subsystem operates according to a
manager/agent module. The PC-hosted manager sends requests to the L-5500 I/O agent,
which performs the required actions. The L-5500 agent reports alarms and indications to the
PC-hosted manager.
