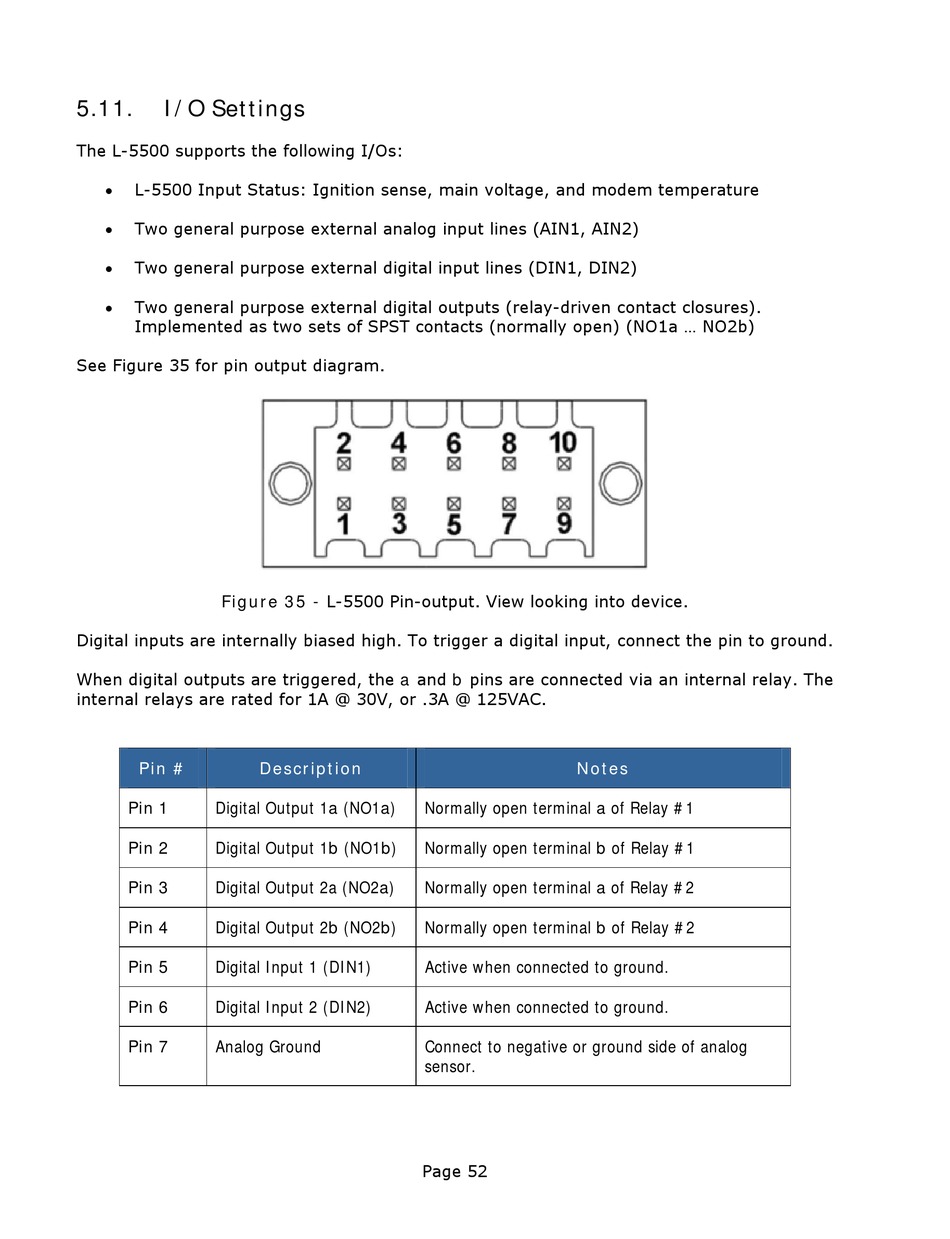

5.11.
I/O Settings
The L-5500 supports the following I/Os:
L-5500 Input Status: Ignition sense, main voltage, and modem temperature
Two general purpose external analog input lines (AIN1, AIN2)
Two general purpose external digital input lines (DIN1, DIN2)
Two general purpose external digital outputs (relay-driven contact closures).
Implemented as two sets of SPST contacts (normally open) (NO1a ... NO2b)
See Figure 35 for pin output diagram.
Figure 35 - L-5500 Pin-output. View looking into device.
Digital inputs are internally biased high. To trigger a digital input, connect the pin to ground.
When digital outputs are triggered, the a and b pins are connected via an internal relay. The
internal relays are rated for 1A @ 30V, or .3A @ 125VAC.
Pin #
Pin 1
Digital Output 1a (NO1a)
Pin 2
Digital Output 1b (NO1b)
Pin 3
Digital Output 2a (NO2a)
Pin 4
Digital Output 2b (NO2b)
Pin 5
Digital Input 1 (DIN1)
Pin 6
Digital Input 2 (DIN2)
Pin 7
Analog Ground
Description
Normally open terminal a of Relay #1
Normally open terminal b of Relay #1
Normally open terminal a of Relay #2
Normally open terminal b of Relay #2
Active when connected to ground.
Active when connected to ground.
Connect to negative or ground side of analog
sensor.
Page 52
