Lease Time: The period over which the IP address allocated to a DHCP client is referred to
as a "lease". Lease duration is the amount entered in seconds.
Domain Name Suffix: DNS suffix to be assigned by the DHCP server
Preferred DNS Suffix: IP address of the preferred DNS server
Alternate DNS Suffix: IP address of the alternate DNS server
5.5.3.4.
Wireless Settings
SSID: Service Set Identifier. This is the name of the wireless local area network.
Channel: Channel number to use (Auto or 1-11)
Authentication: Authentication method to be used (Example: Open, WEP-Shared, WPA -
PSK, WPA2 - PSK, WPA/WPA2 - PSK)
WPA Encryption: Encryption method currently used
WEP Key Type: Type of WEP security (only applicable when WEP authentication is used)
WEP Key Index: 1-4 (only applicable when WEP authentication is used)
Key: The encryption key
Note: For a 64-bit key, keys are 5 character strings long if WEP Key Type is set to ASCII
and 10 hexadecimal digits long if WEP Key Type is set to HEX.
For a 128-bit key, keys are 13 character strings long if WEP Key Type is set to ASCII and 26
hexadecimal digits long if WEP Key Type is set to HEX.
5.5.4.
WiFi (WLAN) – Stats

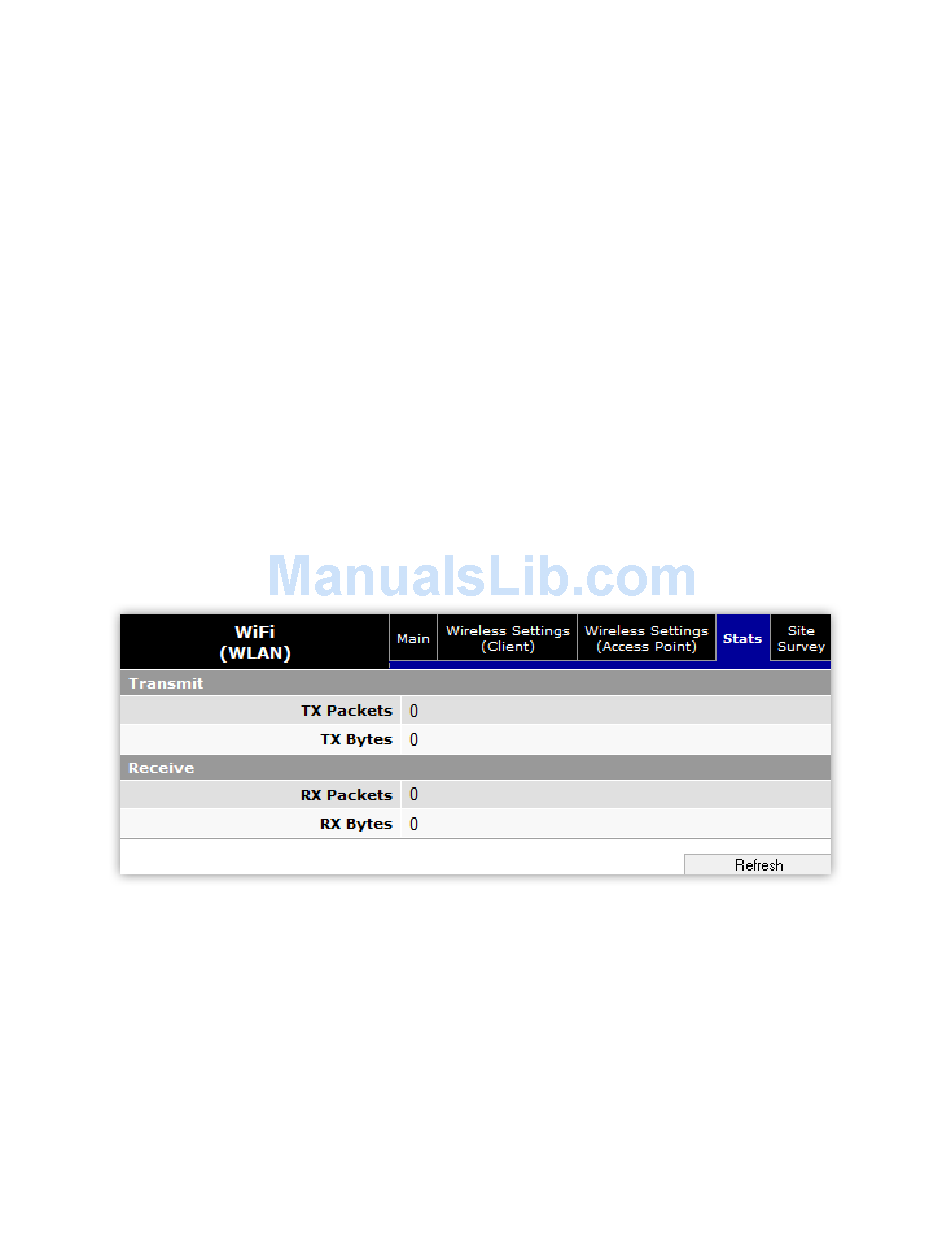

Figure 18 - WiFi (WLAN) -> Wireless Settings (Stats)
5.5.4.1.
Transmit
TX Packets: Number of packets sent by the L-5500 over the WiFi interface
TX Bytes: Number of bytes sent by the L-5500 over the WiFi interface
5.5.4.2.
Receive
RX Packets: Number of packets received by the L-5500 over the WiFi interface
RX Bytes: Number of bytes received by the L-5500 over the WiFi interface
Page 32
