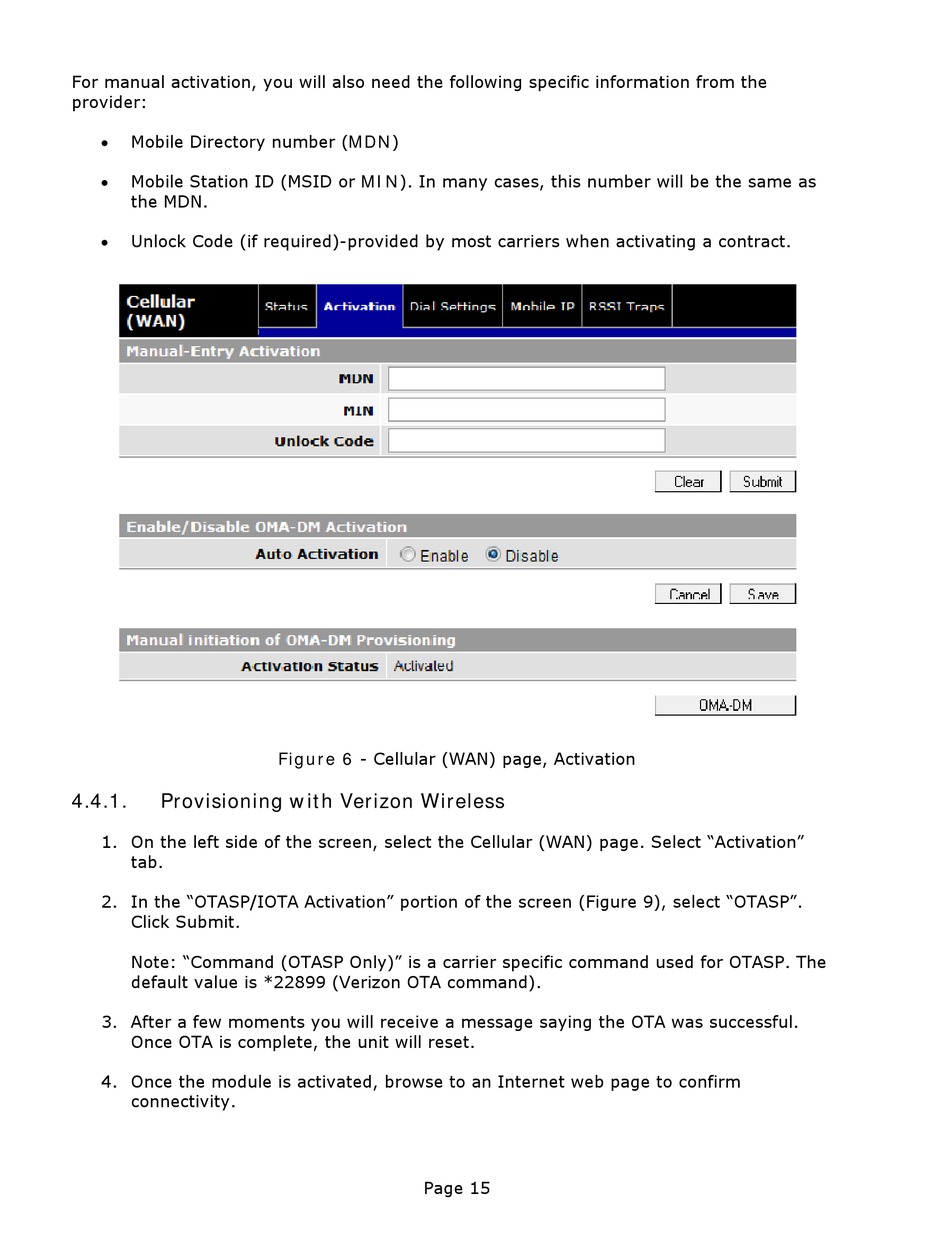

Provisioning With Verizon Wireless - Logic Data Systems L-5500 Manual

For manual activation, you will also need the following specific information from the
provider:
 Mobile Directory number (MDN)
 Mobile Station ID (MSID or MIN). In many cases, this number will be the same as
the MDN.
 Unlock Code (if required)-provided by most carriers when activating a contract.
4.4.1.

Provisioning with Verizon Wireless

1. On the left side of the screen, select the Cellular (WAN) page. Select "Activation"
tab.
2. In the "OTASP/IOTA Activation" portion of the screen (Figure 9), select "OTASP".
Click Submit.
Note: "Command (OTASP Only)" is a carrier specific command used for OTASP. The
default value is *22899 (Verizon OTA command).
3. After a few moments you will receive a message saying the OTA was successful.
Once OTA is complete, the unit will reset.
4. Once the module is activated, browse to an Internet web page to confirm
connectivity.
Figure 6 - Cellular (WAN) page, Activation
Page 15
