On the network setting page of each PC, set the IP address, subnet mask, and default
gateway.
5.4.1.5.
Static IP Setup
If your network requires each PC to have a statically set LAN IP addresses, follow the
previous procedure for all PCs on the network. If the network requires a mix of static and
dynamically assigned IP addresses, assign static IPs outside the DHCP address range for
PCs that require static IP addresses and allow the L-5500 radio modem DHCP to assign the
remaining PC IP addresses.
5.5.

WiFi (WLAN)

An L-5500 unit can operate in an access point mode or client mode.
In access point mode, the L-5500 radio modem offers wireless tether. It forwards local WiFi
traffic to application servers over the cellular network and works in parallel with Ethernet
connection, providing for simultaneous WiFi and Ethernet connections.
In client mode the L-5500 unit can automatically switch between cellular and WiFi
connections providing for seamless handover when coupled with modern applications.
5.5.1.

WiFi (WLAN) - Main

WiFi settings provide user configuration for optional WiFi interface operation.

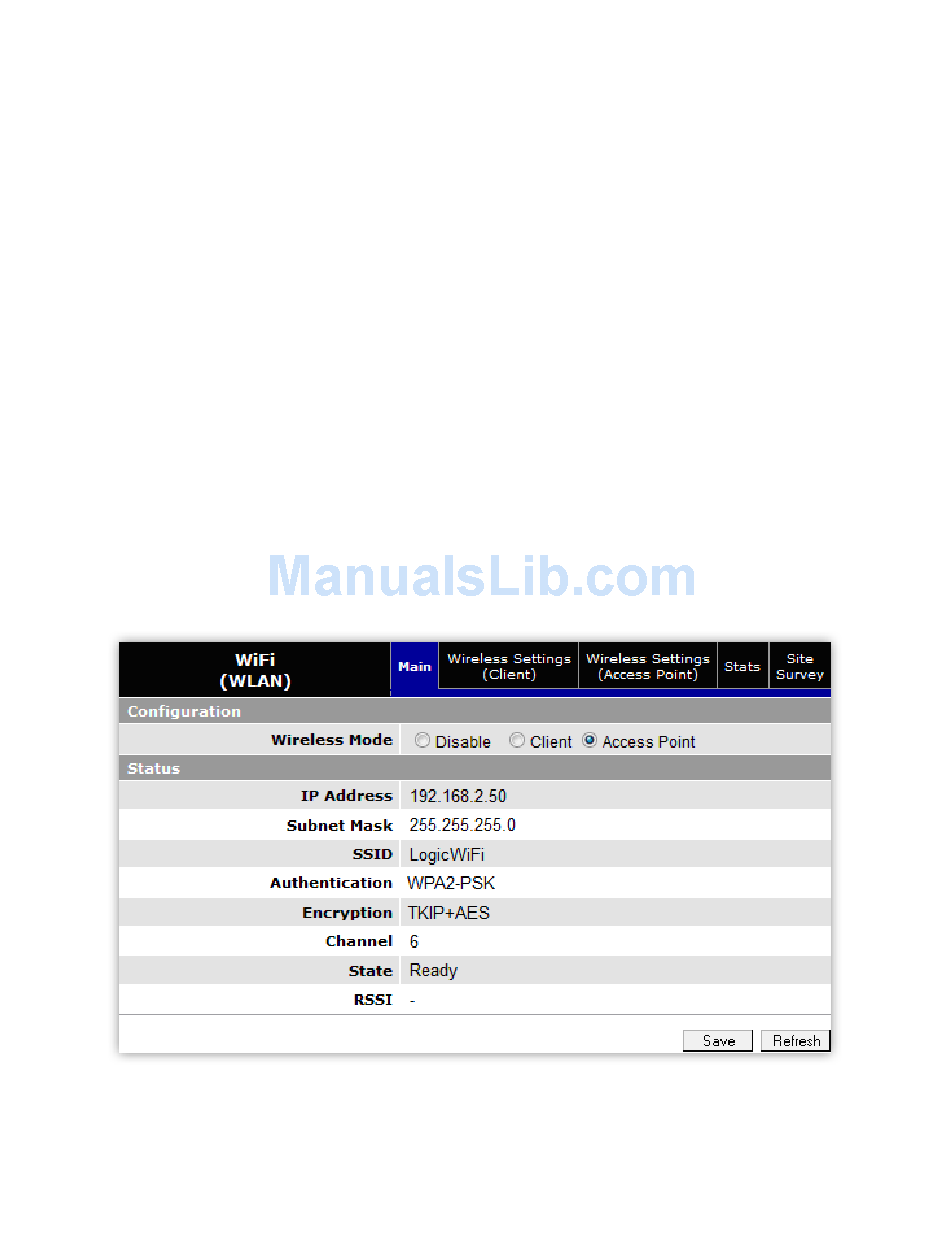

Figure 15 - WiFi (WLAN) -> Status
Page 28
