Sensors Reported: The number of sensors to be reported when a position report is
transmitted. Changing this number hides or displays selection options for the available
sensors.
Data Source: Sensor value for reporting to remote server (using Logic Data Systems
protocol).
 Battery Voltage (V): The power supply voltage of the modem (also the vehicle's
battery voltage when installed in a vehicle).
 Cellular Module Temperature (°C): Temperature of the cellular module in the
modem.
 Analog Input 1: Voltage on the analog input #1 pin of the I/O port.
 Analog Input 2: Voltage on the analog input #2 pin of the I/O port.
Multiplier: Value to multiply the sensor reading before transmission. When a sensor value
is read, it can be scaled and offset prior to transmission to allow for per-vehicle calibration
adjustments.
Offset: Value by which a sensor reading should be adjusted after scaling by the multiplier.
When a sensor is read, the value is first multiplied by the Multiplier, then added to by the
Offset before being transmitted.

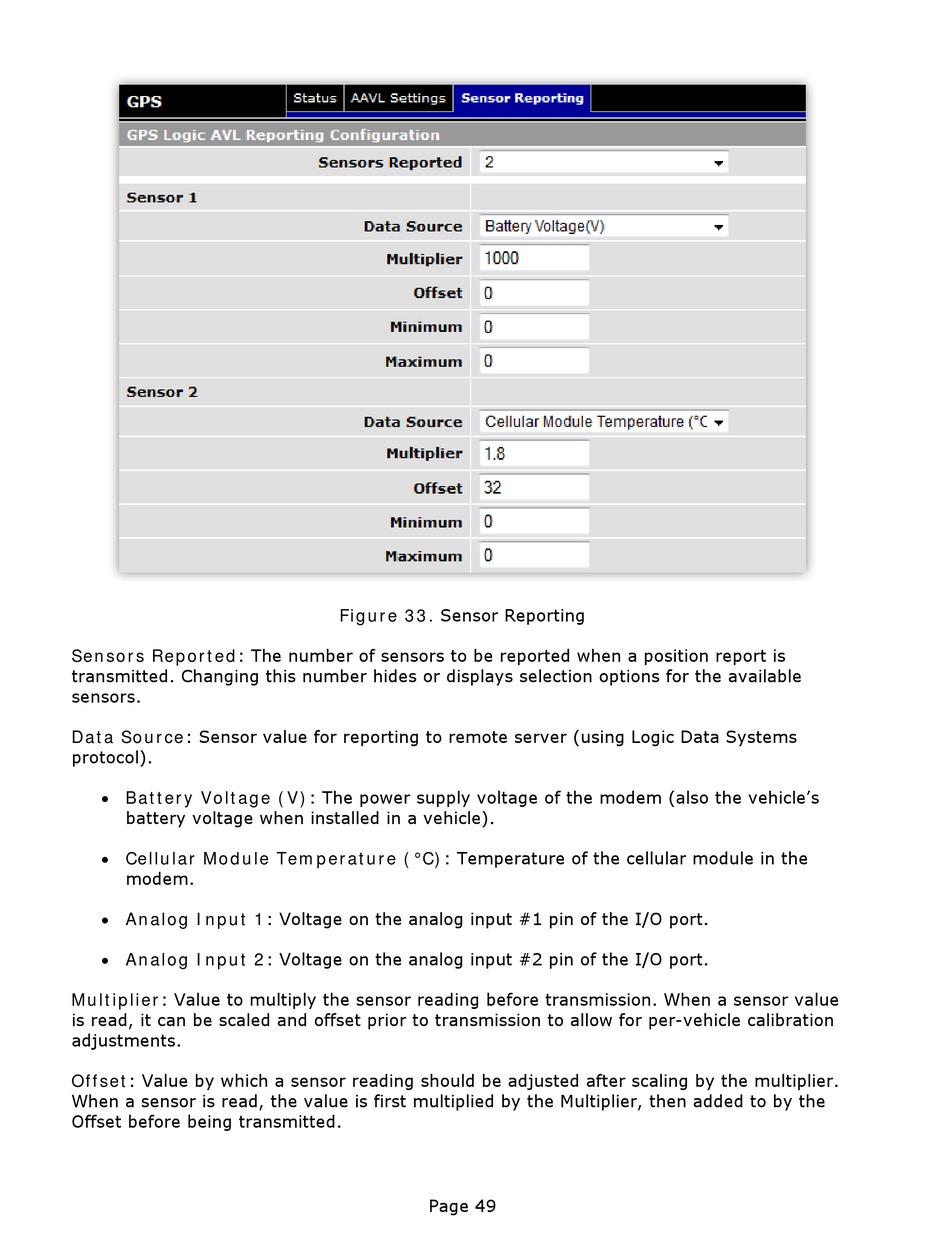

Figure 33. Sensor Reporting
