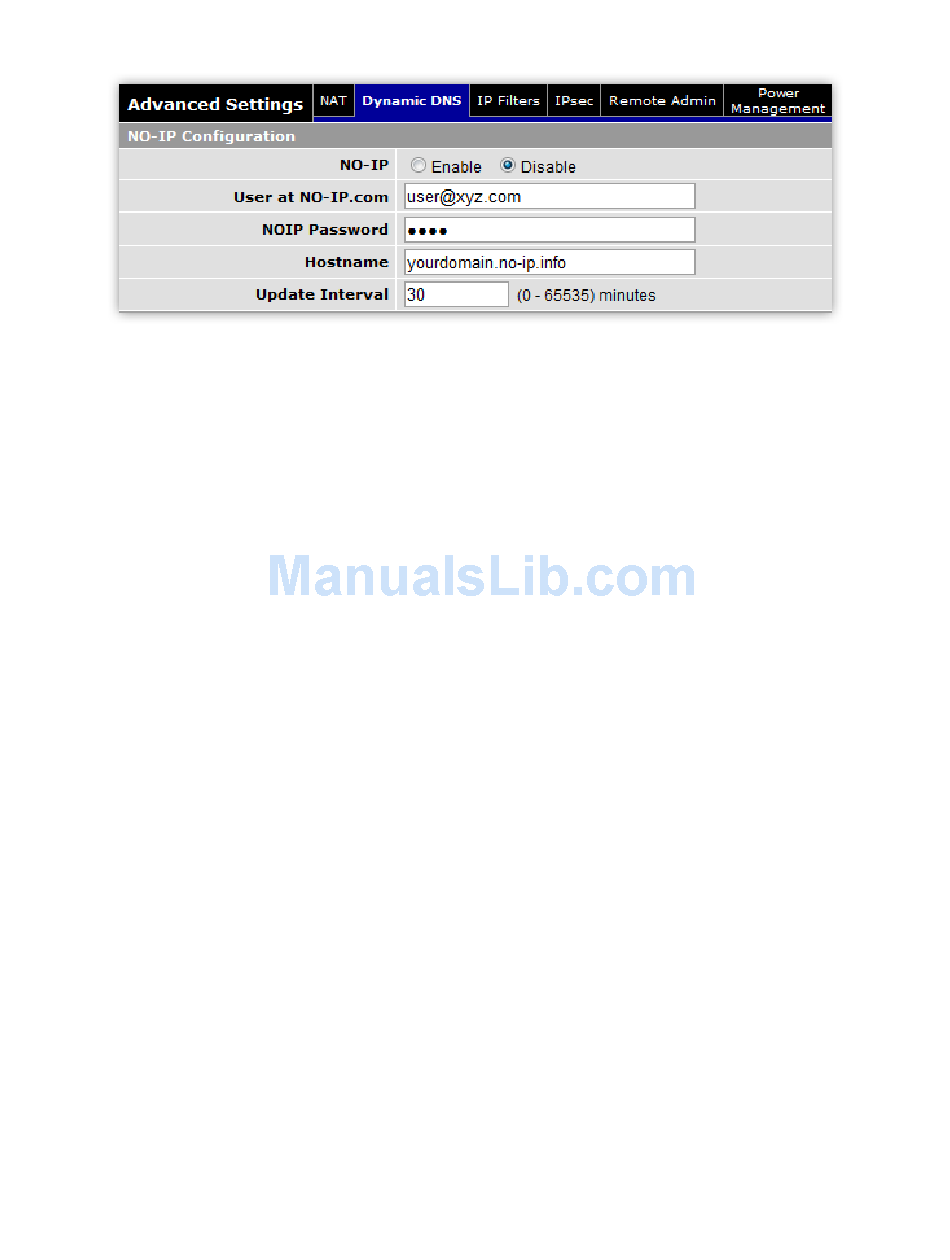

Figure 23 – Dynamic DNS (NO-IP Configuration) Setup Screen
NO-IP: Enable / Disable (disabled by default)
User at NO-IP.com: User name setup at NO-IP.com. This information is required when
logging into your account.
NOIP Password: Password used when logging into your account at NO-IP.
Hostname: This is unique domain name setup on your NO-IP account. This is the domain
name entered into a browser to remotely login to the L-5500 radio modem. You may have
multiple host names registered on the same account. See section below for instructions to
set up NO IP account and host name.
IMPORTANT NOTE:
Do not assign more than one L-5500 unit the same domain name.
Update Interval: This setting determines how often the device will update its IP
information at NO-IP. The IP addresses assigned by the carrier are dynamic; therefore it is
necessary to update the registered IP periodically. Setting a high value in this field may
cause extended periods of no connection but will reduce the number of times the L-5500
registers, decreasing the amount data used on the contract. Setting a low value minimizes
the chance of lost network connection but will increase the total amount of data used on the
contract.
The L-5500 radio modem will always register when first powered up or upon hardware
reset.
5.7.2.1.
Instructions for NO IP Setup
1. Setup up an account at NO-IP.com http://www.no-ip.com/. You will need to setup a
user name and password on your account
2. On No-IP, create a host account for each device you want to remotely monitor. The
domain name you set up here will be used to remotely login to the device.
3. On the L-5500 radio modem, click "Dynamic DNS" on the left side of the web
Browser.
Page 37
