Logic Data Systems L-5500 Manual page 42

5.7.3.2. Add Custom IP Filters
Fill in the parameters described below and click "Add ...". Your entry should appear in the
Custom IP Filters table on the bottom of the page.

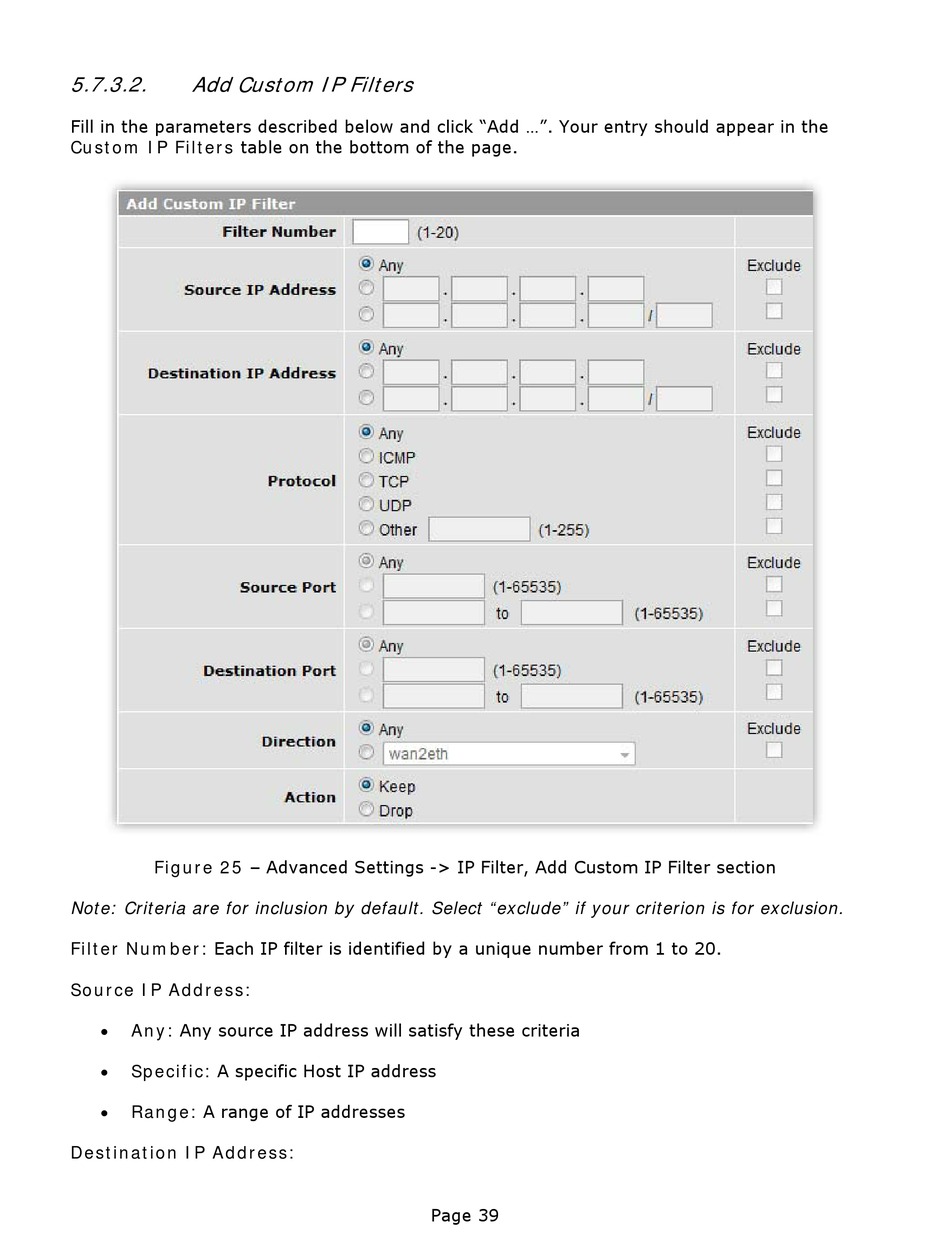

Figure 25 – Advanced Settings -> IP Filter, Add Custom IP Filter section
Note: Criteria are for inclusion by default. Select "exclude" if your criterion is for exclusion.
Filter Number: Each IP filter is identified by a unique number from 1 to 20.
Source IP Address:
 Any: Any source IP address will satisfy these criteria
 Specific: A specific Host IP address
 Range: A range of IP addresses
Destination IP Address:
Page 39
