5.7.3.3.
Delete Custom IP Filters

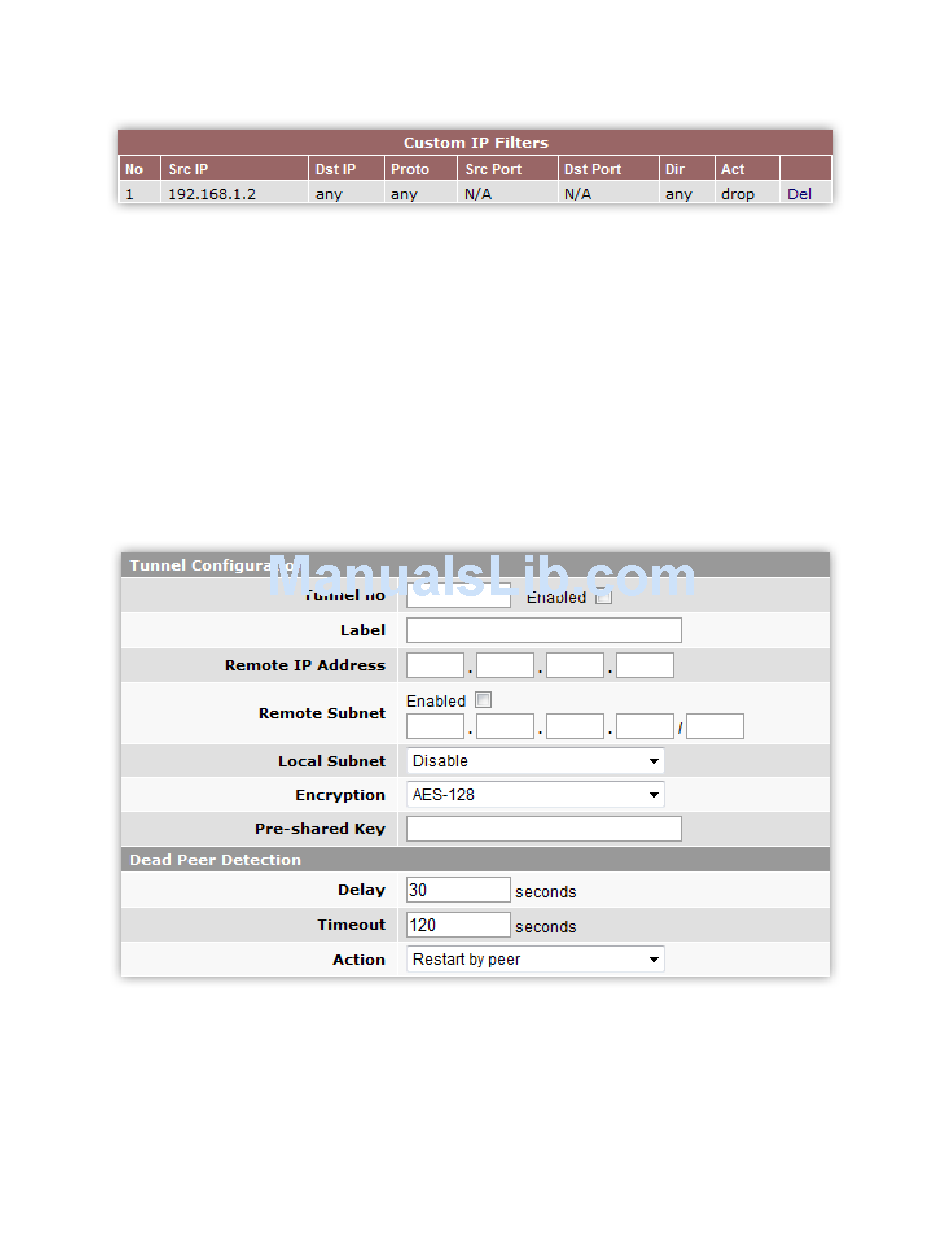

Figure 26 – Advanced Settings -> IP Filters, Custom IP Filters table
Click the Del link to delete the corresponding filter entry.
5.7.4.
Advanced Settings – IPsec
5.7.4.1.
IPsec Support
Selecting Enable will launch the IPSEC process and start all the enabled set tunnels.
Selecting Disable will stop all tunnels and shutdown the main process. All the enabled
tunnels will be launched automatically when the unit connects to the cellular carrier.
5.7.4.2.
IPsec Configuration
Figure 27 – Advanced Settings -> IPsec, Tunnel Configuration section
Tunnel no: Tunnel number, start at 1 and increment for each new tunnel. If you want to
modify an existing tunnel, use its number from the table below. The Enabled checkbox will
enable autostart directly after you saved the tunnel.
Label: This is a convenience label used to differentiate tunnels easily.
Page 41
