5.4.

LAN Settings

The LAN Settings page contains the basic configuration information required to customize
your LAN with the L-5500 radio modem as the network connection point. User configuration
will primarily occur on this page.
5.4.1.

IP Settings

5.4.1.1.
IP Configuration
Ethernet IP address: LAN IP of the L-5500 radio modem. This address is entered into a
browser on a local PC when logging into the L-5500 radio modem home page. To decrease
the chances of unwanted access, this value should be changed from its default prior to use.
IMPORTAT NOTE:
Changing this value will cause you to lose connection to the L-5500 unit. Enter
the new address in the browser to reconnect. If you forget an address or make a
mistake entering the new value, it may be difficult to reconnect to the device.
Ethernet Subnet Mask: The Subnet mask is used in conjunction with the Ethernet IP
address to partition the address into the network (subnet) portion and the host portion. This

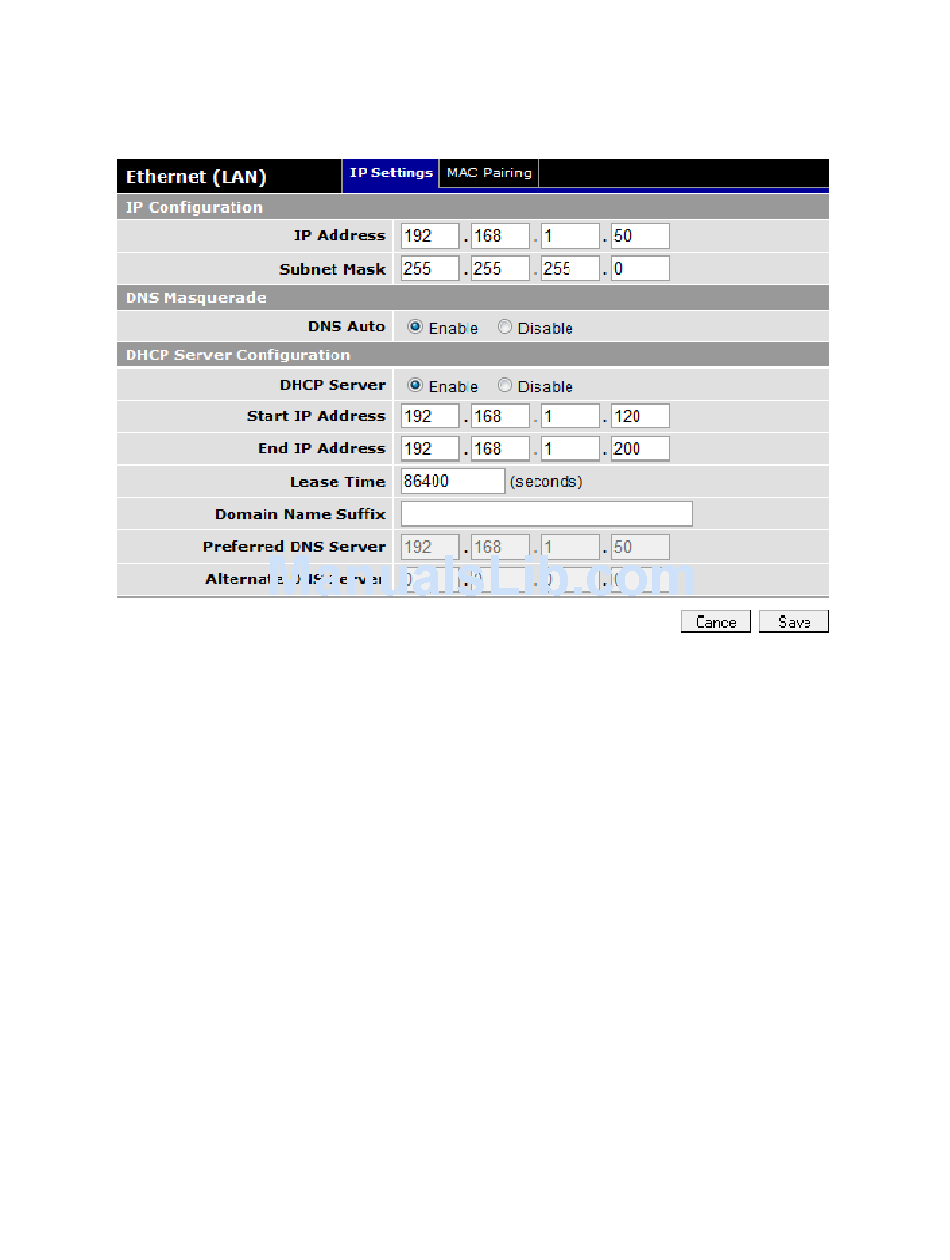

Figure 14 - LAN Settings Page
Page 26
