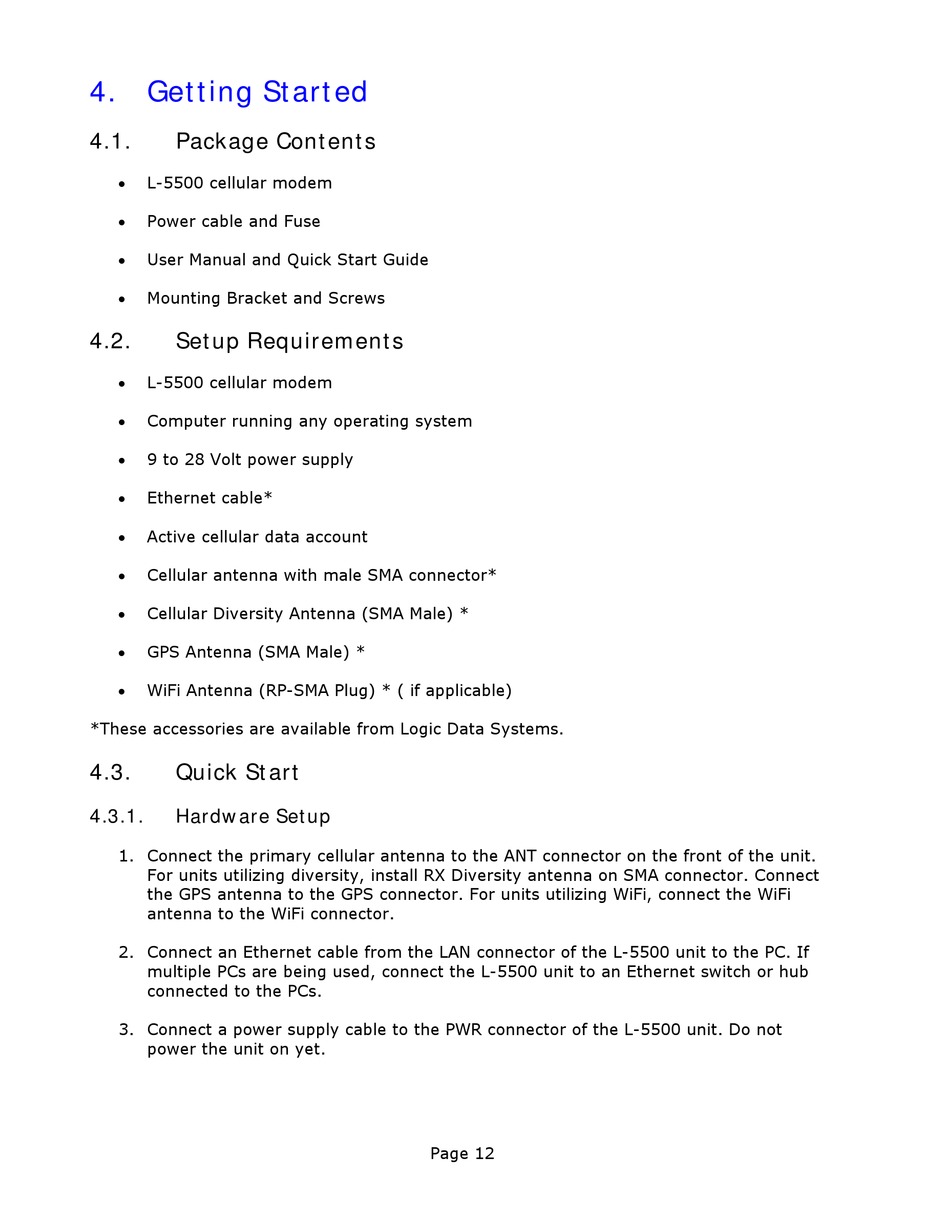

4.

Getting Started

4.1.

Package Contents

 L-5500 cellular modem
 Power cable and Fuse
 User Manual and Quick Start Guide
 Mounting Bracket and Screws
4.2.

Setup Requirements

 L-5500 cellular modem
 Computer running any operating system
 9 to 28 Volt power supply
 Ethernet cable*
 Active cellular data account
 Cellular antenna with male SMA connector*
 Cellular Diversity Antenna (SMA Male) *
 GPS Antenna (SMA Male) *
 WiFi Antenna (RP-SMA Plug) * ( if applicable)
*These accessories are available from Logic Data Systems.
4.3.

Quick Start

4.3.1.

Hardware Setup

1. Connect the primary cellular antenna to the ANT connector on the front of the unit.
For units utilizing diversity, install RX Diversity antenna on SMA connector. Connect
the GPS antenna to the GPS connector. For units utilizing WiFi, connect the WiFi
antenna to the WiFi connector.
2. Connect an Ethernet cable from the LAN connector of the L-5500 unit to the PC. If
multiple PCs are being used, connect the L-5500 unit to an Ethernet switch or hub
connected to the PCs.
3. Connect a power supply cable to the PWR connector of the L-5500 unit. Do not
power the unit on yet.
Page 12
