2-18 Compaq StorageWorks Fibre Channel Storage Hub 12 Installation Guide
Writer: Susan Caesar Project: Compaq StorageWorks Fibre Channel Storage Hub 12 Installation Guide Comments:
Part Number: 340662-002 File Name: c-ch2 Overview of Installing the Compaq StorageWorks Fibre Channel Storage Hub 12.doc Last Saved
2. Verify that the top green GBIC LEDs illuminate on all ports where
GBIC Modules are installed.

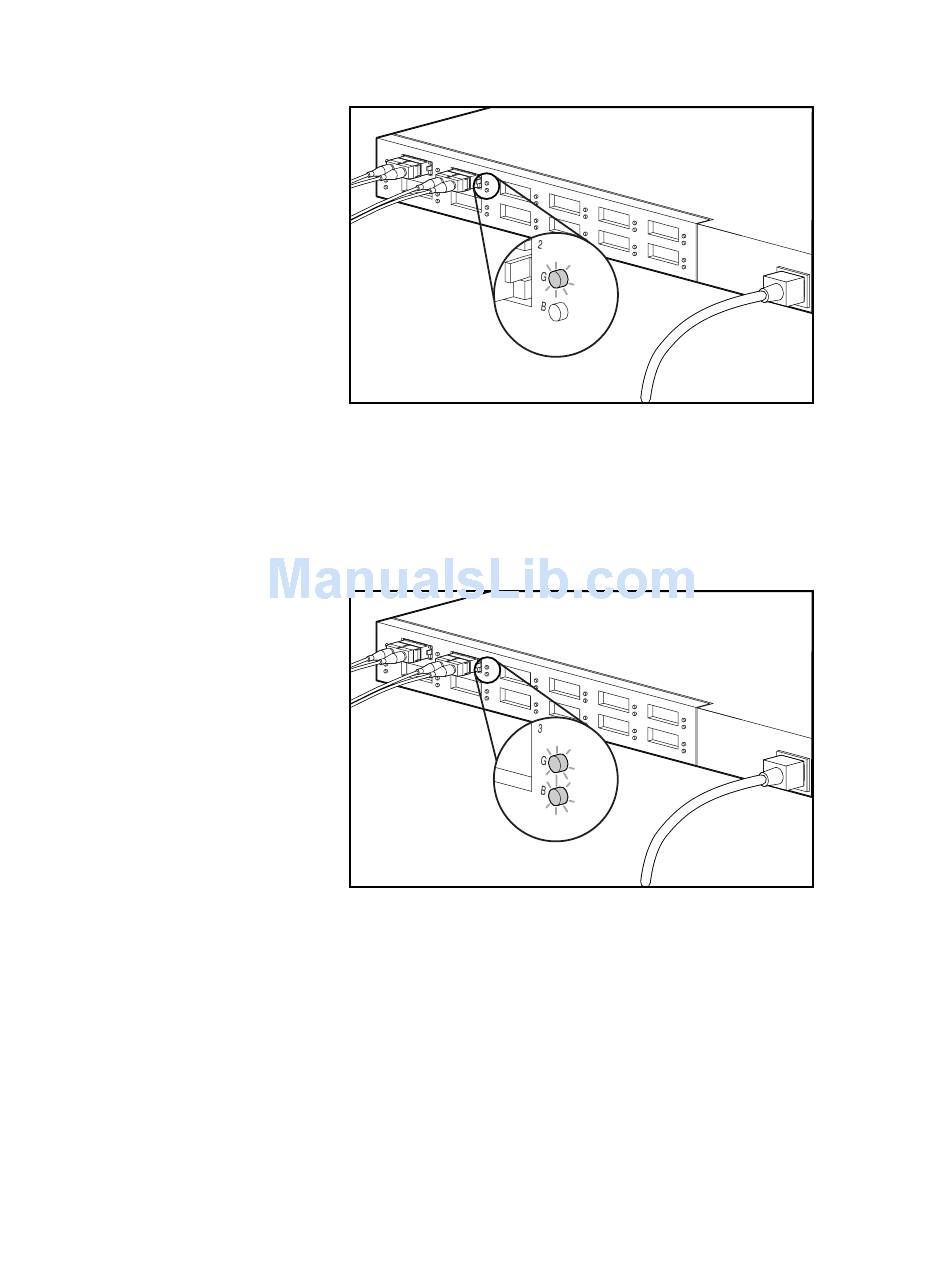

Figure 2-17. Checking the GBIC LEDs
3. Verify that the bottom amber Bypass Port LEDs illuminate on all
connected ports that are not participating on the loop. For example, Port
2 in the figure below is not participating in the loop. Ports that do not
detect valid FC-AL links will be bypassed automatically. To be a valid
link, both ends of the cable must be connected to active, powered, FC-
AL devices.
Figure 2-18. Bypass Port 2 LED illuminates when port is not participating on
the loop
Compaq Confidential – Need to Know Required
On: 4/16/99 8:19 AM
