Overview of Installing the Compaq StorageWorks Fibre Channel Storage Hub 12 2-9
After sliding the hub in place, the front of the hub chassis will sit
approximately 6 inches (15 cm) from the front of the rack.

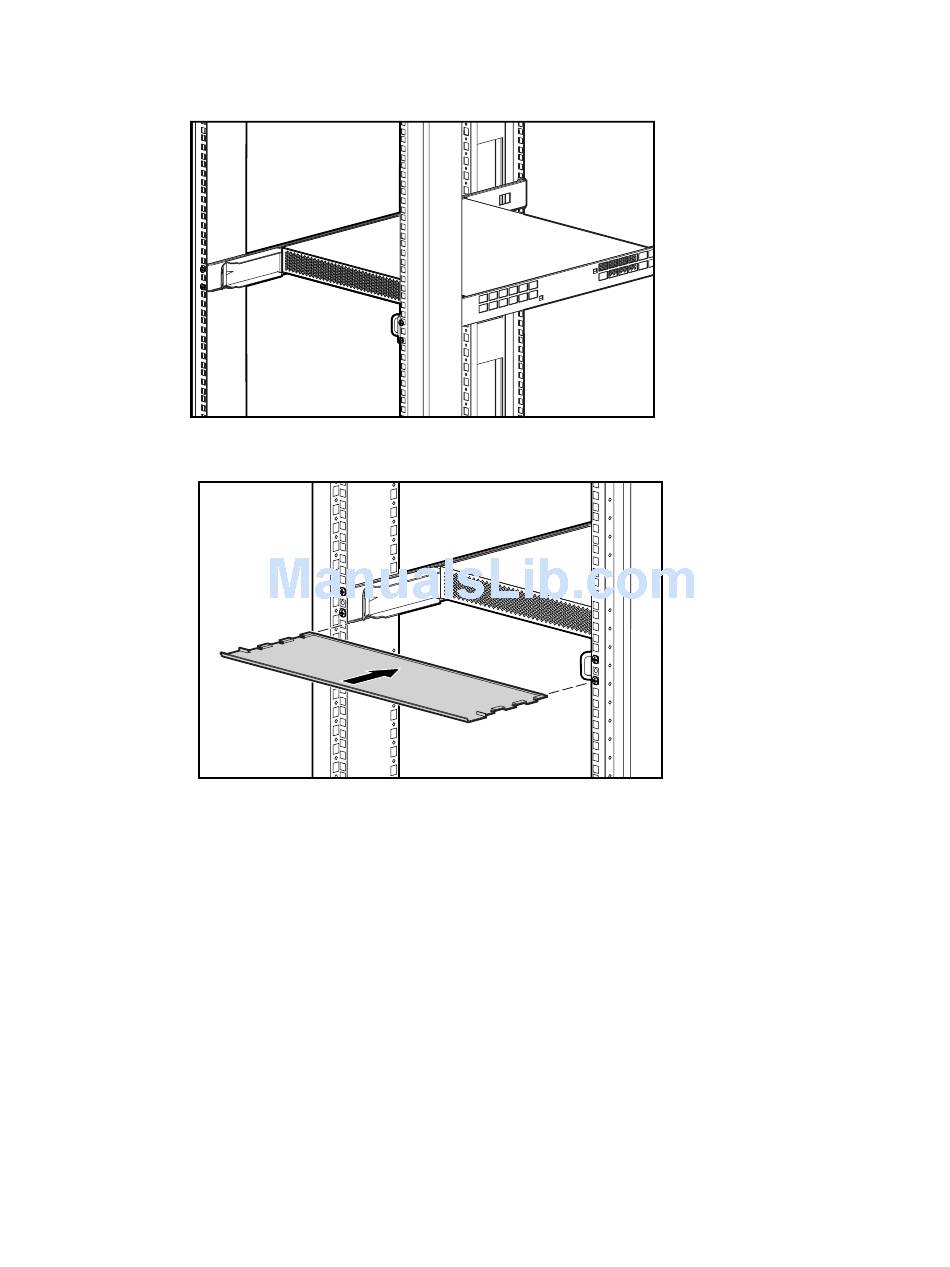

Figure 2-7. Hub loaded in the rack
3. Install the bottom air baffle.
Figure 2-8. Installing the bottom air baffle
