2-10 Compaq StorageWorks Fibre Channel Storage Hub 12 Installation Guide
Writer: Susan Caesar Project: Compaq StorageWorks Fibre Channel Storage Hub 12 Installation Guide Comments:
Part Number: 340662-002 File Name: c-ch2 Overview of Installing the Compaq StorageWorks Fibre Channel Storage Hub 12.doc Last Saved
4. Install the top air baffle.

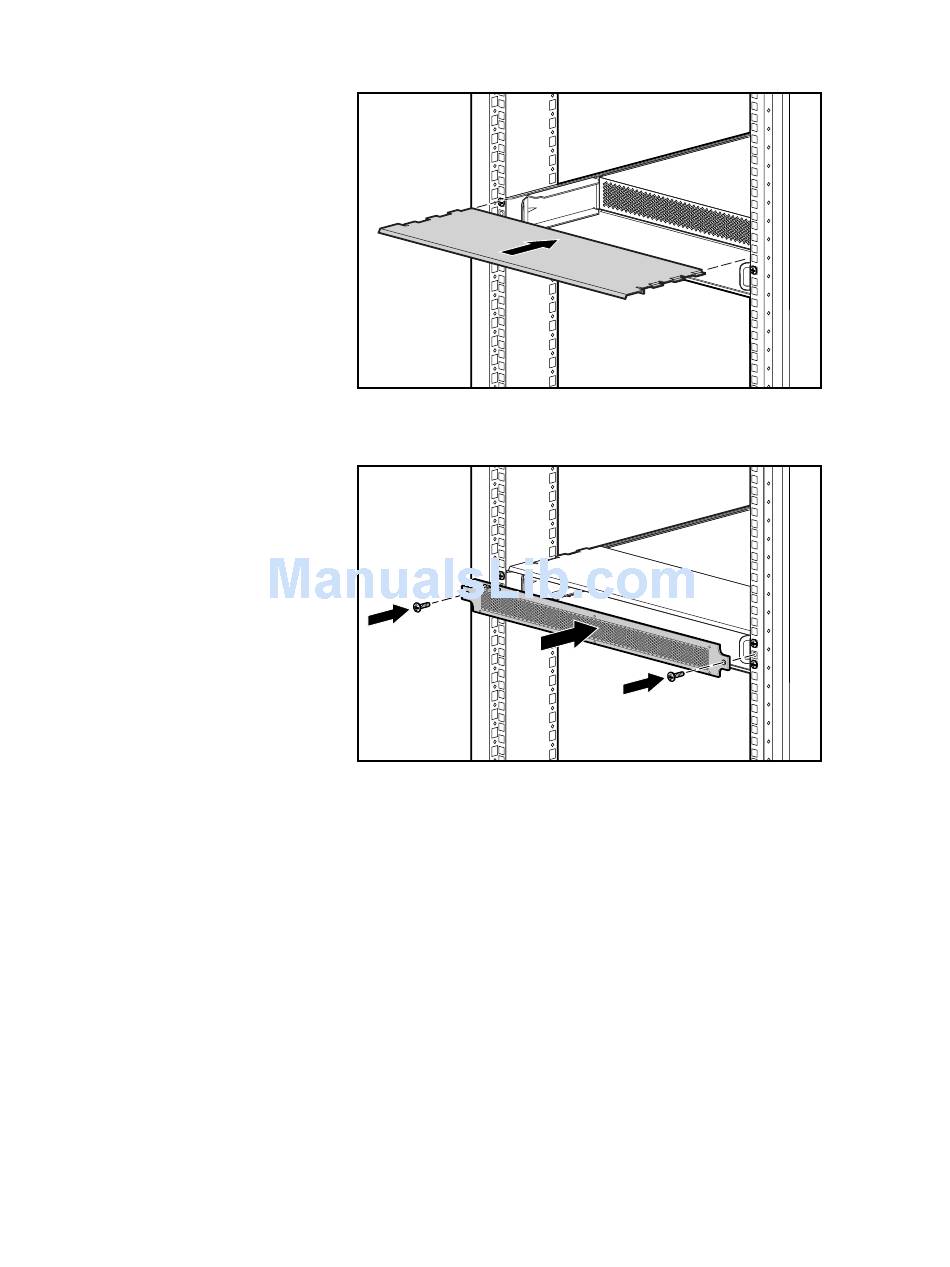

Figure 2-9. Installing the top air baffle
5. Install the 1U faceplate with two M6 x 1.0-12L Phillips screws.
Figure 2-10. Installing the 1U faceplate
Compaq Confidential – Need to Know Required
On: 4/16/99 8:19 AM
