2-16 Compaq StorageWorks Fibre Channel Storage Hub 12 Installation Guide
Writer: Susan Caesar Project: Compaq StorageWorks Fibre Channel Storage Hub 12 Installation Guide Comments:
Part Number: 340662-002 File Name: c-ch2 Overview of Installing the Compaq StorageWorks Fibre Channel Storage Hub 12.doc Last Saved

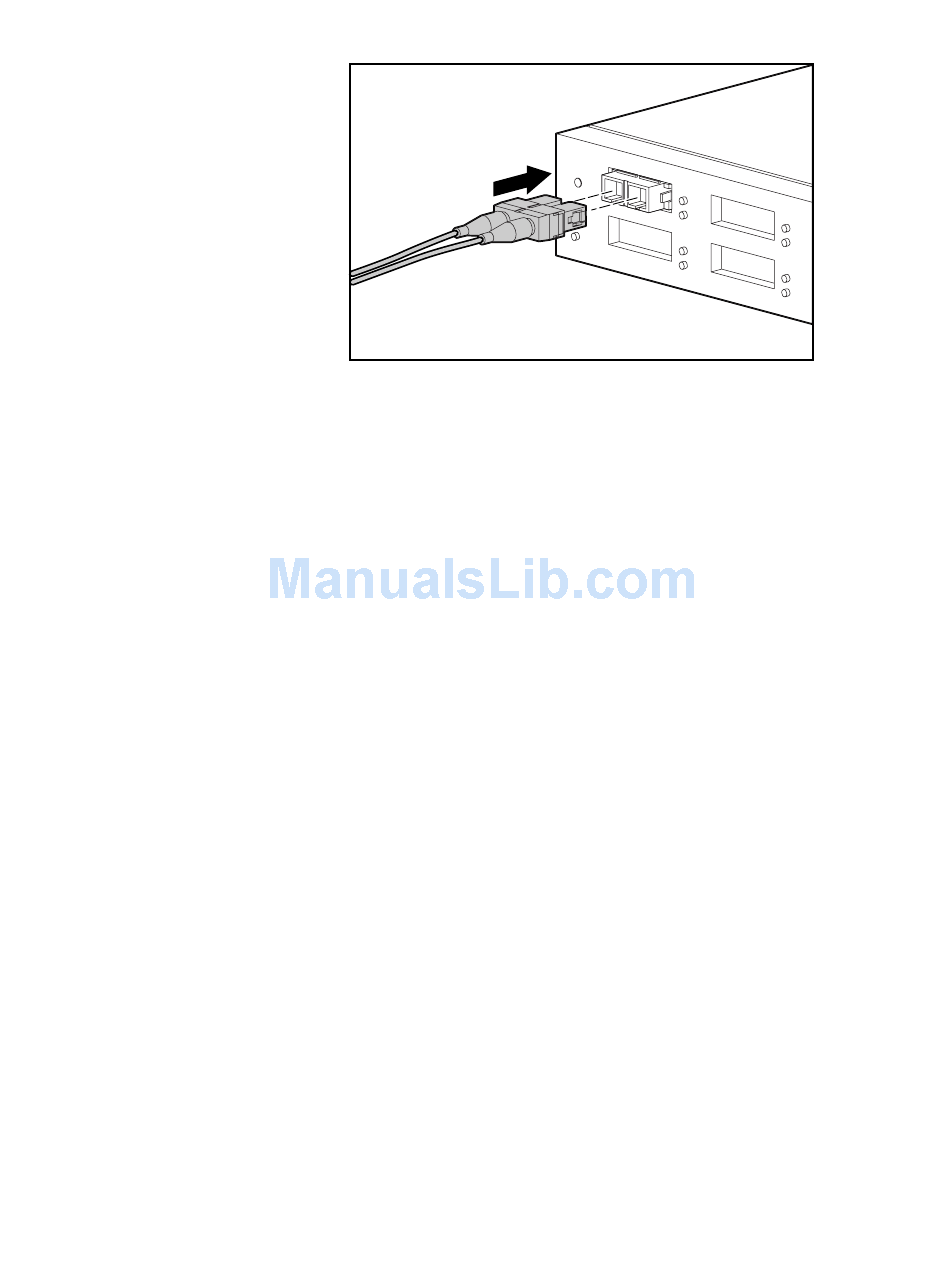

Figure 2-15. Installing a Fibre Channel cable
3. Continue to install GBIC Modules and Fibre Channel Cables for all active
port connections.
4. Provide support, with user-supplied tie-wraps, for the installed cables so as
not to have a bend radius of less than 3 inches.
5. Route the cable(s) to prevent damage from sharp edges or from being
crushed by nearby equipment.
Compaq Confidential – Need to Know Required
On: 4/16/99 8:19 AM
