2-8 Compaq StorageWorks Fibre Channel Storage Hub 12 Installation Guide
Installing the Hub into the Rack
Writer: Susan Caesar Project: Compaq StorageWorks Fibre Channel Storage Hub 12 Installation Guide Comments:
Part Number: 340662-002 File Name: c-ch2 Overview of Installing the Compaq StorageWorks Fibre Channel Storage Hub 12.doc Last Saved
1. After installing the rack mounting hardware, carefully align the hub's
chassis slide rails with the rack mounting rails and begin sliding the hub
into the rack.
CAUTION: Be sure to keep the component parallel to the floor when sliding the
component rails into the rack mounting rail. Tilting the component up or down
could result in damage to the rails.
2. Continue to slide the hub into the rack until the latches on the front of the
slide rails engage with their alignment holes on the mounting rails. You will
know they are engaged when you hear a "clicking" noise.

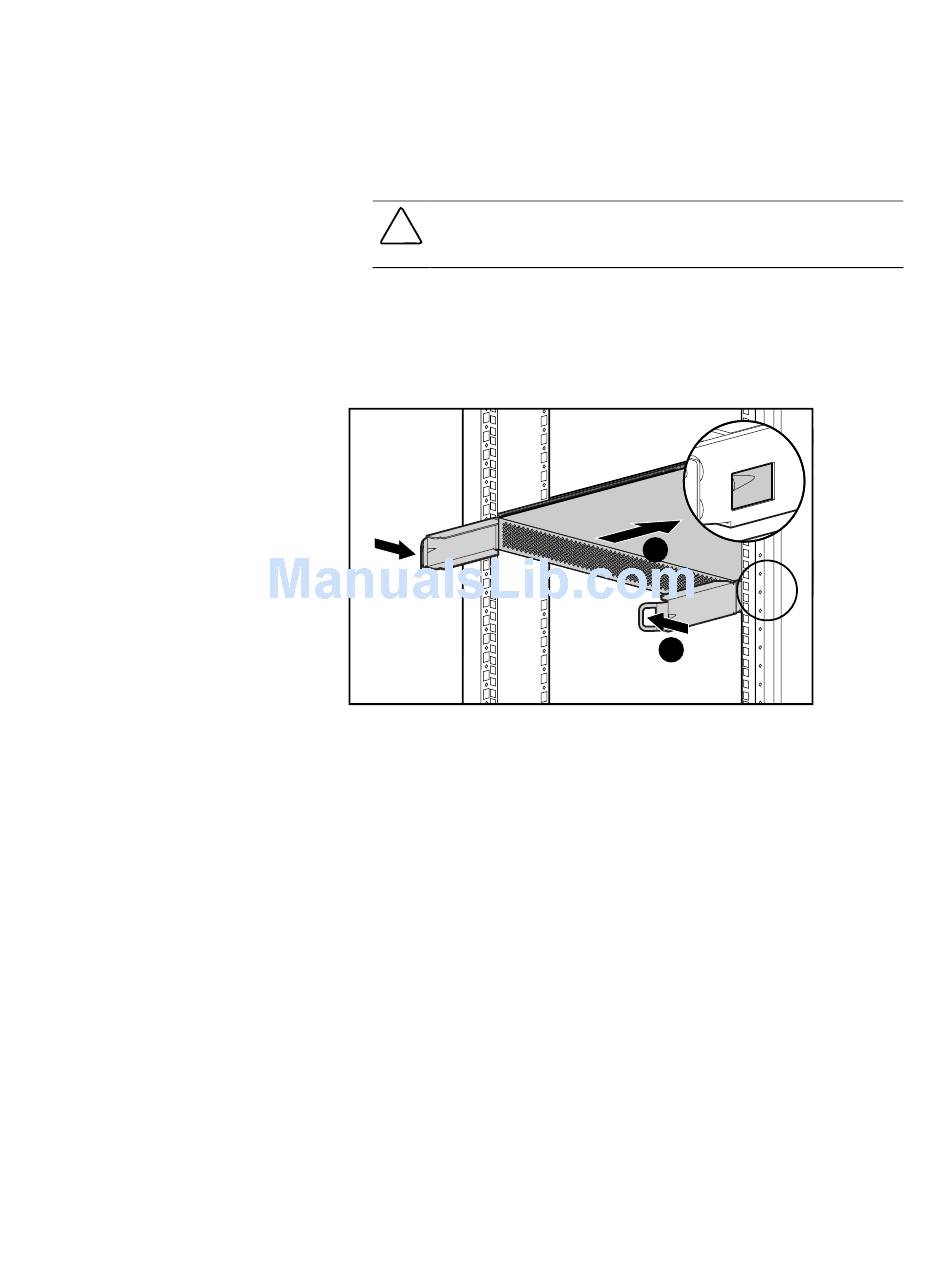

Figure 2-6. Loading the Hub in the rack
Compaq Confidential – Need to Know Required
On: 4/16/99 8:19 AM
1
2
