Polaris Sportsman 700 Efi 2005 Service Manual page 52

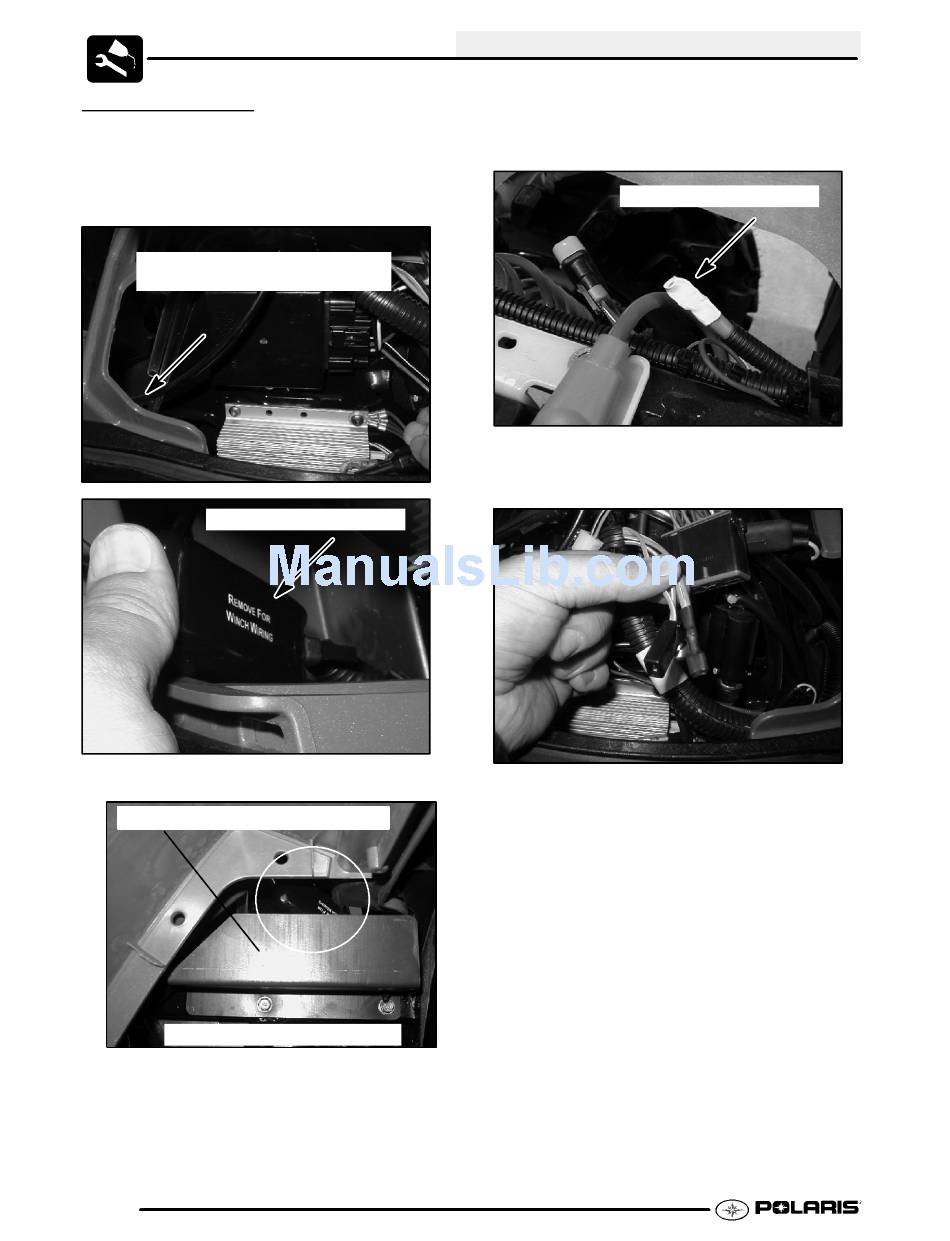

Winch Wire Locations
The winch wires can be located under the front cab
area. Locate the wires, remove the cap and hook up
to winch the Blue and Yellow (6 Ga.) wires to the
winch. Refer to the installation instructions for more
details.
Winch Connecting Wires Located
Under Right Front Cab Area
Winch Connecting Wires
or
Contactor mounts for Splash Guard
Pic of quick connect and locations
Under Right Side Front Fender
2.34
The Red wire (6 Ga.) with the yellow crimp cover is
located under the left rear fender next to the starter
solenoid. The red wire connects to the battery.
Winch Connecting Wires
The Orange/White wires are located under the front
cover (under headlight pod). The Orange/White wires
supply the control power to the winch.
MAINTENANCE
