MAINTENANCE

ENGINE OIL LEVEL

The 700 engine is a wet--sump engine, meaning the
oil is contained in the bottom of the crankcase. To
check the oil level:

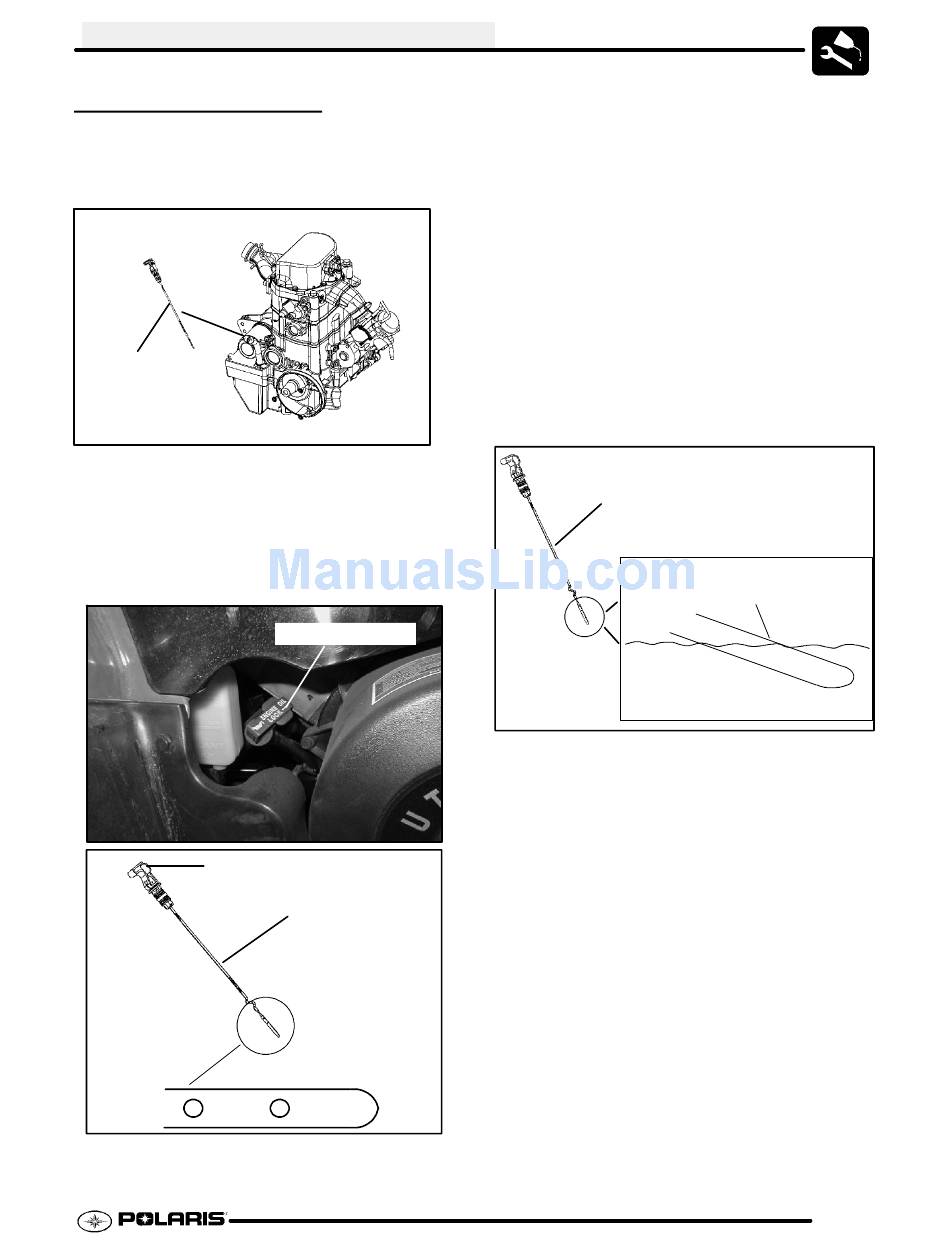

Dipstick
Ill.1
1. Set machine on a level surface.
2. Be sure the machine has sat for awhile before
removing the dipstick. Do not run the machine
and then check the dipstick.
3. Unlock the lever lock.(Ill. 2) Remove dipstick and
wipe dry with a clean cloth.
Lever Lock
SAFE
Ill.2
Dipstick Location
Dipstick
ADD 8 OZ
4. Reinstall dipstick and push it into place. Do not
lock the dipstick.
NOTE: Make certain the dipstick is inserted all the
way into the filler tube to keep the angle and depth of
stick consistent. When reinstalling the dipstick, make
certain to seat the lever lock.
5. Remove dipstick and check to see that the oil
level is in the normal range. Add oil as indicated
by the level on the dipstick. Do not overfill. (See
NOTE below!)
NOTE: Due to the dipstick entry angle into the
crankcase, the oil level will read higher on the bottom
side of the dipstick.
determined on the upper surface of the dipstick as it
is being removed, regardless of the level marks being
on top or on bottom. (See the next illustration)
Dipstick
Always read top side of dipstick to
properly check oil level in crankcase
NOTE: A rising oil level between checks in cool
weather driving can indicate contaminants such as
gas or moisture collecting in the crankcase. If the oil
level is over the full mark, change the oil immediately.
Proper level indication is
2.23
