Connecting your external devices

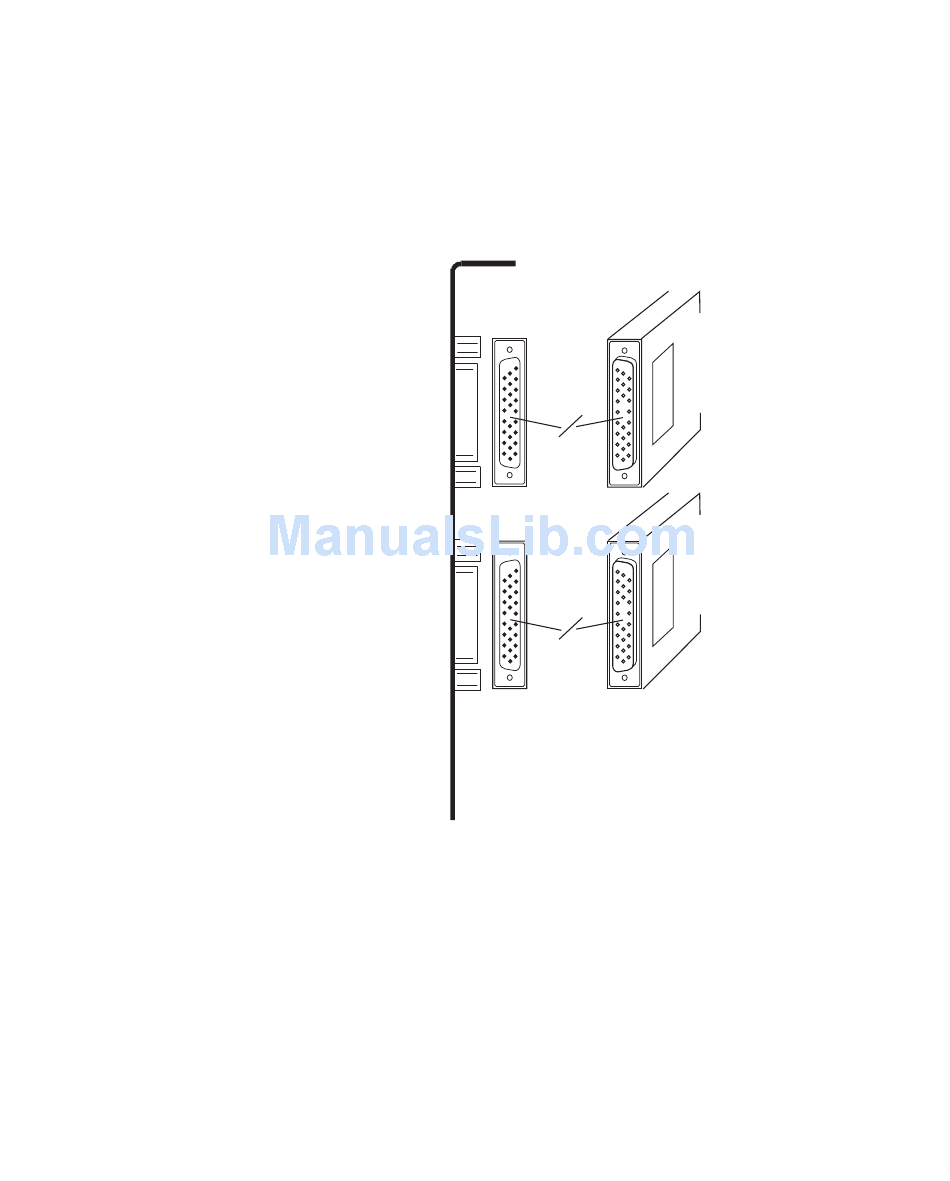

As shown in the following diagram, pin position 14 has been blocked off
with a key plug on both DigiDesktop bracket connectors. Consequently,
pin 14 is missing on both DigiDesktop video cables. This has been done to
ensure that your external devices are properly connected when installing
DigiDesktop with other DigiSuite cards.
DigiDesktop
video bracket
connectors
14
14
Connecting your external devices
43
DigiDesktop
video cable
connectors
