TriMedia Module), simply remove the screws holding the bracket in place
and then carefully remove the bracket.
In the case of DigiDesktop with the TriMedia Module, however, the PCI
retainer bracket also acts as a spacer between the base circuit board and the
TriMedia Module. With this in mind, we supply you with two metal
spacers plus four extra screws.
To remove the DigiDesktop PCI retainer bracket:
1

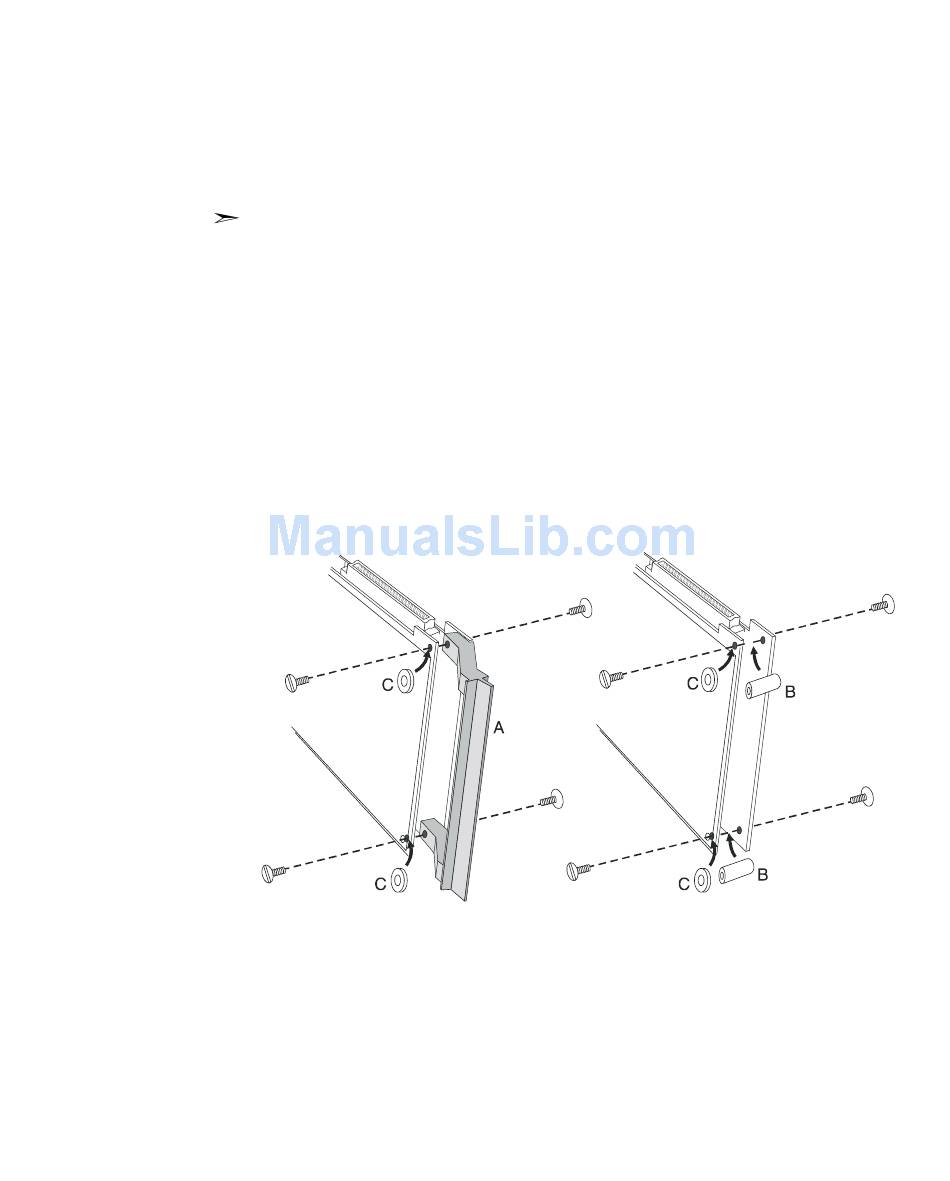

Remove the four screws and two nylon washers (C) that fasten the PCI
retainer bracket (A) and carefully extract the bracket from between the
DigiDesktop base circuit board and TriMedia Module. To do so, you
may have to loosen the screw located in the top left corner of the
TriMedia Module (not shown). Make sure you do this by loosening the
corresponding screw on the backside of the DigiDesktop base board.
Do not loosen the screw on the TriMedia Module itself as it holds the
insulating mylar (transparent protective sheet) in place.
2
Carefully insert the two large metal spacers (B) and nylon washers (C),
align both with the screw holes in the DigiDesktop base circuit board
and TriMedia Module, and carefully fasten them with the four
provided screws.
Use the PCI retainer brackets
