Connector overview

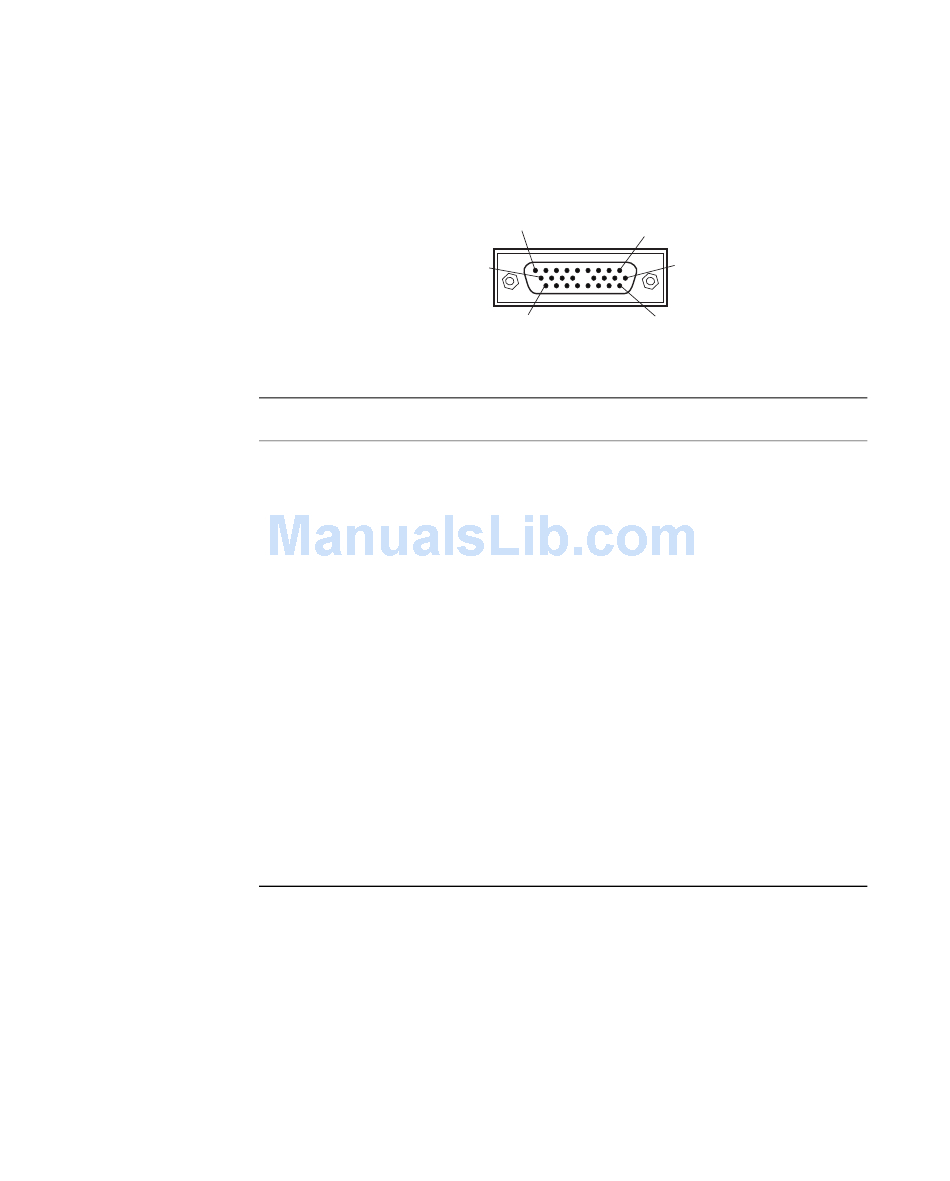

Bracket connector (on card)

HD-26 female connector.
.
# Signal
1. RED_VIDEO
3. BLUE_VIDEO
5. MONITOR_ID1 (SDA)
7. MONITOR_ID2
9. VCC
11. GREEN_GND
13. GND
15. Y0_CVBS0_GND
17. Y1_CVBS1_GND
19. H_SYNC
21. V_SYNC
23. MONITOR_ID0
25. MONITOR_ID3 (SCL)
9
10
26
# Signal
2. GREEN_VIDEO
4. GND
6. Y0_CVBS0
8. Y1_CVBS1
10. RED_GND
12. BLUE_GND
14. (Key plug)
16. C0_CVBS2_GND
18. C1_CVBS3_GND
20. H_SYNC_GND
22. V_SYNC_GND
24. C0_CVBS2
26. C1_CVBS3
1
18
19
Connector overview
