Appendix A, DigiDesktop Cables and Connectors

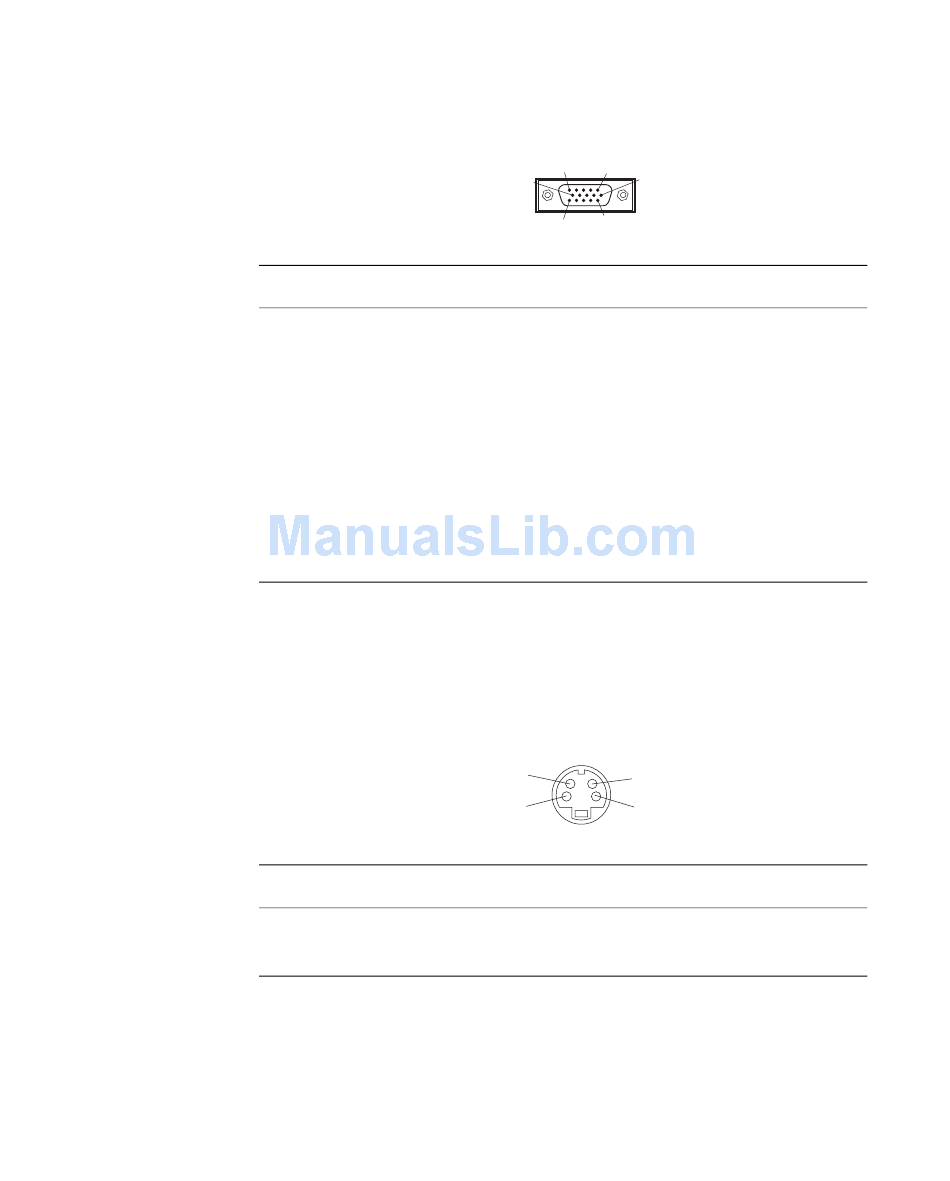

VGA monitor cable output

HD-15 female connector.
# Signal
1. RED_VIDEO
3. BLUE_VIDEO
5. GND
7. GREEN_GND
9. VCC
11. MONITOR_ID0
13. H_SYNC
15. MONITOR_ID3 (SCL)

Y/C (S-Video) cable input

4-pin mini-DIN male Y/C connector.
# Signal
1. LUMA_GND
3. LUMA
5 1
10 6
15 11
# Signal
2. GREEN_VIDEO
4. MONITOR_ID2
6. RED_GND
8. BLUE_GND
10. SYNC_GND
12. MONITOR_ID1 (SDA)
14. V_SYNC
3
4
1 2
# Signal
2. CHROMA_GND
4. CHROMA
