Configuring the video input signals

Chapter 4, Configuring DigiDesktop

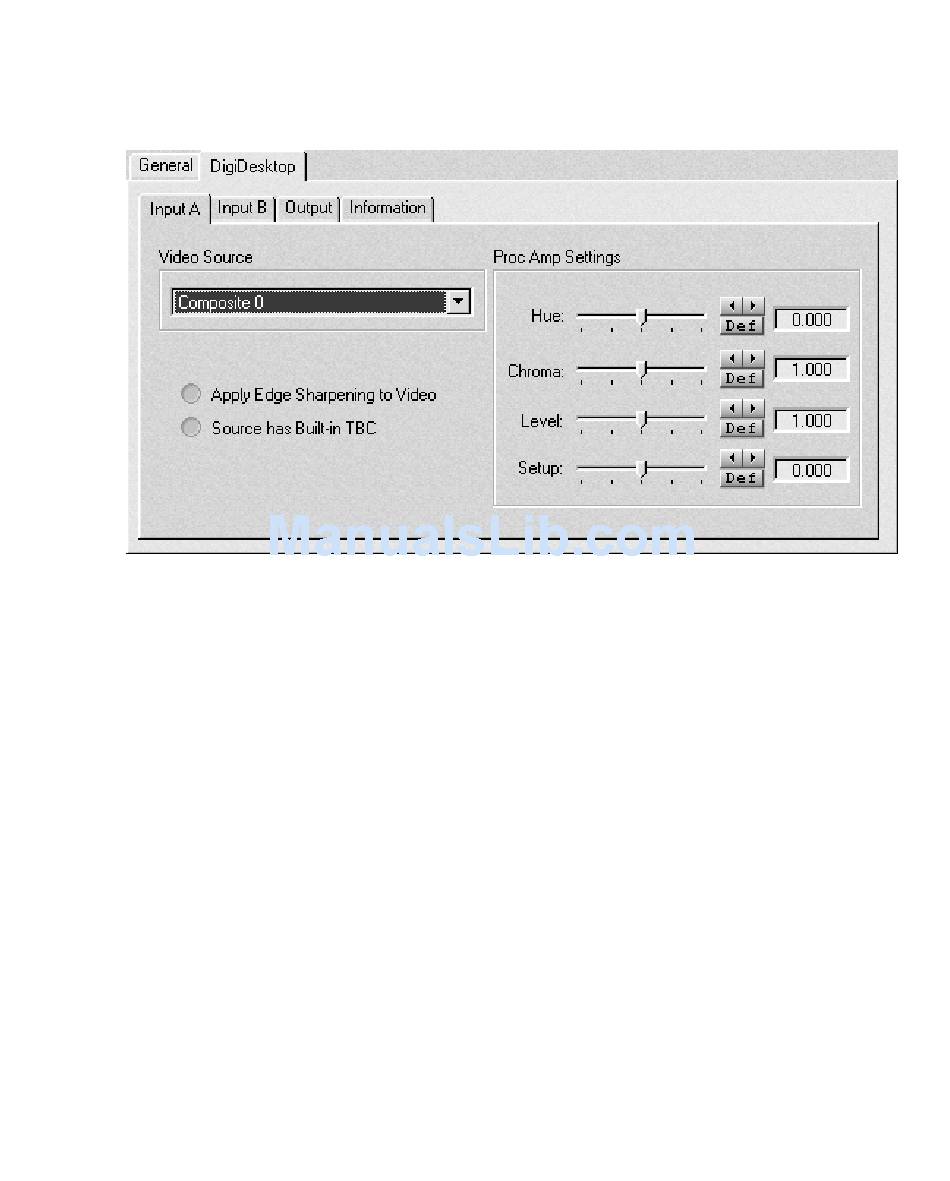

To select a default video source and configure your video input signals,
click the
DigiDesktop
q
Video Source Use this list to select which video input to use from
the DigiDesktop connectors. For example, select
use the Y/C device connected to cable 1 for the specified input source
(either Input A or Input B).
q
Proc Amp Settings
amps for your incoming video signal. To obtain a precise setting for a
control, click its left or right arrow instead of dragging the slider. To
return a control to its factory default setting, click its
click the slider.
SHIFT+
–
Adjusts the tint of the colors in the picture.
Hue
–
Adjusts the vividness (saturation) of the picture's colors.
Chroma
–
Adjusts the difference in luminance between the lightest and
Level
darkest areas of the picture.
–
Setup Adjusts the level of black in the picture.
q
Apply Edge Sharpening to Video
sharpen the edges in your picture. The edge sharpening is done by
amplifying the high frequency component of the video input's
luminance signal. Be aware that selecting this option may reduce the
clarity of fine details in your image.
tab, then the
Input A
Use these controls to adjust the default proc
Select this option to slightly
or tab.
Input B
Y/C (S-Video) 1
button or
Def
to
