2.10.10 Configure the Multicast Parameters

The Multicast Configuration page allows the device to join up to ten paging zones for receiving
ulaw/alaw encoded RTP audio streams.
A paging zone can consist of one or many CyberData multicast group-enabled products. There is no
limit to how many speakers can be in a given paging zone. Each multicast group is defined by a
multicast address and port number.
Each multicast group is assigned a priority, allowing simultaneously arriving pages to be serviced
based on importance. Multicast groups are compatible with IGMP through version 3. The device
supports simultaneous SIP and Multicast.
1. Click on the Multicast Configuration button to open the Multicast Configuration page. See
Operations Guide
Figure 2-21.

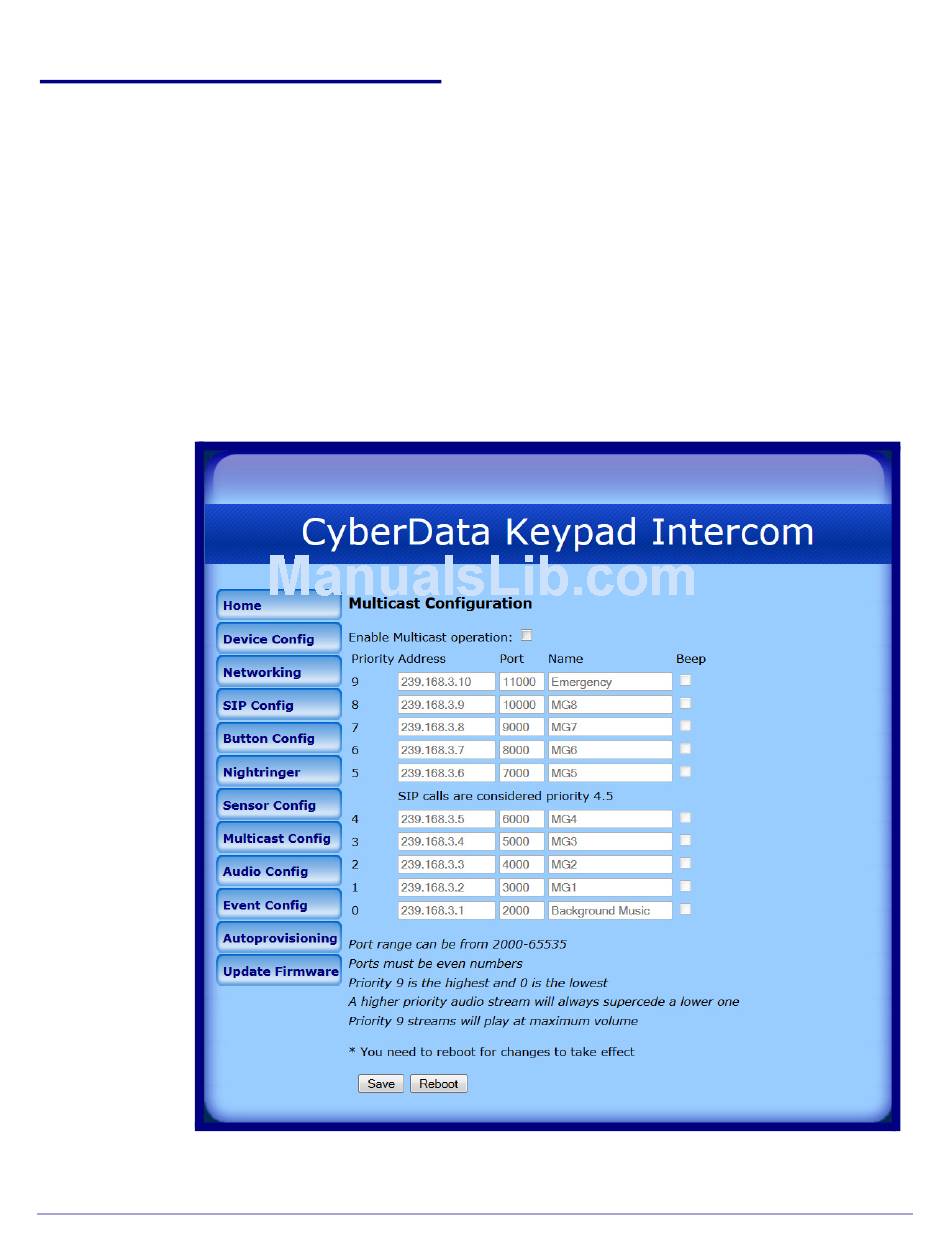

Figure 2-21. Multicast Configuration Setup
Installing the VoIP Indoor Intercom with Keypad
930915D
Intercom Setup
CyberData Corporation
43
