2. On the Device Configuration page, you may enter values for the parameters indicated in
Web Page Item
Volume Settings
SIP Volume
Multicast Volume
Ring Volume
Sensor Volume
Microphone Gain
No Volume Boost
Volume Boost 1
Volume Boost 2
Volume Boost 3
Relay Settings
Activate Relay with DTMF Code
DTMF Activation Code
DTMF Activation Duration (in seconds)
DTMF Activation Plays Tone
Activate Relay During Ring
Operations Guide
Table 2-7.

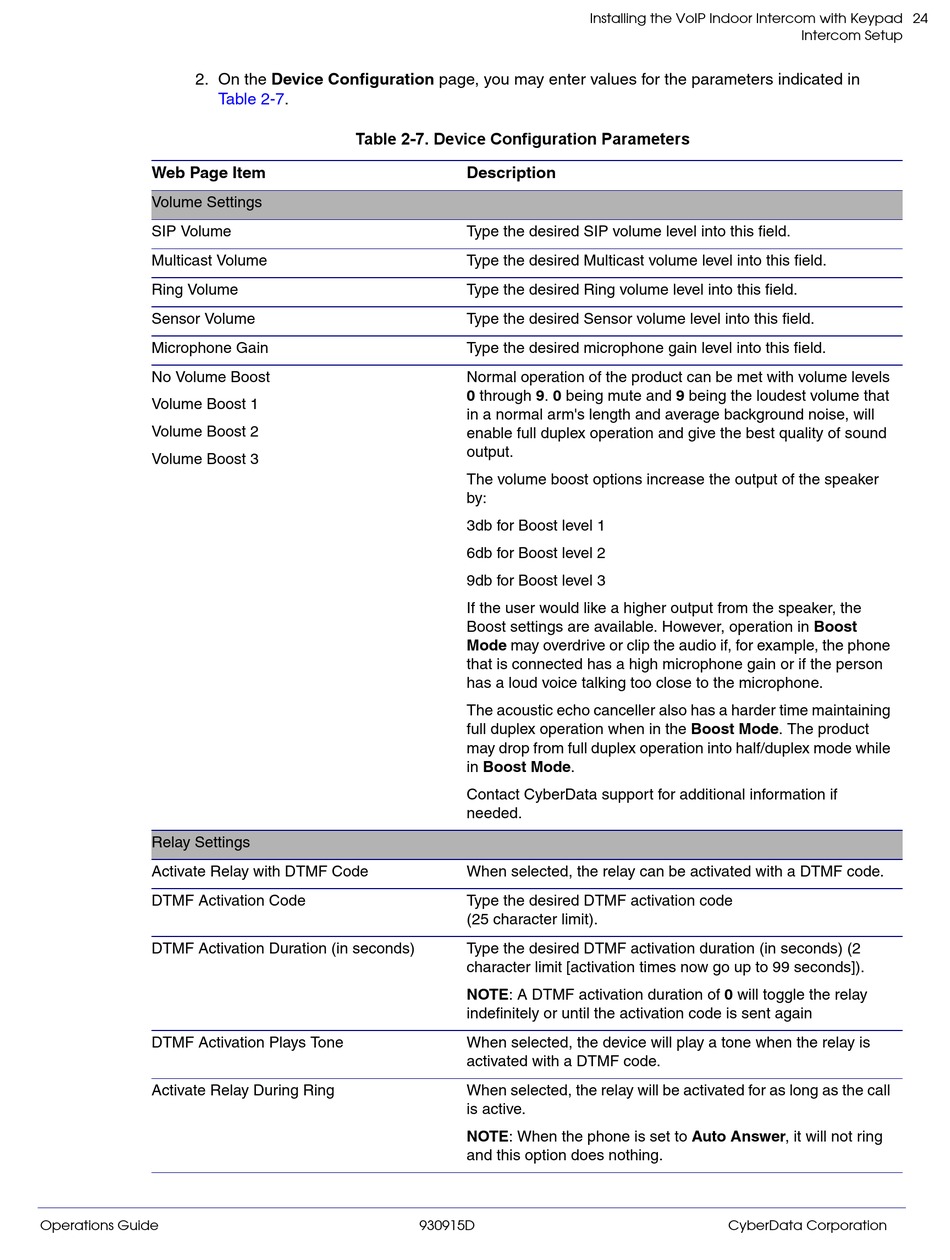

Table 2-7. Device Configuration Parameters
Installing the VoIP Indoor Intercom with Keypad
Description
Type the desired SIP volume level into this field.
Type the desired Multicast volume level into this field.
Type the desired Ring volume level into this field.
Type the desired Sensor volume level into this field.
Type the desired microphone gain level into this field.
Normal operation of the product can be met with volume levels
0 through 9. 0 being mute and 9 being the loudest volume that
in a normal arm's length and average background noise, will
enable full duplex operation and give the best quality of sound
output.
The volume boost options increase the output of the speaker
by:
3db for Boost level 1
6db for Boost level 2
9db for Boost level 3
If the user would like a higher output from the speaker, the
Boost settings are available. However, operation in Boost
Mode may overdrive or clip the audio if, for example, the phone
that is connected has a high microphone gain or if the person
has a loud voice talking too close to the microphone.
The acoustic echo canceller also has a harder time maintaining
full duplex operation when in the Boost Mode. The product
may drop from full duplex operation into half/duplex mode while
in Boost Mode.
Contact CyberData support for additional information if
needed.
When selected, the relay can be activated with a DTMF code.
Type the desired DTMF activation code 
(25 character limit).
Type the desired DTMF activation duration (in seconds) (2
character limit [activation times now go up to 99 seconds]).
NOTE: A DTMF activation duration of 0 will toggle the relay
indefinitely or until the activation code is sent again
When selected, the device will play a tone when the relay is
activated with a DTMF code.
When selected, the relay will be activated for as long as the call
is active.
NOTE: When the phone is set to Auto Answer, it will not ring
and this option does nothing.
