CyberData 011113 Operation Manual page 21

Operations Guide
J7 J6
J9
Connector Function
J2 Call Button LED Interface
J6 Microphone Interface
J7 Speaker Interface
J8 Keypad Interface
J9 Auxiliary Strobe Connector — Not Used
J10 Proximity Sensor Interface — Not Used
JP10 Disables the intrusion sensor when installed.
Note: Placing a jumper on JP10 will disable the intrusion
detection circuit.
Installing the VoIP Indoor Intercom with Keypad

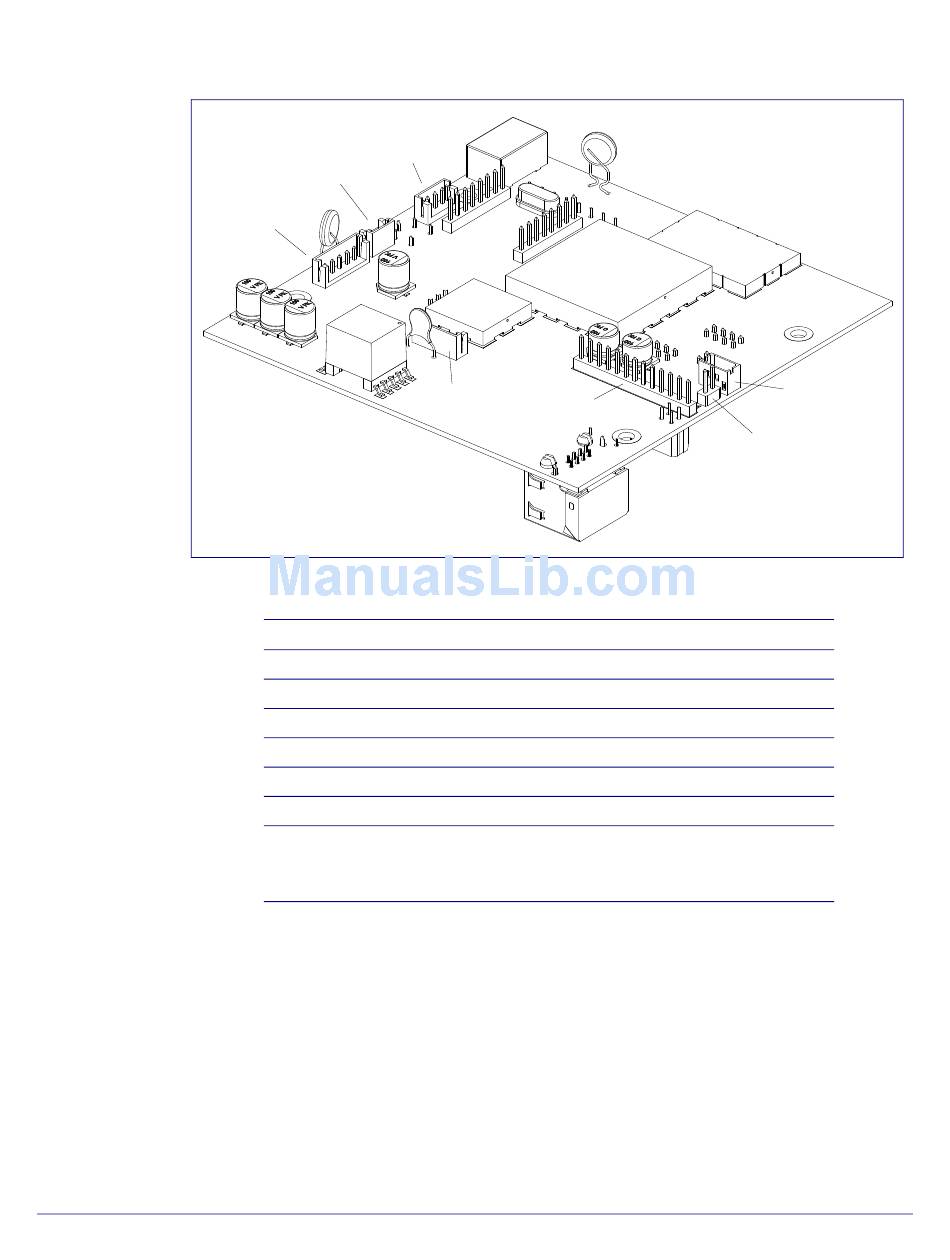

Figure 2-9. Connector Locations
J2 J8
Table 2-3. Connector Functions
930915D
Intercom Setup
J10
JP10
CyberData Corporation
14
