Web Page Item
Call Button
Security Dial Mode
Enable Security Keypad Operation
Relay Activation Timeout (in seconds)
Play Tone While Relay is Active
Operations Guide

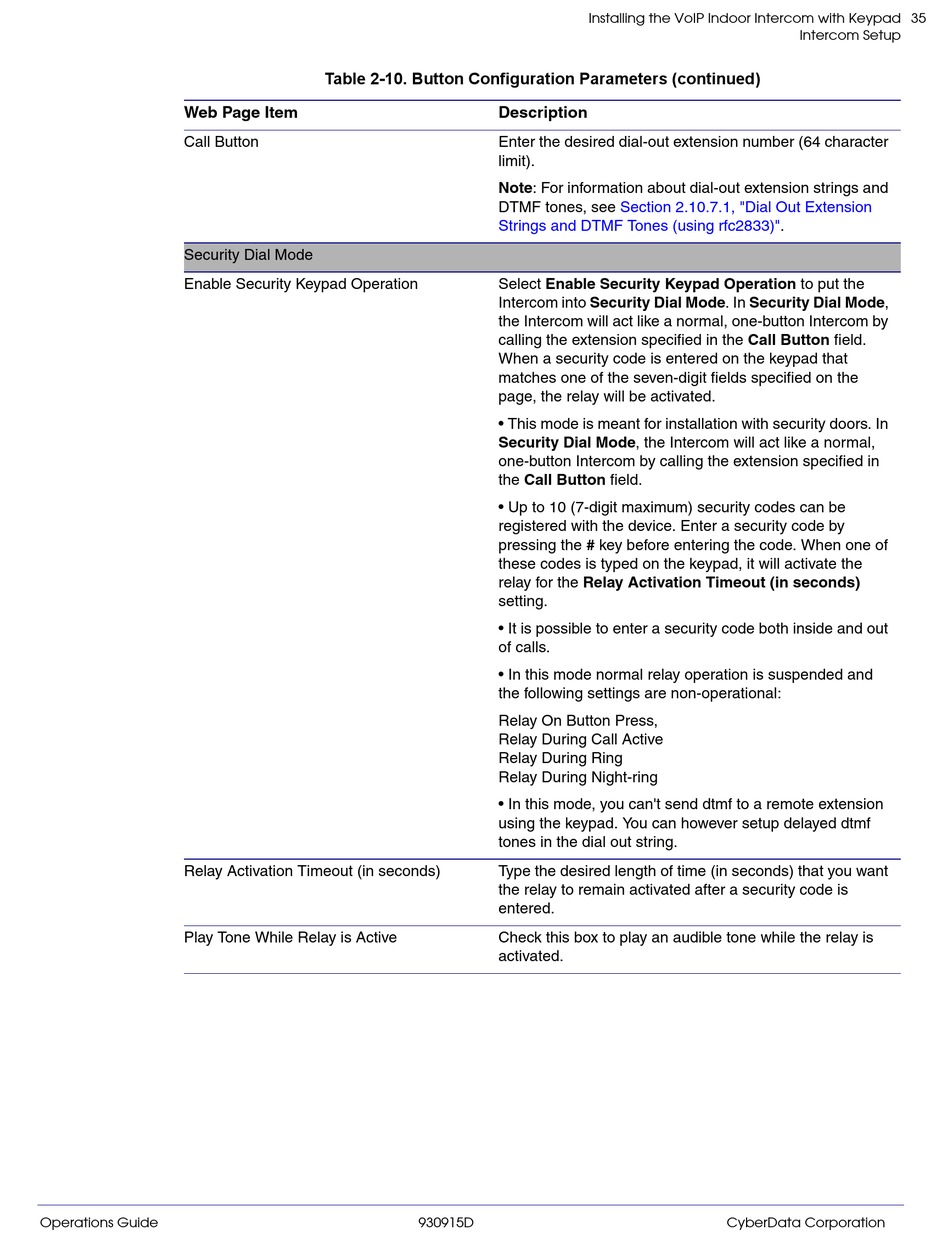

Table 2-10. Button Configuration Parameters (continued)
Description
Enter the desired dial-out extension number (64 character
limit).
Note: For information about dial-out extension strings and
DTMF tones, see
Strings and DTMF Tones (using
Select Enable Security Keypad Operation to put the
Intercom into Security Dial Mode. In Security Dial Mode,
the Intercom will act like a normal, one-button Intercom by
calling the extension specified in the Call Button field.
When a security code is entered on the keypad that
matches one of the seven-digit fields specified on the
page, the relay will be activated.
• This mode is meant for installation with security doors. In
Security Dial Mode, the Intercom will act like a normal,
one-button Intercom by calling the extension specified in
the Call Button field.
• Up to 10 (7-digit maximum) security codes can be
registered with the device. Enter a security code by
pressing the # key before entering the code. When one of
these codes is typed on the keypad, it will activate the
relay for the Relay Activation Timeout (in seconds)
setting.
• It is possible to enter a security code both inside and out
of calls.
• In this mode normal relay operation is suspended and
the following settings are non-operational:
Relay On Button Press,
Relay During Call Active
Relay During Ring
Relay During Night-ring
• In this mode, you can't send dtmf to a remote extension
using the keypad. You can however setup delayed dtmf
tones in the dial out string.
Type the desired length of time (in seconds) that you want
the relay to remain activated after a security code is
entered.
Check this box to play an audible tone while the relay is
activated.
930915D
Installing the VoIP Indoor Intercom with Keypad
Section 2.10.7.1, "Dial Out Extension
rfc2833)".
