2.9.3.2 Door Strike Intermediate Relay

For wiring an electronic door strike, we recommend the use of our external Door Strike Intermediate

Relay (CD# 011269).

This product provides an easier method of connecting standard door strikes as well as AC and

higher voltage devices. See

J3 Terminal Block

If you have questions about connecting door strikes or setting up the web configurable options,

please contact our support department.

http://www.cyberdata.net/support/voip/index.html

Operations Guide

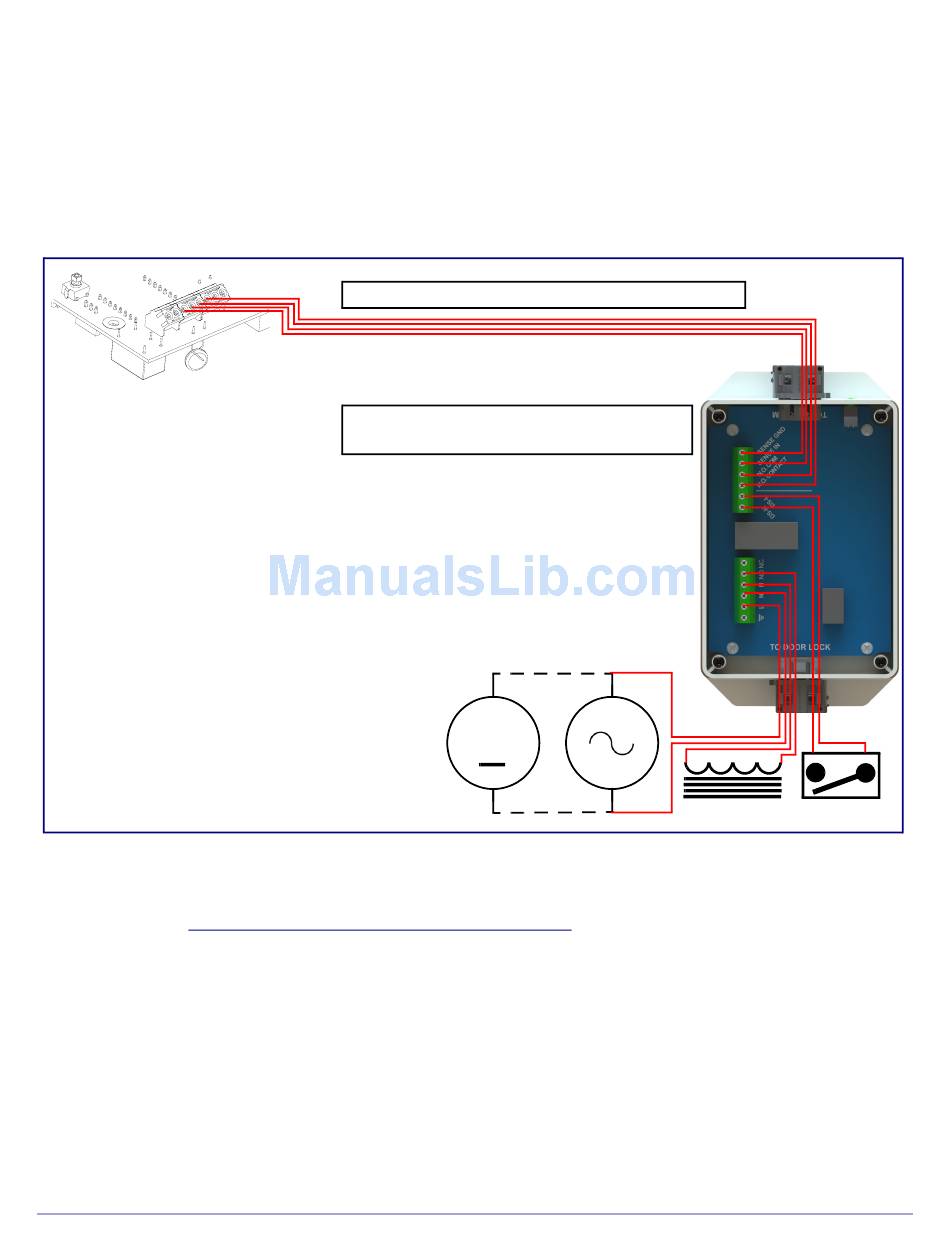

Figure 2-7

for the wiring diagram.

Figure 2-7. Wiring Diagram

The J3 terminal block can accept 16 AWG stranded wire.

Please refer to the Door Strike Intermediate Relay

Operations Guide for connection specifics.

DC Source

930915D

Installing the VoIP Indoor Intercom with Keypad

AC Source

Door Lock

Intercom Setup

Sense Input
