6: Configuration Using The Web Manager; Accessing The Web Manager Through A Web Browser; Figure 6-1. Prompt For User Name And Password - Lantronix Data Center-Grade Evolution Device Server EDS32PR User Manual

6: Configuration Using the Web Manager

This chapter describes how to configure the EDS using the Web Manager, Lantronix's
browser-based configuration tool. The unit's configuration is stored in nonvolatile memory
and retained without power. All changes take effect immediately, unless otherwise noted.

Accessing the Web Manager through a Web Browser

The following procedure describes how to log into the EDS using a standard Web
browser.
Note: Alternatively, access the Web Manager by selecting the Web
Configuration tab from DeviceInstaller (see
page 31).
To access Web Manager:
1. Open a standard Web browser such as Netscape Navigator 6.x and later, Internet
Explorer 5.5. and later, Mozilla Suite, Mozilla Firefox, or Opera.
2. Enter the IP address of the EDS in the address bar. The EDS's built-in security
requires you to log in with your user name and password.
3. Enter your user name and password in the appropriate fields. The Device Status
page displays (see Figure 6-2). This page is the Web Manager home page.
EDS Device Servers User Guide

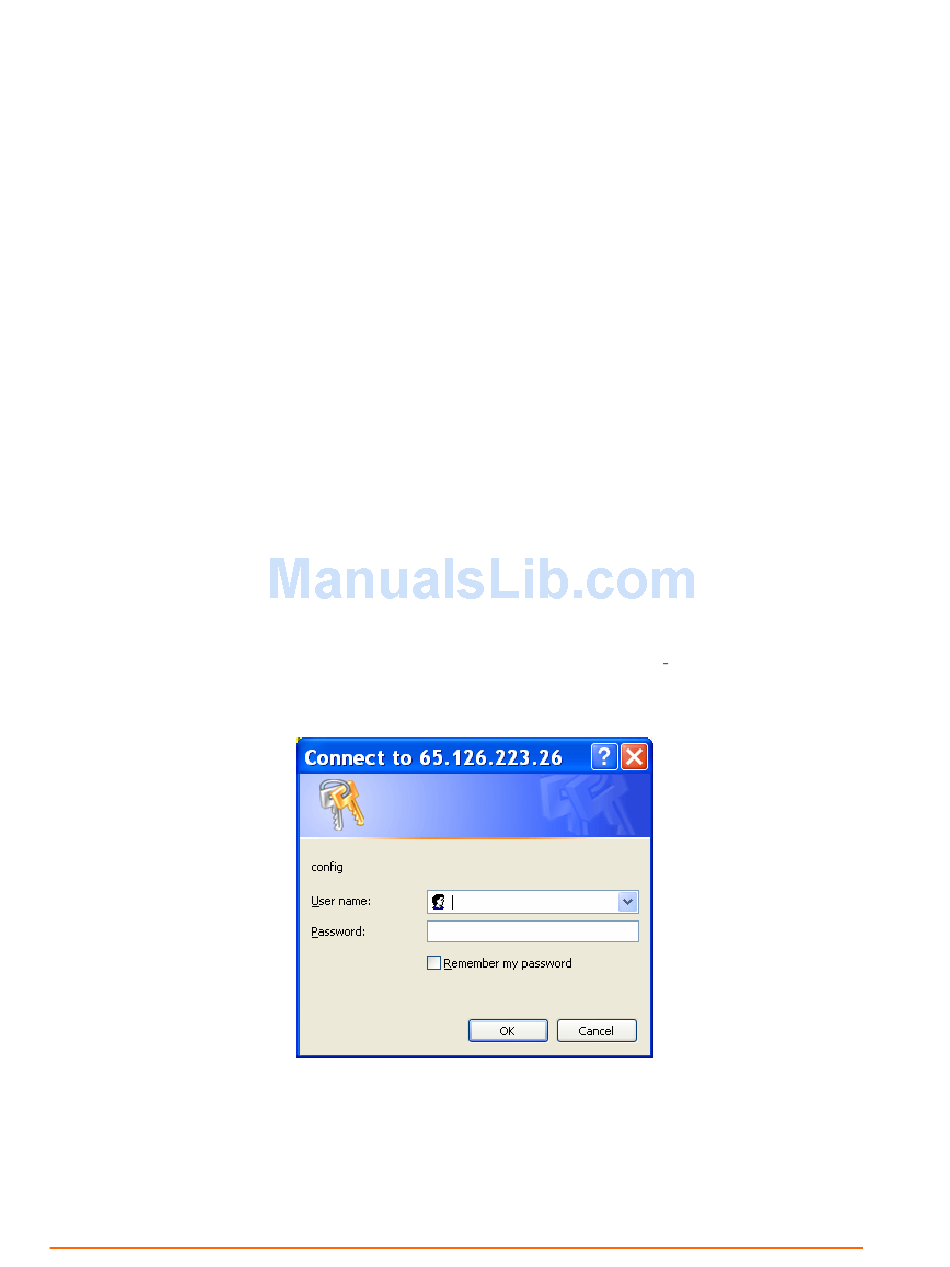

Figure 6-1. Prompt for User Name and Password

Viewing EDS Properties on
34
