Summary of Contents for Lantronix EDS8PS

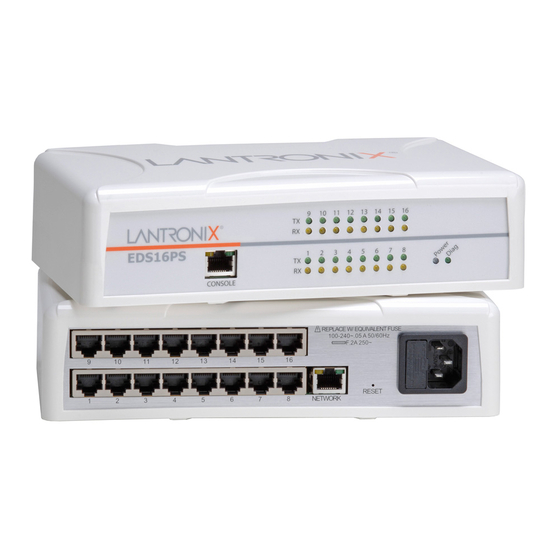

- Page 1 EDS8/16PS Quick Start Guide...
- Page 2 EDS8/16PS...
-
Page 3: Table Of Contents
EDS8/16PS QUICK START GUIDE CONTENTS What’s In the Box ..........2 Pinouts . -
Page 4: What's In The Box
Ethernet network. This Quick Start will step you through hardware installation and initial configuration of your EDS8PS or EDS16PS. WHAT'S IN THE BOX In addition to the EDS8PS or EDS16PS, the box contains the following items: PART # COMPONENT DESCRIPTION... -
Page 5: Quick Connect
QUICK CONNECT Complete the following steps in order. Refer to the numbers in the figure below. 1. Connect a serial device to your unit. 2. Connect an Ethernet cable to the RJ45 port. 3. Supply power to your unit using the power cord that was included in the packaging. -
Page 6: Ip Addressing
___ ___ ___ ___ Gateway: ___ ___ ___ ___ The following section describes assigning an IP address using DeviceInstaller. Note: For detailed instructions on assigning the IP address using the serial port, please see the User Guide or the Lantronix web site. -
Page 7: Quick Setup Using The Deviceinstaller Utility
Note: For more information about DeviceInstaller, see the DeviceInstaller Online Help. Step 2: Obtain the IP address 1. Click Start > Programs > Lantronix > DeviceInstaller > DeviceInstaller. If your PC has more than one network adapter, a message displays. Select an adapter and click OK. - Page 8 Note: If the unit already has an IP address (e.g., DHCP has assigned an IP address), click the Search icon and select the unit from the list of Lantronix device servers on the local network. 2. Note the device IP address.
-
Page 9: Configuration Using Web Manager
CONFIGURATION USING WEB MANAGER Use the menu to navigate to sub pages and configure the EDS. W W W . L A N T R O N I X . C O M... -
Page 10: Leds
Q u i c k S t a r t G u i d e E D S 8 / 1 6 P S LEDS MEANING Blinking = EDS is transmitting data on the serial port. Transmit (green) Blinking = EDS is receiving data on the serial port. Receive (yellow) ON = EDS is receiving power. -
Page 11: Contact
CONTACT For questions and technical support, please check our online knowledge base at www.lantronix.com/support or call (800) 422-7044 Monday – Friday from 6:00 a.m. – 5:00 p.m., Pacific Time, excluding holidays. www.lantronix.com W W W . L A N T R O N I X . C O M... - Page 12 EDS8/16PS 900-546 Rev. C 2020 Copyright © Lantronix is a trademark of Lantronix. All rights reserved.
