Identifying Hardware Components
Figure 3-1 shows the hardware components on the front of the EDS16PR. Figure 3-2
shows the hardware components on the back of the EDS16PR.
The bottom of the EDS8/16/32PR has a product information label. This label contains the
following information:
EDS Device Servers User Guide

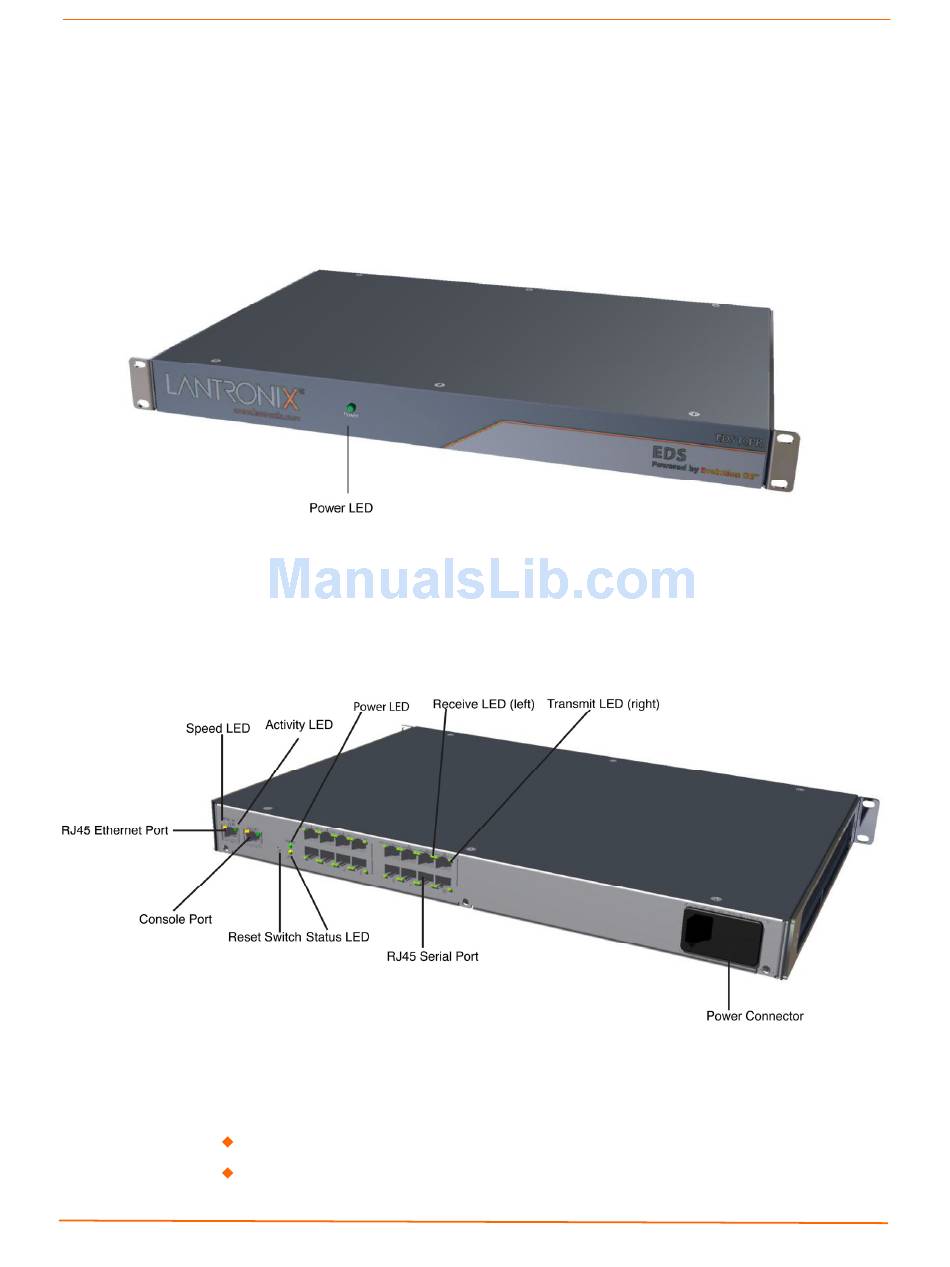

Figure 4-1. Front View of the EDS16PR
Figure 4-2. Back View of the EDS16PR
Bar code
Serial number
4: Installation: EDS8PR, EDS16PR and EDS32PR
26
