EDS5000 Device Server Quick Start Guide
!
Thank you for choosing Lantronix. Please register the EDS5000 in order to receive notifications for
firmware and documentation updates at
What's In The Box
Quick Start
START
1. Hardware Overview
2. Install EDS5000 Hardware
Prepare to Install
1. Unbox and verify the contents.
2. Review and follow the safety information in the Install Guide.
3. Ensure that the computer used to access the EDS5000 web admin UI has an Ethernet port and Internet
access, a recent Web browser and a terminal emulator running, an RJ-11 port, and a DHCP client.
Install EDS5000 Hardware
1. Desktop: Place the provided 4 Rubber feet on bottom of EDS5000.
2. 19" Rack: Use the 2 Rack Mount Ears and screws to mount the EDS5000.
EDS5000

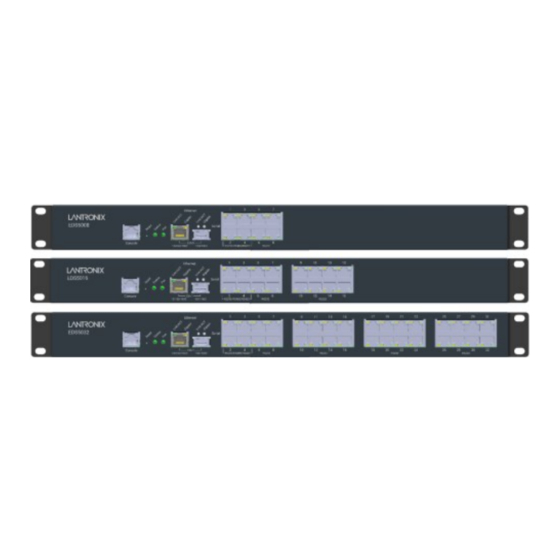

EDS5008, EDS5016 & EDS5032
EDS50xx Back View (Common)
EDS5032 Front Panel Components
www.lantronix.com/product-registration.
AC Power Cord
RJ45 to DB9F Adapter
Two Rack Mount Ears
Four Rubber feet
Console port cable
Percepxion flyer
Package may also include a DC power supply
Accessories
Part Number
500-0282-00
500-103-R
110-0973-00
120-008-R
500-103-R
900-0811-R
Advertisement
Related Manuals for Lantronix EDS5000
Summary of Contents for Lantronix EDS5000
- Page 1 2. Review and follow the safety information in the Install Guide. 3. Ensure that the computer used to access the EDS5000 web admin UI has an Ethernet port and Internet access, a recent Web browser and a terminal emulator running, an RJ-11 port, and a DHCP client.
- Page 2 The EDS5000 must have a unique IP address on your network. This IP address can be assigned automatically with DHCP, or you can assign it manually. The EDS5000 looks for a DHCP server when it first powers up to assign an IP address. You can use Lantronix Provisioning Manager (LPM) to locate the automatically assigned IP address.
- Page 3 EDS5000 User Guide for configuration information at http://www.lantronix.com/support/downloads. If the EDS5000 was not assigned an IP address automatically by DHCP, you must assign one manually. If it was successfully assigned an IP address via DHCP, you can change the configuration via the Web Manager.
