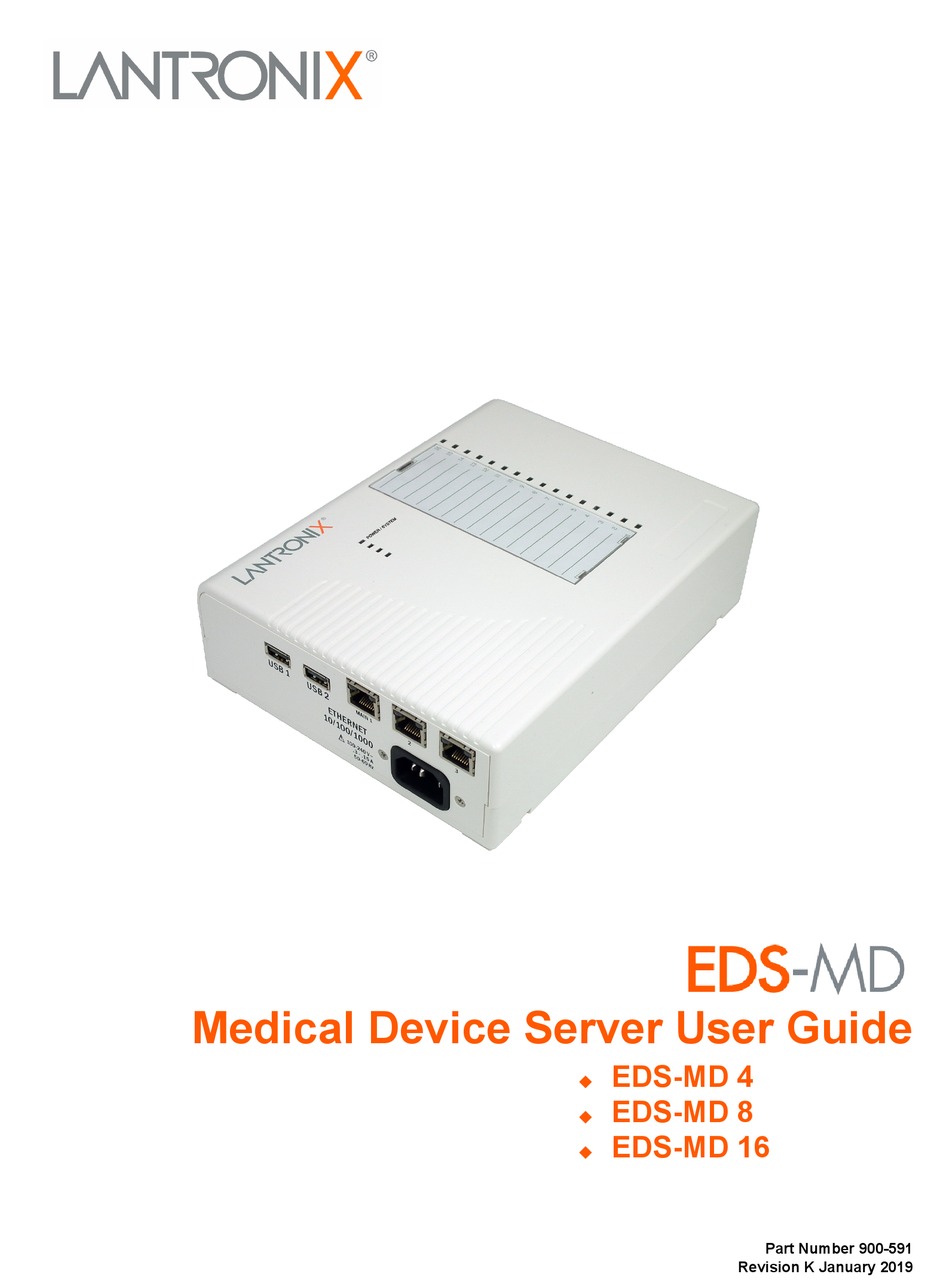

- Page 1 EDS-MD Medical Device Server User Guide EDS-MD 4 EDS-MD 8 EDS-MD 16 Part Number 900-591 Revision K January 2019...
-
Page 2: Intellectual Property
Technical Support Online: www.lantronix.com/support Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. Disclaimer All information contained herein is provided “AS IS.” Lantronix undertakes no obligation to update the information in this publication. Lantronix does not make, and specifically disclaims,... -
Page 3: Revision History
Revision History Date Rev. Comments September 2011 Initial Document for firmware release 7.2.0.0. October 2011 Updated power cord part number information. November 2011 Updated ethernet port information and cover product image. November 2011 Added Suppliers Declaration of Conformity document. March 2013 Updated pinout diagrams and part number information. -
Page 4: Table Of Contents
Power Plug ___________________________________________________________14 Input Supply __________________________________________________________14 Grounding ____________________________________________________________ 15 Fuses _______________________________________________________________ 15 There are fuses on the internal power supply serviceable only by Lantronix. ________15 Battery ______________________________________________________________ 15 Wall Mounting _________________________________________________________ 15 Port Connections ______________________________________________________ 15 WARNINGS OF NETWORK CONNECTIONS ________________________________ 16... - Page 5 Product Information Label ___________________________________________________ 20 3: Installation of EDS-MD Device Servers Package Contents _________________________________________________________ 21 User-Supplied Items _______________________________________________________ 21 Identifying Hardware Components ____________________________________________ 22 Serial Ports ___________________________________________________________22 Ethernet Port _________________________________________________________ 22 LEDs ________________________________________________________________ 23 Reset to Default Button _________________________________________________ 24 Technical Specification _____________________________________________________25 Installing the EDS-MD ______________________________________________________ 27 Finding a Suitable Location ______________________________________________27...
- Page 6 Network 3 (eth2) Link Settings _______________________________________________ 43 To View or Configure Link 3 (eth2) Settings __________________________________44 Network 2 (eth0) Status ____________________________________________________44 7: Line and Tunnel Settings Line Statistics ____________________________________________________________ 45 Line Settings _____________________________________________________________ 45 To Configure Line Settings _______________________________________________ 45 To Configure Line Command Mode ________________________________________47 Tunnel Statistics __________________________________________________________48 To View Tunnel Statistics ________________________________________________ 48...
- Page 7 To Configure HTTP Authentication _________________________________________ 65 RSS Settings _____________________________________________________________ 65 To Configure RSS Settings ______________________________________________66 Real Time Clock (RTC) Settings ______________________________________________66 To Configure RTC Settings ______________________________________________66 Email Settings ____________________________________________________________ 67 To View, Configure, and Send Email _______________________________________67 10: Security Settings Public Key Infrastructure ____________________________________________________69 TLS (SSL) _______________________________________________________________ 69 Digital Certificates _________________________________________________________ 70...
- Page 8 IP Settings ___________________________________________________________82 To Configure IP Protocol Stack Settings ____________________________________ 82 ICMP Settings _________________________________________________________ 82 To Configure ICMP Protocol Stack Settings __________________________________82 To View ICMP Protocol Stack Settings ______________________________________ 83 ARP Settings _________________________________________________________ 83 To Configure ARP Network Stack Settings __________________________________83 SMTP Settings ________________________________________________________ 84 To Configure SMTP Protocol Stack Settings _________________________________84 Diagnostics ______________________________________________________________ 84...
- Page 9 Converting Binary to Hexadecimal ___________________________________________ 100 Conversion Table _____________________________________________________100 Scientific Calculator ___________________________________________________100 Appendix C: Compliance Appendix D: Lantronix Power Cords, Cables, Adapters and Serial Port Pinouts Cables and Adapters ______________________________________________________ 106 Adapters and Serial Port Pinouts ____________________________________________107 EDS-MD® Medical Device Server User Guide...
-
Page 10: List Of Figures
List of Figures Figure 2-1 EDS-MD Unit Product Label _______________________________________________ 20 Figure 3-1 Front View of the EDS-MD 16 Device Servers _________________________________22 Figure 3-2 Back View of the EDS-MD 4, EDS-MD 8 and EDS-MD 16 Device Servers ___________ 22 Figure 3-3 RJ45 Serial Port_________________________________________________________ 22 Figure 3-4 EDS-MD Ethernet Switch in a Sample Hospital Record System____________________23 Figure 3-8 EDS-MD Dimensions_____________________________________________________27 Figure 3-9 Mounting Screws Included with the EDS-MD Medical Device Server in Inches ________28... -
Page 11: List Of Tables
List of Tables Table 3-5 System LEDs on the Top of EDS-MD Device Server ____________________________ 24 Table 3-6 Serial Indicator LEDs on the Top of EDS-MD Device Server ______________________ 24 Table 3-7 RJ45 LEDs on the Back Panel (Ethernet Indicators). ____________________________ 24 Table 5-3 Web Manager Pages ____________________________________________________36 Table 6-1 Network 1 (eth0) Interface Settings __________________________________________ 38 Table 6-2 Network 1 (eth0) Link Settings ______________________________________________40... - Page 12 Table 14-1 Short and Long Name Settings ____________________________________________ 98 Table B-1 Binary to Hexadecimal Conversion _________________________________________ 100 Table C-1 Applicable Medical Standards _____________________________________________102 Table C-2 Applicable ITE Standards ________________________________________________ 102 Table D-1 Lantronix Cables and Adapters ____________________________________________106 EDS-MD® Medical Device Server User Guide...
-
Page 13: 1: Using This Guide
Using This Guide Purpose and Audience This guide provides the information needed to configure, use, and update the Lantronix® EDS-MD® medical device server models: EDS-MD 4, EDS-MD 8 and EDS-MD 16. It is intended for system integrators who are installing this product into their designs. -
Page 14: Safety Information
Do not operate the EDS-MD if the housing is broken. Note: Refer all servicing to Lantronix. Power Plug When disconnecting the power cord from the socket, pull on the plug, not the cord. -
Page 15: Grounding
Battery A Lithium battery cell inside the unit maintains the unit's date and time when the device is powered off. Do not attempt to replace it. The battery is serviceable only by Lantronix. Caution: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. -
Page 16: Warnings Of Network Connections
1: Using This Guide Warning: To avoid overloading and overheating, do not use a USB port as a charger port or a power port for other devices such as a cellular phone, PDA device, disk drive, etc. WARNINGS OF NETWORK CONNECTIONS The integration of the EDS-MD medical device server into an IT network may constitute a Medical Electrical (ME) System. -
Page 17: Electromagnetic Interference
Connect the equipment into an outlet on a circuit different from that to which the other device(s) is connected Consult the manufacturer or field service technician for help Additional Documentation Visit the Lantronix Web site at www.lantronix.com/support/documentation for the latest documentation and the following additional documentation. Document Description... -
Page 18: 2: Introduction
Introduction The EDS-MD medical device server is a complete network-enabling solution. This device server allows system integrators and administrators to go to market quickly and easily with Ethernet networking and web server capabilities. EDS-MD models are available in 4, 8 and 16 port configurations. -
Page 19: Troubleshooting Capabilities
The hardware address is also referred to as the Ethernet address, physical address, or MAC address. The first three bytes of the Ethernet address are fixed and identify the unit as a Lantronix product. The fourth, fifth, and sixth bytes are unique numbers assigned to each unit. Sample... -
Page 20: Ip Address
TCP Port 80: HTTP (Web Manager Configuration) TCP Port 21: FTP UDP Port 30718: LDP (Lantronix Discovery Protocol) port TCP/UDP Port 10001: Tunnel 1 (see note below) Note: Additional TCP/UDP ports and tunnels will be available, depending on the product type. -
Page 21: 3: Installation Of Eds-Md Device Servers
DCE device, you need a DCE (modem) cable, or an RJ45 patch cable and DCE adapter. For a list of the Lantronix cables and adapters you can use with the EDS-MD, see the Appendix D: Lantronix Power Cords, Cables, Adapters and Serial Port Pinouts on page 106. -
Page 22: Identifying Hardware Components
3: Installation of EDS-MD Device Servers Identifying Hardware Components shows the front of the EDS-MD 16. shows the back of the EDS-MD 4, EDS- Figure 3-1 Figure 3-2 MD 8 or EDS-MD 16. Figure 3-1 Front View of the EDS-MD 16 Device Servers Note: EDS-MD 4 has 4 RJ45 Serial... -
Page 23: Leds
3: Installation of EDS-MD Device Servers Figure 3-4 EDS-MD Ethernet Switch in a Sample Hospital Record System (1) Single IP only (2) The EDS-MD device server can only be managed through the management port (Main 1) (3) Devices attached to switch port 2 or 3 can communicate with the hospital record system (4) Devices attached to switch port 2 and 3 cannot access EDS-MD device applications LEDs Light-emitting diodes (LEDs) on the EDS-MD show status information. -
Page 24: Reset To Default Button
3: Installation of EDS-MD Device Servers Table 3-5 System LEDs on the Top of EDS-MD Device Server Description Steady Green Unit operational. Unit powered down or not operational. Table 3-6 Serial Indicator LEDs on the Top of EDS-MD Device Server Description Green Indicates there is a tunnel connection to or from the EDS-MD. -
Page 25: Technical Specification
3: Installation of EDS-MD Device Servers To restore factory default settings: 1. Power cycle the unit. 2. During the bootup, hold down the reset-to-default button for a minimum of 25 seconds. 3. Release the button. The firmware restores factory default settings to the configuration. Technical Specification Category Description... - Page 26 3: Installation of EDS-MD Device Servers Category (continued) Description POWER RATING Power Input AC Connector IEC60320 C14 receptacle with no power switch Power Usage 100-240 VAC, 50/60 Hz, 0.4A, 23W maximum PHYSICALS Dimensions L x W x H = 8.25 x 7.5 x 2.4 in. (21 x 19 x 6 cm) Weight 16-port = 2.0 lbs (0.9 Kg) 8-port = 1.8 lbs (0.82 Kg)
-
Page 27: Installing The Eds-Md
1. Power off the serial devices. 2. Attach a CAT 5 serial cable between the EDS-MD unit and your serial device. Appendix D: Lantronix Power Cords, Cables, Adapters and Serial Port Pinouts on page 106, for a list of cables and adapters you can use. -
Page 28: Wall Mounting Instructions
3: Installation of EDS-MD Device Servers Wall Mounting Instructions For Installations to Walls Requiring Anchors These instructions are for mounting the EDS-MD medical device server to walls made of solid concrete, block, brick or pasterboard. 1. Locate the place where you want to mount your EDS-MD and mark four holes using your EDS-MD mount as a guide for the screws. -
Page 29: Figure 3-10 Mounting The Eds-Md Device Server
3: Installation of EDS-MD Device Servers Figure 3-10 Mounting the EDS-MD Device Server Note: Figure 3-10 represents the installation of an EDS-MD device server to a wall, indicating where anchors and screws should be positioned.The actual screw type to be used and whether an anchor is necessary for your installation will depend on the material of the wall to... -
Page 30: 4: Using Deviceinstaller
Using DeviceInstaller This chapter covers the steps for locating an EDS-MD unit and viewing its properties and device details. The Lantronix® DeviceInstaller™ application is a free utility program provided by Lantronix that discovers, configures, upgrades and manages Lantronix device servers. -
Page 31: Device Detail Summary
Shows the EDS device family type as “”EDS-MD“. Short Name Shows “”edsmd4”, ”edsmd8”, or ”edsmd16” by default. Long Name Shows “Lantronix EDS-MD4”, ”Lantronix EDS-MD”, or ”Lantronix EDS- MD16” by default. Type Shows the device type as “EDS-MD”. Shows the EDS-MD ID embedded within the unit. - Page 32 4: Using DeviceInstaller Current Settings Description Shows the EDS-MD port for Web Manager configuration (if Web Enabled Web Port field is True). Shows True, indicating the EDS-MD firmware is upgradable as newer Firmware Upgradable versions become available. EDS-MD® Medical Device Server User Guide...
-
Page 33: 5: Configuration Using Web Manager
DeviceInstaller application window. To access Web Manager, perform the following steps: 1. Open a standard web browser. Lantronix supports the latest versions of Internet Explorer, Mozilla Firefox, Safari or Chrome web browsers. 2. Enter the IP address or hostname of the EDS-MD unit in the address bar. The IP address may have been assigned manually using DeviceInstaller (see the EDS-MD Medical Device Server Quick Start Guide) or automatically by DHCP. -
Page 34: Device Status Page
5: Configuration Using Web Manager Device Status Page The Device Status page is the first to appear after you log into Web Manager. The Device Status page also appears when you click Status in the menu bar in Web Manager. Figure 5-1 Device Status Page EDS-MD®... -
Page 35: Web Manager Components
5: Configuration Using Web Manager Web Manager Components The layout of a typical Web Manager page is below. Figure 5-2 Components of the Web Manager Page Logout Links to Items to button subpages configure Header Menu Bar Footer Information Configuration and/or Status Area and Help Area Web Manager pages have these sections: The menu bar always appears at the left side of the page, regardless of the page shown. -
Page 36: Navigating Web Manager
The footer appears at the very bottom of the page. It contains copyright information and a link to the Lantronix home page. Navigating Web Manager The Web Manager provides an intuitive point-and-click interface. A menu bar on the left side of each page provides links you can click to navigate from one page to another. - Page 37 5: Configuration Using Web Manager Web Manager Page Description (continued) Page Syslog Lets you specify the severity of events to log and the server and ports to which the syslog should be sent. System Lets you reboot device, restore factory defaults, upload new firmware, and change the device long and short names.
-
Page 38: 6: Network Settings
Network Settings The Network Settings show the status of the EDS-MD device interface/link and lets you configure the settings on the device. Interface settings are related to the configuration of the IP and related protocols. Link settings are related to the physical link connection, which carries the IP traffic. The EDS-MD device server contains three interfaces:. - Page 39 6: Network Settings Network 1 (eth0) Description Interface Settings BOOTP Client Select to turn On or Off. At boot up, after the physical link is up, the EDS-MD device will attempt to obtain IPsettings from a BOOTP server. Note: Overrides the configured IPaddress/mask, gateway, hostname, and domain.
-
Page 40: To Configure Network 1 (Eth0) Interface Settings
6: Network Settings To Configure Network 1 (eth0) Interface Settings Using Web Manager To modify Ethernet (eth0) settings, click Network on the menu and select Network 1 -> Interface -> Configuration. Using the CLI To enter the eth0 command level: enable -> config -> if 1 ... -
Page 41: Network 2 (Eth1) Interface Settings
6: Network Settings Using XML Include in your file: <configgroup name="link" instance="eth0"> Network 2 (eth1) Interface Settings Table 6-3 shows the network 2 interface settings that can be configured. Table 6-3 Network 2 (eth1) Interface Settings Network 1 (eth0) Description Interface Settings State... -
Page 42: Network 2 (Eth1) Link Settings
6: Network Settings Network 2 (eth1) Link Settings Physical link parameters can be viewed and configured for an Network 2 (eth1) Interface (see Table 6-4) and a Network 2 (eth2) Interface (see Table 6-5). Table 6-4 Network 2 (eth1) Link Settings Network 2 Ethernet (eth1) Description Link Settings... -
Page 43: Network 3 (Eth2) Interface Settings
6: Network Settings Network 3 (eth2) Interface Settings shows the network 2 interface settings that can be configured. Table 6-5 Table 6-5 Network 3 (eth2) Interface Settings Network 3 (eth2) Description Interface Settings State Select to enable or disable. Click the Submit button to enter your choice. To Configure Network 3 (eth2) Interface Settings Using Web Manager To modify Network 3 (eth2) interface settings, click Network on the menu and select Network... -
Page 44: To View Or Configure Link 3 (Eth2) Settings
6: Network Settings Network 3 Ethernet (eth2) Description Link Settings (continued) Select the Ethernet link duplex mode. (Default is Auto) Auto = Auto-negotiation of Link Duplex Duplex Half = Force Half Duplex Full = Force Full Duplex To View or Configure Link 3 (eth2) Settings Using Web Manager In Network Link3, you can view and modify the current operational settings as well as the settings... -
Page 45: 7: Line And Tunnel Settings
Line and Tunnel Settings The EDS-MD device servers contain four, eight or sixteen serial linesdepending on the specific model. All lines use standard RS232 serial ports. All lines can be configured to operate in the following modes: RS232 All serial settings such as Baud Rate, Parity, Data Bits, etc, apply to these lines. ... -
Page 46: Table 7-1 Line Configuration Settings
7: Line and Tunnel Settings Table 7-1 Line Configuration Settings Line Settings Description Name Enter a name or short description for the line, if desired. By default, there is no name specified. A name that contains white space must be quoted. State Select to enable or disable the operational state of the Line. -
Page 47: To Configure Line Command Mode
7: Line and Tunnel Settings Table 7-2 Line Command Mode Settings Line Command Description Mode Settings Mode Set the Command Mode state of the Line. When in Command Mode, a CLI session operates exclusively on the Line. Choices are: Always ... -
Page 48: Tunnel Statistics
7: Line and Tunnel Settings Tunnel Statistics Tunnel statistics contains data counters, error counters, connection time and connection information. Statistics are available at each individual connection and aggregated across all connections. Note: The following section describes the steps to view Tunnel 1 statistics; these steps apply to other tunnel instances of the device. -
Page 49: To Configure Tunnel Serial Settings
7: Line and Tunnel Settings Tunnel Serial Description Settings (continued) Select the conditions under which the Data Terminal Ready (DTR) control signal on the serial line is asserted. Choices are: Unasserted TruPort = the DTR is asserted whenever either a connect or an accept ... -
Page 50: To Configure Tunnel Packing Mode Settings
7: Line and Tunnel Settings Tunnel Packing Description Mode Settings Send Character Enter Control Characters in any of the following forms: <control>J 0xA (hexadecimal) \10 (decimal) If used, the Send Character is a single printable character or a control character that, when read on the Serial Line, forces the queued data to be sent on the network immediately. -
Page 51: Table 7-5 Tunnel Accept Mode Settings
7: Line and Tunnel Settings Table 7-5 Tunnel Accept Mode Settings Tunnel Accept Mode Description Settings Set the method used to start a tunnel in Accept mode. Choices are: Disable = do not accept an incoming connection. Always = accept an incoming connection (default). ... -
Page 52: To Configure Tunnel Accept Mode Settings
7: Line and Tunnel Settings Tunnel Accept Mode Description Settings (continued) Password Enter a password. This password can be up to 31 characters in length and must contain only alphanumeric characters and punctuation. When set, clients must send the correct password string to the unit within 30 seconds from opening network connection in order to enable data transmission. -
Page 53: Table 7-6 Tunnel Connect Mode Settings
7: Line and Tunnel Settings Table 7-6 Tunnel Connect Mode Settings Tunnel Connect Mode Description Settings Set the method to be used to attempt a connection to a remote host or device. Choices are: Disable = an outgoing connection is never attempted. (default) ... - Page 54 7: Line and Tunnel Settings Tunnel Connect Mode Description Settings (continued) TCP User Timeout: specify the amount of time the TCP segments will be retransmitted before the connection is closed. AES Encrypt Key: enter the AES encrypt key to encrypt outgoing data. ...
-
Page 55: Connecting Multiple Hosts
7: Line and Tunnel Settings Tunnel Connect Mode Description Settings (continued) Set whether Block Serial is enabled for debugging purposes. Choices are: Enabled = If Enabled, incoming characters from the Serial Line will not be forwarded to the network. Instead, they will be buffered and will eventually Block Serial flow off the Serial Line if hardware or software flow control is configured. -
Page 56: Host List Promotion
7: Line and Tunnel Settings Host List Promotion This feature allows Host IP promotion of individual hosts in the overall sequence. To promote a specific Host: 1. Click the icon in the desired Host field, for example Host 2 and Host 3. 2. -
Page 57: Modem Emulation
7: Line and Tunnel Settings Modem Emulation Some older equipment is designed to attach to a serial port and dial into a network with a modem. This equipment uses AT commands to control the connection. For compatibility with these older devices on modern networks, the EDS-MD device mimics the behavior of the modem. -
Page 58: 8: Terminal And Host Settings
Terminal and Host Settings Predefined connections are available via Telnet, SSH, or a serial port. A user can choose one of the presented options and the device automatically makes the predefined connection. Either the Telnet, SSH, or serial port connection can present the CLI or the Login Connect Menu. By default, the CLI is presented when the device is accessed. -
Page 59: To Configure The Terminal Network Connection
8: Terminal and Host Settings To Configure the Terminal Network Connection Using Web Manager To configure the Terminal on Network, click Terminal on the menu and select Network -> Configuration. Using the CLI To enter the Terminal Network command level: enable -> config -> terminal ... -
Page 60: To Configure Host Settings
8: Terminal and Host Settings Host Settings Description SSH Username Appears if you selected SSH as the protocol. Enter a username to select a pre- configured Username/Password/Key (configured on the SSH: Client Users page), or leave it blank to be prompted for a username and password at connect time. Note: This configuration option is only available when SSH is selected for Protocol. -
Page 61: 9: Network Services
Network Services DNS Settings This section describes the active run-time settings for the domain name system (DNS) protocol. The primary and secondary DNS addresses come from the active interface. The static addresses from the Network Interface configuration settings may be overridden by DHCP. Note: blue text in the XML command strings of this chapter are to be replaced with... -
Page 62: Ftp Settings
9: Network Services FTP Settings The FTP protocol can be used to upload and download user files, and upgrade the EDS-MD device server firmware. A configurable option is provided to enable or disable access via this protocol. FTP Settings Table 9-2 FTP Settings Description State... -
Page 63: To View Or Configure Syslog Settings
9: Network Services Syslog Settings Description (continued) Specify the minimum level of system message the EDS-MD device should log by selecting from the drop-down menu. This setting applies to all syslog facilities. The Severity Log Level drop-down list in the Web Manager is in descending order of severity (e.g., Emergency is more severe than Alert.) To View or Configure Syslog Settings Using Web Manager... -
Page 64: To Configure Http Settings
9: Network Services HTTP Settings (continued) Description Max Timeout Enter the maximum time for the HTTP server to wait when receiving a request. This prevents Denial-of-Service (DoS) attacks. The default is 10 seconds. Max Bytes Enter the maximum number of bytes the HTTP server accepts when receiving a request. -
Page 65: To Configure Http Authentication
9: Network Services HTTP Authentication Settings Table 9-5 HTTP Authentication Description Settings Enter the Uniform Resource Identifier (URI). Note: The URI must begin with ‘/’ to refer to the filesystem. Auth Type Select the authentication type: None = no authentication is necessary. ... -
Page 66: To Configure Rss Settings
9: Network Services RSS Settings Description View Click the button to view RSS feeds. Clear Click the button to clear RSS feed data. To Configure RSS Settings Using Web Manager To configure RSS and view current RSS statistics, click RSS in the menu. ... -
Page 67: Email Settings
9: Network Services Email Settings View and configure email alerts relating to events occurring within the system. Table 9-8 Email Configuration Email – Configuration Description Settings Enter the email address to which the email alerts will be sent. Multiple addresses are separated by semicolon (;). - Page 68 9: Network Services Using the CLI To enter Email command level: enable -> email 1 Using XML Include in your file: <configgroup name=”email” instance=”1”> EDS-MD® Medical Device Server User Guide...
-
Page 69: 10: Security Settings
10: Security Settings The EDS-MD device supports Secure Shell (SSH) and Secure Sockets Layer (SSL). SSH is a network protocol for securely accessing a remote device. SSH provides a secure, encrypted communication channel between two hosts over a network. It provides authentication and message integrity services. -
Page 70: Digital Certificates
10: Security Settings Digital Certificates The goal of a certificate is to authenticate its sender. It is analogous to a paper document that contains personal identification information and is signed by an authority, for example a notary or government agency. With digital certificates, a cryptographic key is used to create a unique digital signature. -
Page 71: Openssl
10: Security Settings OpenSSL OpenSSL is a widely used open source set of SSL related command line utilities. It can act as server or client. It can also generate or sign certificate requests, and can convert from and to several different of formats. OpenSSL is available in binary form for Linux and Windows. -
Page 72: Ssh Settings
10: Security Settings SSH Settings SSH is a network protocol for securely accessing a remote device over an encrypted channel. This protocol manages the security of internet data transmission between two hosts over a network by providing encryption, authentication, and message integrity services. Configuration is required when the EDS-MD device is either (1) the SSH server or (2) an SSH client.. -
Page 73: Ssh Client Known Hosts
10: Security Settings SSH Client Known Hosts The SSH Client Known Hosts are used by all applications that play the role of an SSH Client. Specifically in Connect Mode. Configuring these public keys are optional but if they exist another layer of security is offered which helps prevent Man-in-the-Middle (MITM) attacks. -
Page 74: Ssh Client Users
10: Security Settings SSH Client Users The SSH Client Users are used by all applications that play the role of an SSH Client. Specifically Tunneling in Connect Mode. To configure the EDS-MD device server as an SSH client, an SSH client user must be both configured and also exist on the remote SSH server. -
Page 75: To Configure Ssh Settings
10: Security Settings SSH Settings Description Bit Size Select the bit length of the new key: 1024 Using a larger Bit Size takes more time to generate the key. Approximate times are: 1 second for a 512 bit RSA key ... -
Page 76: To Create A New Credential
10: Security Settings Table 10-6 Create a New Credentials Upload Field Description Create new Enter the name of the new credential to be created. credential Submit (button) Click the Submit button after entering the new credential name. To Create a New Credential Using Web Manager To create a new credential, click SSL in the menu and select Credentials. -
Page 77: Certificate And Key Generation
10: Security Settings Certificate and Key Generation The EDS-MD device server can generate self signed certificates and their corresponding keys. This can be done for both the rsa and dsa certificate formats. Certificates can be identified on the EDS-MD unit by a name provided at generation time. Table 10-8 Certificate and Key Generation Settings Certificate Generation Description... -
Page 78: Trusted Authorities
10: Security Settings Using the CLI To enter the SSL command level: enable -> ssl To enter the Credential command level: enable -> ssl -> credentials Using XML Include in your file: <configgroup name=”ssl”> and <configitem name=”credentials” instance=”name”> and <value name="RSA certificate"/>... -
Page 79: 11: Maintenance And Diagnostics Settings
11: Maintenance and Diagnostics Settings Filesystem Settings Use the file system to list, view, create, upload, copy, move, remove, and transfer files. The EDS-MD device server uses an EXT3 flash file system to store files. Statistics The filesystem statistics page displays statistics and current usage information of the flash filesystem. -
Page 80: File Display
11: Maintenance and Diagnostics Settings File Display View the list of existing files and their contents in the ASCII or hexadecimal formats. Table 11-2 File Display Settings File Display Commands Description Displays a list of files on the EDS-MD 4/8/16 device, and their respective sizes. Displays the specified file in ASCII format. -
Page 81: File Transfer
11: Maintenance and Diagnostics Settings File Transfer Files can be transferred to and from the EDS-MD 4/8/16 device via the TFTP protocol. This can be useful for saving and restoring XML configuration files. Files can also be uploaded via HTTP. Table 11-4 File Transfer Settings File Transfer Settings Description... -
Page 82: Protocol Stack Settings
11: Maintenance and Diagnostics Settings Protocol Stack Settings There are various low level network stack specific items that are available for configuration. This includes settings related to IP, ICMP, ARP and SMTP, which are described in the sections below. IP Settings IP Protocol Stack Settings Table 11-5 Protocol Stack... -
Page 83: To View Icmp Protocol Stack Settings
11: Maintenance and Diagnostics Settings Using the CLI To enter the command level: enable -> config -> icmp Using XML Include in your file: <configgroup name=”icmp”> To View ICMP Protocol Stack Settings Using Web Manager To view ICMPv6 protocol settings, click Protocol Stack in the menu and select ICMPv6. ... -
Page 84: Smtp Settings
11: Maintenance and Diagnostics Settings SMTP Settings Table 11-8 SMTP Protocol Stack Settings Protocol Stack Description SMTP Settings Relay Address Enter the relay address to be used to direct all outbound email messages through a mail server. Relay Port Enter the relay port to be used for all outbound email messages through a mail server. To Configure SMTP Protocol Stack Settings Using Web Manager To configure ARP protocol settings, click Protocol Stack in the menu and select SMTP. -
Page 85: To View The List Of Ip Sockets
11: Maintenance and Diagnostics Settings To View the List of IP Sockets Using Web Manager To view IP Sockets, click Diagnostics in the menu and select IP Sockets. Using the CLI To enter the command level: enable, show ip sockets ... -
Page 86: To Perform A Traceroute
11: Maintenance and Diagnostics Settings Table 11-10 Traceroute Settings Diagnostics: Description Traceroute Settings Host Enter the IP address or DNS hostname. This address is used to show the path between it and the EDS-MD device when issuing the traceroute command. Protocol Select the traceroute protocol from the drop-down menu. -
Page 87: Memory
11: Maintenance and Diagnostics Settings <configitem name=”log”> Memory The memory information shows the total, used, and available memory (in kilobytes). To View Memory Usage Using Web Manager To view memory information, click Diagnostics in the menu and select Memory. Using the CLI To enter the command level: enable ->... -
Page 88: System Settings
11: Maintenance and Diagnostics Settings System Settings The EDS-MD device server system settings allow for rebooting the device, restoring factory defaults, uploading new firmware and updating a system’s short and long name. Note: Anytime you reboot the unit, this operation will take some time to complete. Please wait a minimum of 10-20 seconds after rebooting the unit before attempting to make any subsequent connections. -
Page 89: 12: Management Interface Settings
12: Management Interface Settings Command Line Interface Settings The Command Line Interface settings allow you to control how users connect to and interact with the command line of the EDS-MD device server. It is possible to configure access via the Telnet and SSH protocols, in addition to general CLI options. -
Page 90: Telnet Settings
12: Management Interface Settings Telnet Settings The Telnet settings control CLI access to the EDS-MD 4/8/16 device server telnet over the Telnet protocol. Table 12-2 Telnet Settings Telnet Settings Description Telnet State Select to enable or disable CLI access via Telnet Telnet Port Enter an alternative Telnet Port to override the default used by the CLI server. -
Page 91: To Configure Ssh Settings
12: Management Interface Settings To Configure SSH Settings Using Web Manager To configure SSH settings, click CLI in the menu and select Configuration. Using the CLI To enter the SSH command level: enable -> config -> cli -> ssh ... -
Page 92: To Export Configuration In Xml Format
12: Management Interface Settings XML Export Configuration Description Settings (continued) Groups to Export Check the configuration groups that are to be exported to the XML configuration record. The group list should be comma delimited and encased in double quotes. The list of available groups can be viewed with the “xcr list” command. Click Clear All to clear all checkmarks, or Select All but Networking to check all checkmarks except Networking. -
Page 93: Xml: Import Configuration
12: Management Interface Settings Using the CLI To enter the XML command level: enable -> xml Using XML Not applicable. XML: Import Configuration Here you can import a system configuration from an XML file. The XML data can be imported from a file on the file system or pasted into a CLI session. The groups to import can be specified at the command line, the default is all groups. -
Page 94: To Import Configuration In Xml Format
12: Management Interface Settings To Import Configuration in XML Format Using Web Manager To import configuration, click XML in the menu and select Import Configuration. Using the CLI To enter the XML command level: enable -> xml Using XML Not applicable. -
Page 95: 13: Updating Firmware
13: Updating Firmware Obtaining Firmware Obtain the most up-to-date firmware and release notes for the unit from the Lantronix Web site (www.lantronix.com/support/downloads/) or by using anonymous FTP (ftp://ftp.lantronix.com/). Loading New Firmware through Web Manager Upload the firmware using the device web manager System page. -
Page 96: Loading New Firmware Through Ftp
13: Updating Firmware 5. Click OK in the confirmation popup which appears. The firmware will be installed and the device will automatically reboot afterwards. 6. Close and reopen the web manager internet browser to view the device’s updated web pages. Note: You may need to increase HTTP Max Bytes in some cases where the browser is sending data aggressively within TCP Windows size limit when file (including firmware... -
Page 97: 14: Branding The Eds-Md Device
14: Branding the EDS-MD Device This chapter describes how to brand your EDS-MD device server by using Web Manager and Command Line Interface (CLI). It contains the following sections on customization: Web Manager Customization Short and Long Name Customization ... -
Page 98: Short And Long Name Customization
14: Branding the EDS-MD Device Short and Long Name Customization You can customize the short and long names in your EDS-MD device server. The names display in the CLI show command and in the System web page in the Current Configuration table. The short name is used for the show command. -
Page 99: Appendix A: Lantronix Technical Support
Appendix A: Lantronix Technical Support Lantronix offers many resources to support our customers and products at http://www.lantronix.com/support. For instance, you can ask a question, find firmware downloads, access the FTP site and search through tutorials. At this site you can also find FAQs, bulletins, warranty information, extended support services and product documentation. -
Page 100: Appendix B: Binary To Hexadecimal Conversions
Appendix B: Binary to Hexadecimal Conversions Many of the unit's configuration procedures require you to assemble a series of options (represented as bits) into a complete command (represented as a byte). The resulting binary value must be converted to a hexadecimal representation. Use this chapter to learn to convert binary values to hexadecimals or to look up hexadecimal values in the tables of configuration options. -
Page 101: Figure B-2 Windows Scientific Calculator
Appendix B: Binary to Hexadecimal Conversions Figure B-2 Windows Scientific Calculator 4. Click Hex. The hexadecimal value appears. Figure B-3 Hexadecimal Values in the Scientific Calculator EDS-MD® Medical Device Server User Guide... -
Page 102: Appendix C: Compliance
Lantronix, Inc. 7535 Irvine Center Drive Suite 100 Irvine, CA 92618, USA Product Name Model: Lantronix® EDS-MD® 4, EDS-MD 8 and EDS-MD 16 Port Device Servers Conform to the following standards or other normative documents: Table C-1 Applicable Medical Standards Emissions... -
Page 103: Figure C-3 Suppliers Declaration Of Conformity
Figure C-3 Suppliers Declaration of Conformity EDS-MD® Medical Device Server User Guide... -
Page 104: Figure C-4 Eu Declaration Of Conformity
Figure C-4 EU Declaration of Conformity EDS-MD® Medical Device Server User Guide... - Page 105 Manufacturer's Contact: Lantronix 7535 Irvine Center Drive Suite 100 Irvine, CA 92618, USA Tel: 949-453-3990 Fax: 949-453-3995 RoHS, REACH and WEEE Compliance Statement Please visit http://www.lantronix.com/legal/rohs/ for Lantronix’s statement about RoHS, REACH and WEEE compliance. EDS-MD® Medical Device Server User Guide...
-
Page 106: Appendix D: Lantronix Power Cords, Cables, Adapters And Serial Port Pinouts
Appendix D: Lantronix Power Cords, Cables, Adapters and Serial Port Pinouts Lantronix cables and adapters for use with EDS-MD 4, EDS-MD 8 and EDS-MD 16 medical device servers are listed here according to part number and application. Cables and Adapters... -
Page 107: Adapters And Serial Port Pinouts
Adapters and Serial Port Pinouts Figure 18-2 RJ45 Pinout Diagram Figure R-3 RJ45 Receptacle to DB25M DTE Adapter (PN 200.2066A) EDS-MD® Medical Device Server User Guide... -
Page 108: Figure R-4 Rj45 Receptacle To Db25M Dce Adapter (Pn 200.2073)
Figure R-4 RJ45 Receptacle to DB25M DCE Adapter (PN 200.2073) Figure R-5 RJ45 Receptacle to DB25F DTE Adapter (PN 200.2067A ) EDS-MD® Medical Device Server User Guide... -
Page 109: Figure R-6 Rj45 Receptacle To Db25F Dce Adapter (Pn 200.2074)
Figure R-6 RJ45 Receptacle to DB25F DCE Adapter (PN 200.2074) Figure R-7 RJ45 Receptacle to DB9M DTE Adapter (PN 200.2069A) EDS-MD® Medical Device Server User Guide... -
Page 110: Figure R-8 Rj45 Receptacle To Db9M Dce Adapter (Pn 200.2071)
Figure R-8 RJ45 Receptacle to DB9M DCE Adapter (PN 200.2071) Figure R-9 RJ45 Receptacle to DB9F DTE Adapter (PN 200.2070A) EDS-MD® Medical Device Server User Guide... -
Page 111: Figure R-10 Rj45 Receptacle To Db9F Dce Adapter (Pn 200.2072)
Figure R-10 RJ45 Receptacle to DB9F DCE Adapter (PN 200.2072) Figure R-11 RJ45 to RJ45 Adapter (ADP010104-01) Note: The cable ends of the ADP010104-01 are an RJ45 socket on one end and a RJ45 plug on the other instead of RJ45 sockets on both ends. EDS-MD®...
