5. Unpacking
5.3 Positioning and unpacking
To position and unpack the UPS please follow this procedure:
1. Take the UPS to the place of installation with a forklift truck and/or a transpallet of a suitable capacity and type;
2. Remove the film and cardboard protecting the UPS;
3. Lower the 4 adjustable feet under the UPS base until the 2 side L-shaped supports are slightly raised, including the
wood fixed to them;

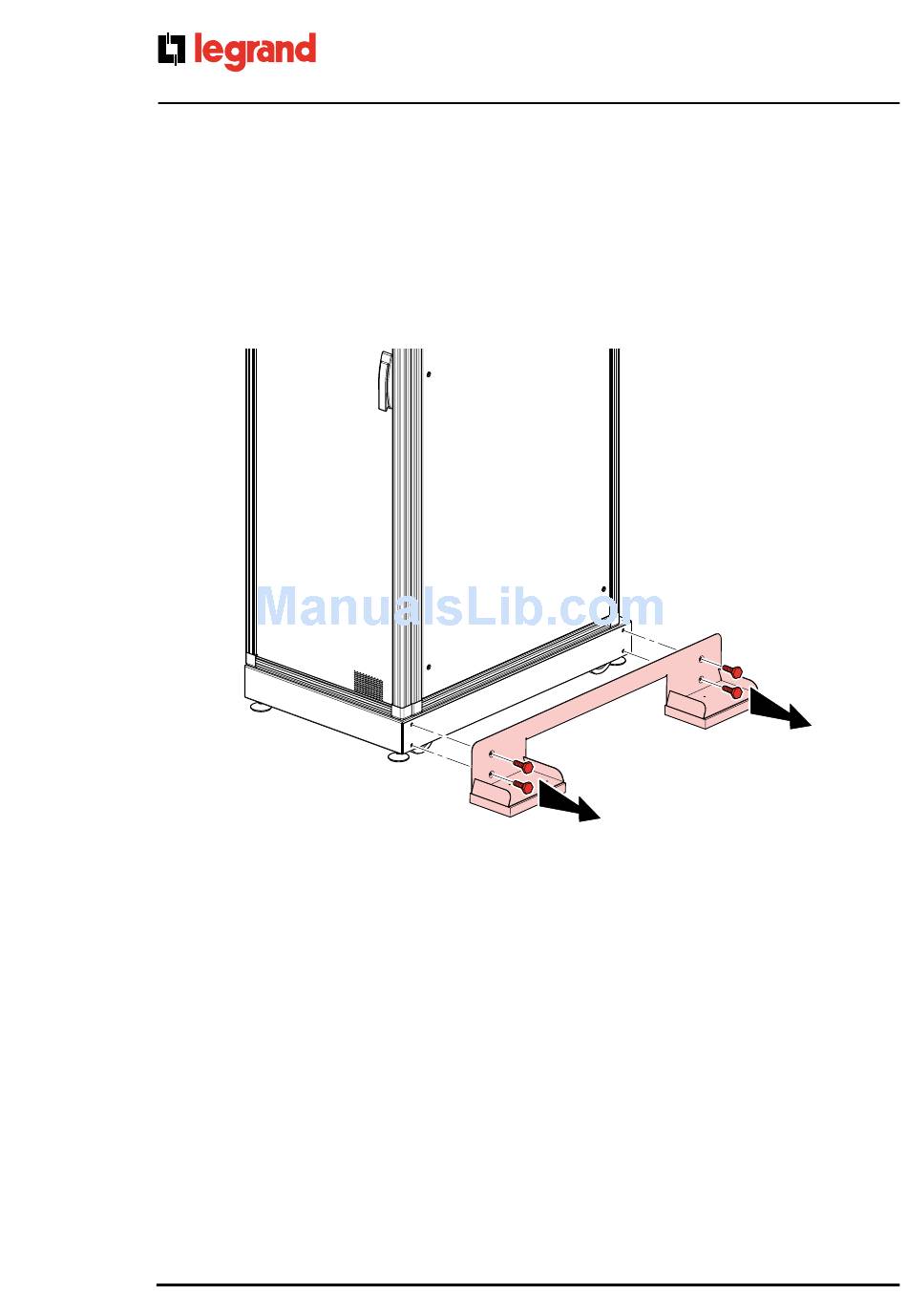

4. Remove the 2 side L-shaped supports by undoing the 4 screws on each side securing it to the UPS base;
5. If it is necessary moving the UPS to position it better, lift the 4 feet until the UPS is resting on the wheels;
6. Check perpendicularity and level of the UPS with the floor with a suitable instrument (by adjusting the feet):
Please note: lock the 4 feet with the check nut;
7. Mount the 2 side base strips with the screws supplied.
5.4 Checking the contents of the pack
Below is a list of the materials supplied. The list is general. Please refer to the packing list for shipment details.
Archimod® INVERTER
- No. 1 UPS Archimod® unit;
- No. 1 bag of accessories with a set of screws for installing the unit correctly;
- No. 2 base strips for side closing;
- Operating and maintenance manual;
- International guarantee.
Archimod® BATTERY
- No. 1 Archimod® BATTERY cabinet;
- Operating and maintenance manual;
- No. 1 bag containing fuses and keys for the front door.
Note: the power modules and battery boxes are shipped separately and must be installed after the equipment has been
definitively positioned in the place of installation.
