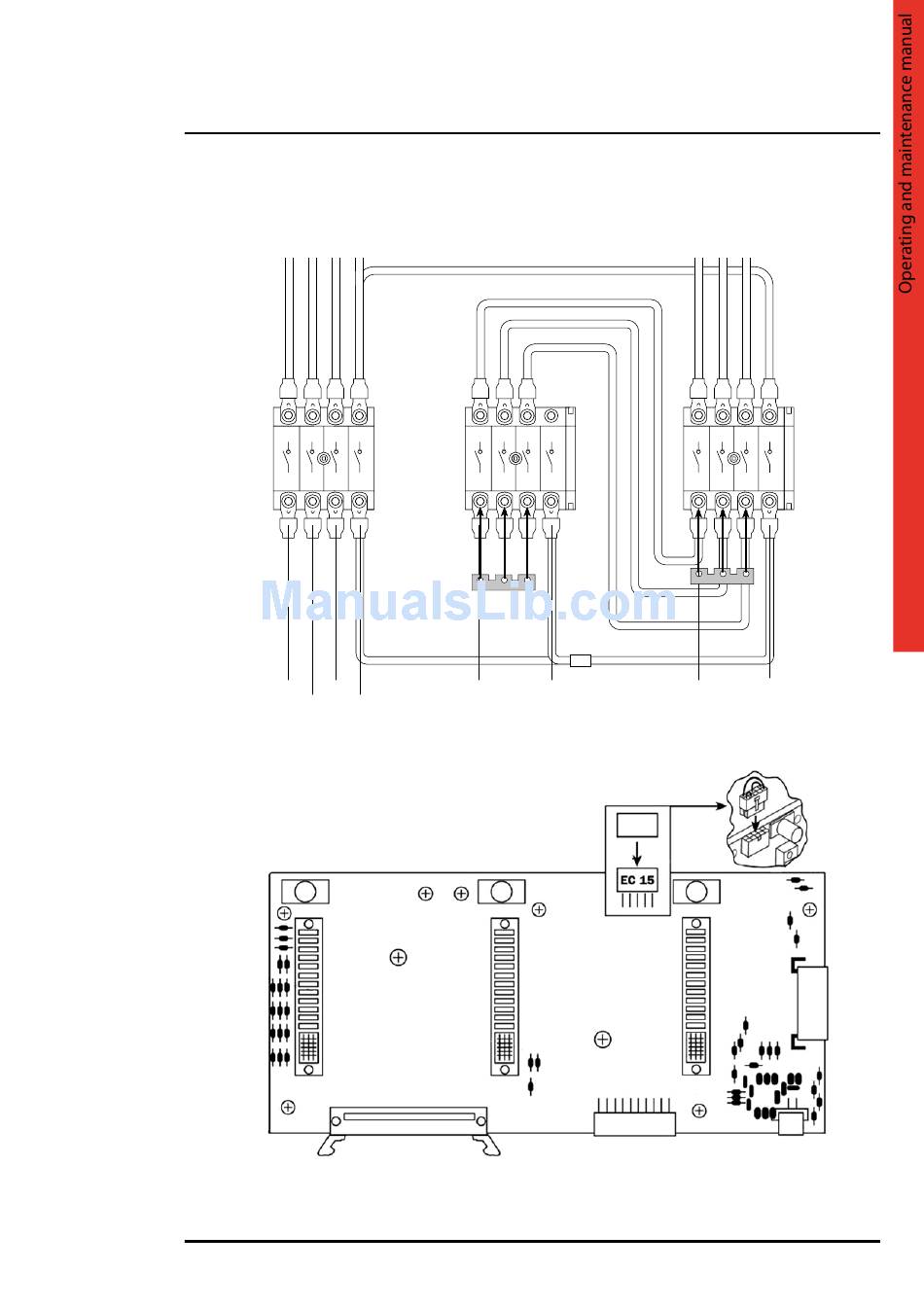

Archimod® 20kVA-40kVA Three-phase/Single-phase UPS (with separate bypass line)
L1in
L3in
Nin
L2in
Archimod® UPS back panel - Plugging in the EC15 connector
brown
blue
blue
brown
black
grey
blue
L1byp
Nbyp
Archimod®
blue
L1out
Nout
blue
L1out
Nout
39
