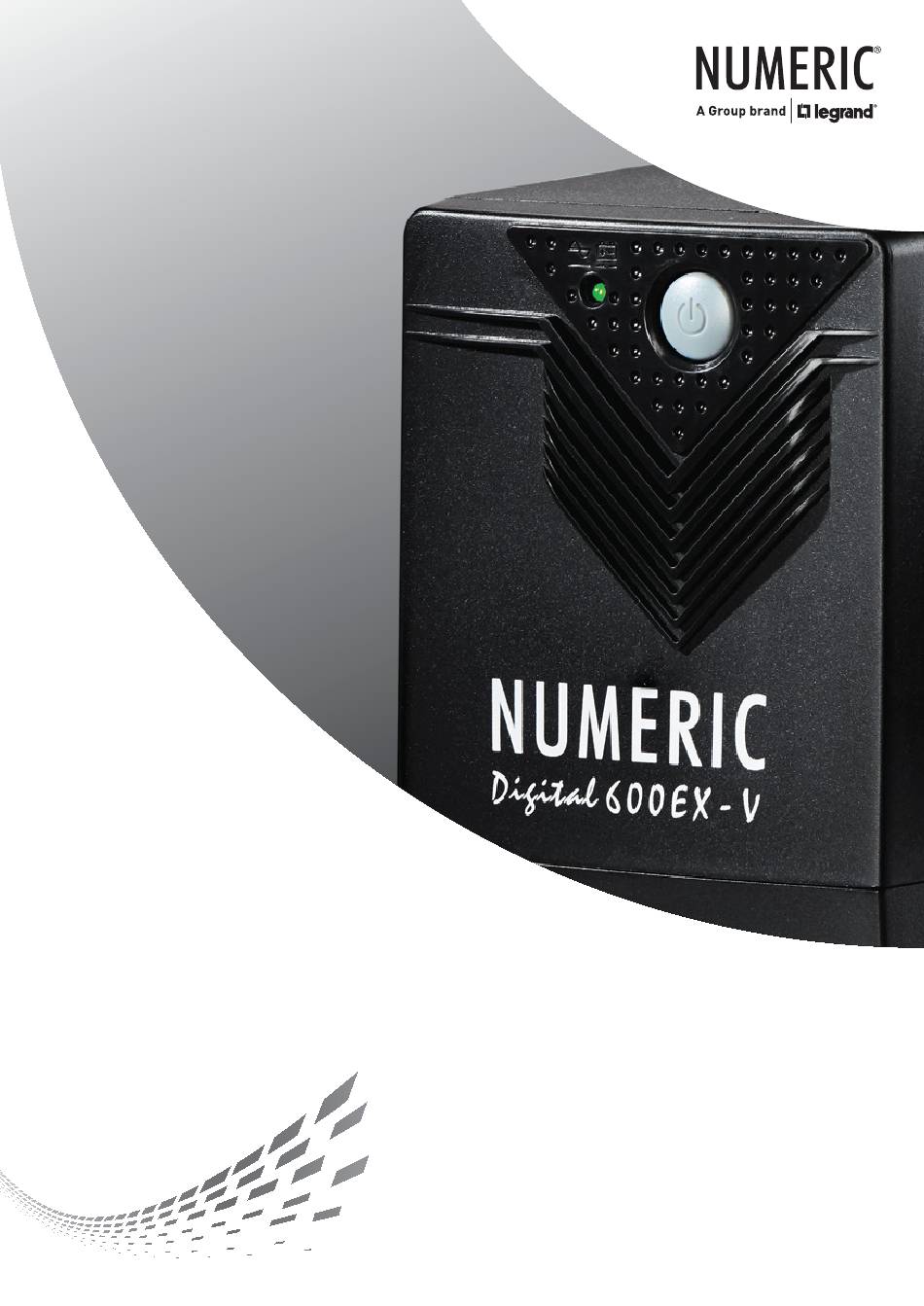

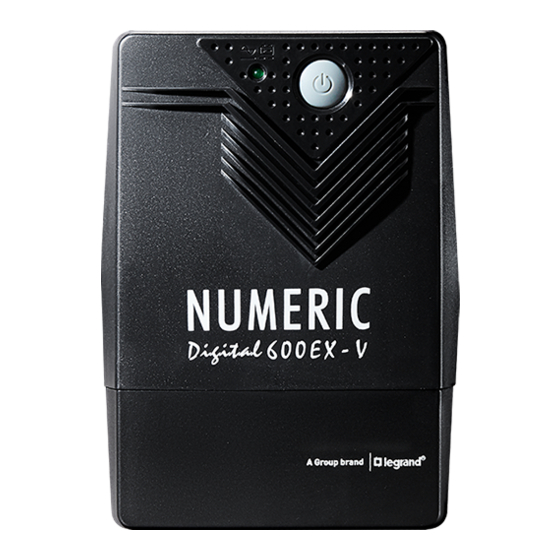

- Page 1 USER MANUAL Digital 600 EX V NEW ENERGY TO POWER www.numericups.com...
- Page 2 CONGRATULATIONS! We are delighted to welcome you to our family of customers. Thank you for choosing Numeric as your reliable power solution partner, you now have access to our widest network of 250+ service centers in the country. Since 1984, Numeric has been enabling its clients to optimize their business with top-notch power solutions that promise seamless and clean power with controlled environmental footprints.
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Save these instructions: This manual contains important instructions for the model Digital 600 EX V that should be followed during installation and maintenance of the UPS and batteries. • This UPS utilizes voltages that may be hazardous. •... -
Page 4: System Description
SYSTEM DESCRIPTION Front panel Back panel 1. Power switch 1. Output receptacles 2. Status indicator 2. AC input AC Mode: solid green LED Battery Mode: 3. Fuse (option) flashing green LED INSTALLATION AND OPERATION 1. Inspection 2. Placement Install the UPS unit in any protected environment Remove the UPS from its packaging and inspect it for that provides adequate airflow around the unit, and damage that may have occurred during shipping. -
Page 5: Green Power Function
3. Charging 4. Connection This unit is shipped from the factory with its internal Plug the UPS into a 2-pole, 3-wire grounded battery fully charged, however, some charge may be receptacle. Then connect one computer related device lost during shipping and the battery should be into each of the power receptacles supplied on the recharged prior to use. -
Page 6: Specification
SPECIFICATION Model Description Digital 600 EX V Capacity VA/W 600 VA/360 W Input Voltage range 140-300 Vac Frequency 50 Hz Output Voltage 190-253 Vac Voltage regulation (Batt. mode) 230 Vac +/- 10% Frequency regulation (Batt. mode) 50 +/-1 Hz Waveform Modified sine wave Battery Battery type and number... -
Page 7: Troubleshooting
TROUBLE SHOOTING Use the following table to solve minor problems. If any abnormal situation occurs that are not listed above, please call service technician for assistance. Problem Possible cause Remedy 1. Battery weak Re-charge battery up to 4-6 hours No LED light on the front panel after pressing the 2. - Page 8 Head Office 10th Floor, Prestige Center Court, Office Block, Vijaya Forum Mall, 183, N.S.K Salai, Vadapalani, Chennai - 600 026. Phone: +91 44 4656 5555 Lucknow Pune Regional Offices 209/B, 2nd Floor, Cyber Heights, Pinacle 664 park avenue, 8th floor, New Delhi Vibhuti Khand, Gomti Nagar, Plot no 102+103, CTS No.
