KEOR T 208V
5-60 KVA
Operating Manual
LE10795AB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Keor T Series and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND Keor T Series

Summary of Contents for LEGRAND Keor T Series

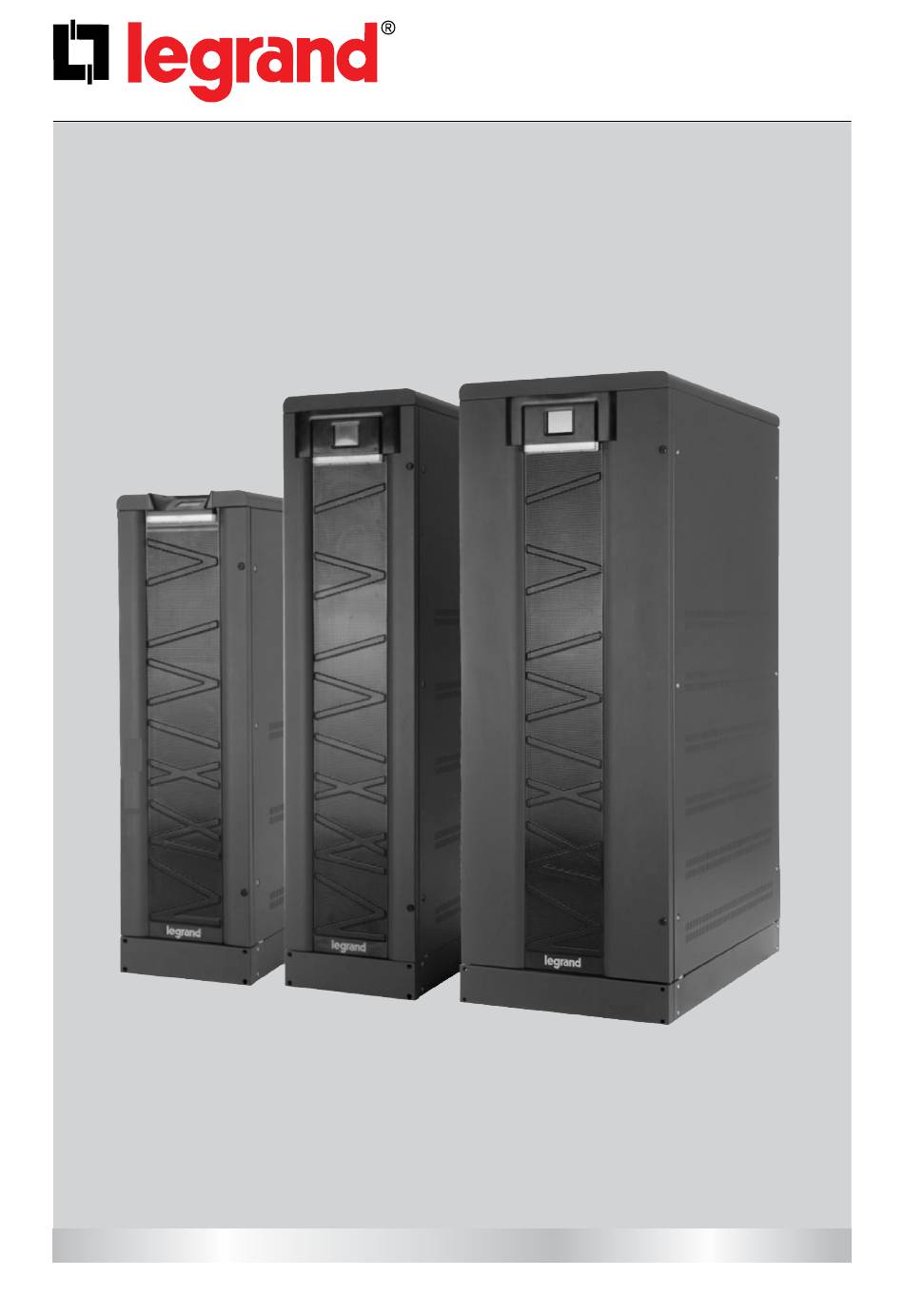

  • Page 1 KEOR T 208V 5-60 KVA Operating Manual LE10795AB...
  • Page 2 Important Notices! Thank you for choosing LEGRAND UPS System to supply your Critical Application. This manual contains important information about commissioning, usage and technical properties of the UPS. It also contains safety information for operator and instructions to secure your critical load. Applying the recommendation detailed in this manual is necessary to use UPS safely and correctly.
  • Page 3 KEOR T Description of the Symbols Used in the Manual This symbol points out the instructions which are especially important. This symbol points out the risk of electric shock if the following instruction is not followed. This symbol points out the instructions, which may result with injury of the operator or damage of the equipment if not followed.
  • Page 4 KEOR T...

  • Page 5: Table Of Contents

    KEOR T 1. FOREWORD 1.1. Overview 1.2. Manual 2. WARRANTY 2.1. Terms of Warranty 2.2. Out of Warranty Terms and Conditions 3. SAFETY 3.1. Important Notice for UPS 3.2. Important Notice for Battery 3.3. Description of the Symbols Used on the Labels Applied to the UPS 4.
  • Page 6 8. OPERATING PROCEDURES FOR PARALLEL SYSTEMS 8.1. Introduction 8.1.1. Redundancy 8.1.2. Power Increase 8.2. Procedure for Commissioning and Start-Up 8.3. Procedure for Decommissioning 9. TROUBLESHOOTING 9.1. Bypass voltage failure Alarm 9.2. Bypass phase sequence wrong Alarm 9.3. Inverter not sync. with bypass Alarm 9.4.

  • Page 7: Foreword

    This UPS aims to be efficient, functional, safe and very easy to install and use. LEGRAND has studied the best way to reconcile high-tech performance and ease of use, making “user friendly” technologi¬cally advanced products.
  • Page 8 Keep this manual in UPS’s front cover’s pocket for easy consultation! Reproduction, adaptation, or translation of this manual is prohibited without prior written permission of LEGRAND Company, except as allowed under the copyright laws. The manufacturer reserves the rights to change the technical specifications and design without notice.

  • Page 9: Warranty

    Out of Warranty Terms and Conditions This Warranty does not apply if: • UPS not commissioned or maintained by an authorized LEGRAND UPS Technical Service staff or an authorized LEGRAND distributor Technical Service staff • UPS not used according the terms of operating and installation manual •...

  • Page 10: Safety

    • Contact your local recycling or hazardous waste centre for information on proper disposal of the used battery or UPS. • In case of an extraordinary situation (damaged body, cabinet or connections, penetration of foreign materials into the body or cabinet etc.) deenergize the UPS immediately and consult to the LEGRAND Technical Assistance Centre. 3.2.

  • Page 11: Operation Modes

    KEOR T 4. Operation Modes Uninterruptible Power Supplies (UPS) most important function is the protection of critical and sensitive loads from the irregular mains voltage conditions. They are used to supply uninterruptible energy to these loads in such irregular mains voltage conditions and provide regulated energy supply to the equipment present in the IT room, industrial workshop, hospitals and offices.

  • Page 12: Battery Mode

    4.2. Battery Mode In this operation, energy is drawn from the batteries. The loads are supplied via inverter. Output voltage is sinusoidal and has a regulated amplitude and frequency. Battery voltage should be in acceptable limits and the inverter should be enabled for the UPS to operate in this mode.

  • Page 13: Bypass Mode

    Bypass Mode Operation voltage tolerance limit can be adjusted in certain ranges depends on the customer’s request on site by Legrand UPS Technical Service Personnel. To return to Bypass Mode Operation; the mains voltage should turn back to +5V above of lower limit,...

  • Page 14: Eco Mode

    4.4. Eco Mode Eco Mode Operation can be chosen through the Commands Menu. The purpose of using this mode is to increase the efficiency up to 98% and to provide energy saving; since the loads are supplied by the mains voltage directly, the loads are unprotected against any possible future risks.

  • Page 15: Human Machine Interface

    • Date • Language 2 Password protected menus for SETTINGS and COMMANDS; Password Authorizations User Password by default: 1111 Service Password: access only to LEGRAND UPS Technical Service Personnel • Options • Events Logs • Display Brightness • Output Voltage •...

  • Page 16: Colour Graphical Touchscreen

    5.1.1. Colour Graphical Touchscreen Energy Flow Diagram/Modes Of Operation Menus are displayed on LCD. The description of the symbols in the energy flow diagram: Bypass Input: If Bypass voltage is OK and synchronizes with inverter; it lits Green, If Bypass voltage is OK and not synchronizes with inverter;...
  • Page 17 KEOR T Operation Modes of UPS and Energy Flow Diagram; Online Mode: Frequency Converter Mode: Battery Mode: Bypass Mode: *Bypass Line is Orange...

  • Page 18: Ups Status Led Bar

    Eco Mode: *Bypass Line is Green Maintenance Bypass Mode: *Bypass Line is Orange and no battery charging No Operation: 5.1.2. UPS Status LED Bar Status LED Bar under the front panel gives information of current UPS status. You may see the colour code assigned for status of UPS; •...

  • Page 19: Menu

    KEOR T 5.2. Menu The related sub-menus under the main Menu can be reached by touching MENU icon while main screen image is displayed. They provide information to user about the measurements, about the UPS and status of UPS. By touching Back icon you may exit from the menu. You may see the sub-menus as shown below;...

  • Page 20: Measurements Menu

    5.2.2. Measurements Menu It provides useful measurements about the UPS and the load. You may scroll to right and left by touching right and left keys through Measurements menu. The screens of MEASUREMENTS menu are as below: Output load percentage, apparent power, real power and power factor information of each phase is displayed.

  • Page 21: Settings Menu

    KEOR T Bypass voltage (Ph-N) and frequency information of each phase are displayed. If the MAINS and AUX Supply are connected in COMMON, Rectifier and Bypass values will be the same. Rectifier voltage (Ph-N), current and frequency information of each phase are displayed. If the MAINS and AUX Supply are connected in COMMON, Rectifier and Bypass values will be the same.
  • Page 22 UPS gives audible warning when alarm occurs. Alarm voice can be disabled if requested. UPS gives audible echo when keyboard is used. Key voice can be disabled if requested. You can adjust brightness setting of LCD screen. save icon When you touch the key, a confirmation pop-up bar will appear.
  • Page 23 KEOR T There are 7 different alarms defined. By default one alarm is assigned to each relay; however this can be changed by the user. It is also possible to assign the same alarm to each of the 4 relays. You may set each relay via this menu.

  • Page 24: Diagnostics Menu

    You may choose the language package installed in UPS. When you touch the save icon key, a confirmation pop-up bar will appear. You should touch to save the settings. Touch to exit without saving the changes. save icon When you touch the key, a confirmation pop-up bar will appear.
  • Page 25 KEOR T You may see the logged events with time and date stamp. Events are stored in EEPROM using FIFO method. When you touch any event log, you may reach the details of it as you see on the side. Back [ Online ] Details...

  • Page 26: About Menu

    5.2.5. About Menu This menu provides information about the UPS itself. • UPS: UPS model and nominal power • Serial: UPS serial number • UPS output: UPS output voltage (Ph-N / Ph-Ph) and frequency • HMI version: Human Machine Interface version •...
  • Page 27 KEOR T Via this menu; you may choose operation mode of UPS as Online or Eco Mode. If system is configured as Single; you may choose operation mode of UPS Online or Eco Mode. When you touch the Save icon key, a confirmation pop-up bar will appear.

  • Page 28: Communication

    6. Communication Interface connectivity cards allow UPS to communicate in a variety of networking environments and with different type of devices. Standard and optional communication interfaces are listed below; Communication Interfaces Model (kVA) RS232 RS485 / MODBUS Dry Contacts Generator Interface Remote Emergency Switching Device (ESD) Interface Internal SNMP / Web Monitoring / e-mail External SNMP...
  • Page 29 KEOR T Communication Cable Path Figure.6-2 Communication Cables Path for 5-50kVA Keor T Figure.6-3 Communication Cables Path for 60kVA Keor T...

  • Page 30: Serial Communication (Rs232)

    6.1. Serial Communication (RS232) UPS is equipped with Serial Communication as standard. RS232 cable shall be shielded and shorter than 25m. RS232: DSUB-9 male connector with the following pin layout shall be used on the UPS side of the connection cable.

  • Page 31: Internal Snmp Communication

    KEOR T 6.2. Internal SNMP Communication Internal SNMP card can be installed into SNMP slot placed at the front of UPS. As soon as SNMP installed, RS232 port would be disabled. Internal SNMP has the same features as External SNMP; refer to Section 6.1 for more information. SNMP RS232 - RS485 NMP JUMPER (J2 –...

  • Page 32: Emergency Switching Device And Generator Connections

    6.3. Emergency Switching Device and Generator Connections Voltage to be applied to the digital inputs is 5VDC. Maximum current drawn by each input is 1mA. 5VDC supply provided on the communication interface board can be used to supply both digital inputs. Information Figure.

  • Page 33: Dry Contacts

    KEOR T 6.4. Dry Contacts There are 4 dry contact sockets on the Interface Board. The relays can be programmable from Relay Functions Settings menu (under menu). “General alarm, Input failure, Battery failure, Output failure, Bypass active, Output overload, High temperature” alarms can be assigned to the contacts. Each alarm can be assigned to separate relays but also one alarm may be assigned to all relays.

  • Page 34: Rs485

    6.5. RS485 RS485 with MODBUS protocol is used in a wide range of automation systems for Industrial Process monitoring or for Building Management Systems. This communication link allows monitoring UPS status and measurements with such systems. The RS485 differential line consists of three pins: •...

  • Page 35: Operating Procedures For Single Systems

    KEOR T 7. Operating Procedures For Single Systems 7.1. Preparations UPS is shipped with 3pcs of battery fast fuses in a plastic package attached to the front side of UPS. After all connections are completed as described in Keor T Installation Manual, the battery fuses must be placed as shown below.

  • Page 36: Commissioning

    Switch the output circuit breaker on the distribution panel to “ON” position. Afterwards UPS starts to supply the loads. 7.2.2. Start-Up UPS with LEGRAND External Battery 1. Put the battery fast fuses into the battery circuit breaker on the UPS (F5). Do not close the circuit breaker yet! Switch the auxiliary supply circuit breaker on the distribution panel to “ON”...

  • Page 37: Decommissioning

    The loads will be continued to be supplied directly from the mains voltage. Some parts inside the UPS including terminals are still energized during maintenance bypass operation. All the maintenance operations should be done by authorized LEGRAND UPS Technical Service Personnel. During Maintenance Bypass operation; in case any mains voltage interruption occurs, all loads supplied downstream the UPS will be de-energized.

  • Page 38: Maintenance Bypass Decommissioning Instructions

    7.5. Maintenance Bypass Decommissioning Instructions In order to transfer the loads from Maintenance Bypass to UPS without interruption, do the following instruction respectively; Switch the auxiliary supply circuit breaker on the UPS (Q4) to “ON” position, after 30s check if fans are running.

  • Page 39: Operating Procedures For Parallel Systems

    Maximum of 6 identical power Keor T unit can be connected in parallel. You may see the block diagrams of Parallel Systems in Appendix-6: Description of UPS and Block Diagram. Parallel configuration must only be activated by LEGRAND UPS Technical Service Personnel.

  • Page 40: Procedure For Commissioning And Start-Up

    8.2. Procedure for Commissioning and Start-Up If the UPSs are not factory parallel configured; the initially started-up UPS will operate as master and the remaining UPS’s will operate as slave. According ID numbers defined for each UPS, Master and Slave messages should be observed on the LCD panel.

  • Page 41: Procedure For Decommissioning

    KEOR T CAUTION: Do not try to insert its communication cable while it is operating. The Redundancy System expects to have at least one more UPS than N value. Otherwise Lost” alarm. The same alarm shall also appear in case: it shall provide “Redundancy Load % >...

  • Page 42: Troubleshooting

    Input phase sequence wrong Alarm It means that phase sequence of common mains supply voltage is not OK. Phase sequence of common mains supply input should be changed. Please contact the LEGRAND Technical Assistance Centre. 9.5. Rectifier Not Sync. with Input Alarm Frequency of common mains supply voltage is beyond the frequency range of rectifier or common mains supply voltage is out of limit.

  • Page 43: Maintenance Bypass Active Alarm

    If fans failed or any other problem is identified, contact Legrand UPS Technical Service. If any other alarm occurs or if the above alarms cannot be cleared, contact Legrand UPS Technical Service. Please prepare the following information before you contact Legrand UPS Technical Service: •...

  • Page 44: Preventive Maintenance

    Residual voltage and high temperature metal parts inside even if the UPS is disconnected. Contact may cause electric shock and burns. All operations except replacing battery fuses shall be carried out by the authorized LEGRAND UPS Technical Service Personnel only.

  • Page 45: Fans

    The life of fans used to cool the power circuits depends on the usage and environmental conditions (temperature, humidity, dust, pollution) Please look at Appendix-4 Technical Specifications for detailed environment conditions. Preventive maintenance and replacement before end of life shall be done by authorized LEGRAND UPS Technical Service Personnel periodically. 10.4.

  • Page 46: Appendix-1: Alarms List

    Appendix-1: Alarms List Alarms Description Bypass voltage failure Bypass voltage is out of the limit Bypass phase sequence wrong Phase sequence of bypass mains voltage is not OK Frequency of bypass voltage is beyond the frequency range for online operation or bypass voltage is out of Inverter not sync.

  • Page 47: Appendix-2: Diagnostics List

    KEOR T Appendix-2: Diagnostics List Diagnostics Description Bypass active UPS is on Bypass operation. Bypass blocked Bypass is blocked by UPS Bypass disabled Bypass is disabled by user Eco mode active Eco mode is selected Battery test active Battery test is running now Battery discharging Rectifier overload and cannot feed DC enough or mains failure Ambient temperature high...

  • Page 48: Appendix-3: Event List

    Appendix-3: Event List Events Description Bypass voltage ok Bypass voltage is within its limit. Inv. sync. with Byp. Frequency of bypass mains voltage synchronized with output frequency. Byp. ph. seq. ok Phase sequence of bypass mains voltages is OK. M. Bypass passive Manual bypass switch is at “0”...
  • Page 49 KEOR T Inverter overload RMS current drawn from any of the output lines exceeds its nominal value. Bypass active UPS is on Bypass Operation. Inverter passive Inverter does not operate now. Output voltage failure Output voltage is beyond its limits Master com.

  • Page 50: Appendix-4: Technical Specifications

    Appendix-4: Technical Specifications KEOR T KEOR T KEOR T KEOR T KEOR T KEOR T KEOR T KEOR T KEOR T Tower Model (3Ph/3Ph) 5KVA 7.5KVA 10KVA 15KVA 20KVA 30KVA 40KVA 50KVA 60KVA Output Power (VA) 5.000 7.500 10.000 15.000 20.000 30.000 40.000...
  • Page 51 Options Galvanic Isolation Transformer (Internal for 5-30kVA, External for 40-60kVA (on request) * Please contact Legrand or your local authorized distributor for optional communication interfaces. ** The manufacturer reserves the rights to change the Technical Specifications and design without notice.

  • Page 52: Appendix-5: Description Of Ups And Block Diagram

    Appendix-5: Description of UPS and Block Diagram Name Definition Common Mains Supply Circuit Breaker Output Circuit Breaker Maintenance Bypass Circuit Breaker Auxiliary Mains Supply Circuit Breaker Battery Fast Fuse Inrush Circuit Breaker Rectifier Fast Fuse Inverter Fast Fuse KREC Rectifier Contactor KINV Inverter Contactor KBYP...
  • Page 53 KEOR T SEPARATED RECTIFIER AND BYPASS INPUTS FOR SINGLE UPS UNIT (5-30kVA)
  • Page 54 SEPARATED RECTIFIER AND BYPASS INPUTS FOR SINGLE UPS UNIT (40-60kVA)
  • Page 55 KEOR T COMMON RECTIFIER AND BYPASS INPUTS FOR SINGLE UPS UNIT (5-30kVA)
  • Page 56 COMMON RECTIFIER AND BYPASS INPUTS FOR SINGLE UPS UNIT (40-60kVA)
  • Page 57 KEOR T TWO PARALLEL UNITS 1+1 Redundant Configuration with Dual Distribution Input (5-30kVA) a1, a2: Mains Supply MCCB 4p Distribution MCCB b1, b2: Auxiliary Supply MCCB 4p o1, o2, unit output switch 4p NOTE : Internal Maintenance Bypass can be used when total load < single unit rating (kVA) o1, o2= Option unit output disconnect switch to enable single unit complete shut down for maintenance...
  • Page 58 TWO PARALLEL UNITS 1+1 Redundant Configuration with Dual Distribution Input (40-60kVA) a1, a2: Mains Supply MCCB 4p Distribution MCCB b1, b2: Auxiliary Supply MCCB 4p o1, o2, unit output switch 4p NOTE: Internal Maintenance Bypass can be used when total load < single unit rating (kVA) Option o1, o2= unit output disconnect switch to enable single unit complete shut down for maintenance...
  • Page 59 KEOR T TWO PARALLEL UNITS 1+1 Redundant Configuration with Single Distribution Input (5-30kVA) a1, a2: Mains Supply MCCB 4p Distribution MCCB o1, o2 unit output switch 4p NOTE: Internal Maintenance Bypass can be used when total load < single unit rating (kVA) o1, o2= Option unit output disconnect switch to enable single unit complete shut down for maintenance...
  • Page 60 TWO PARALLEL UNITS 1+1 Redundant Configuration with Single Distribution Input (40-60kVA) a1, a2: Mains Supply MCCB 4p Distribution MCCB o1, o2 unit output switch 4p NOTE: Internal Maintenance Bypass can be used when total load < single unit rating (kVA) Option o1, o2= unit output disconnect switch to enable single unit complete shut down for maintenance...
  • Page 61 KEOR T THREE PARALLEL UNITS N+1 Redundant Configuration with Dual Distribution Input (5-30kVA) a1, a2, a3: Mains Supply MCCB 4p b1, b2, b3: Auxiliary Supply MCCB 4p Distribution MCCB o1, o2, o3 unit output switch 4p General output switch 4p External Maintenance Bypass MCCB 4p NOTE: External Maintenance Bypass MCCB...
  • Page 62 THREE PARALLEL UNITS N+1 Redundant Configuration with Dual Distribution Input (40-60kVA) a1, a2, a3: Mains Supply MCCB 4p b1, b2, b3: Auxiliary Supply MCCB 4p Distribution MCCB o1, o2, o3 unit output switch 4p General output switch 4p External Maintenance Bypass MCCB 4p NOTE: External Maintenance Bypass MCCB OS =...
  • Page 63 KEOR T THREE PARALLEL UNITS N+1 Redundant Configuration with Single Distribution Input (5-30kVA) a1, a2, a3: Mains Supply MCCB 4p Distribution MCCB o1, o2, o3 unit output switch 4p General output switch 4p External Maintenance Bypass MCCB 4p NOTE: External Maintenance By pass MCCB OS = general output disconnect switch Rating = N X unit rating (kVA)
  • Page 64 THREE PARALLEL UNITS N+1 Redundant Configuration with Single Distribution Input (40-60kVA) a1, a2, a3: Mains Supply MCCB 4p Distribution MCCB o1, o2, o3 unit output switch 4p General output switch 4p External Maintenance Bypass MCCB 4p NOTE: External Maintenance By pass MCCB OS = general output disconnect switch Rating = N X unit rating (kVA)
  • Page 65 Pro and Consumer Service BP 30076 - 87002 LIMOGES CEDEX FRANCE www.legrand.com Installer stamp Legrand reserves at any time the right to modify the contents of this booklet and to communicate, in any form and modality, the changes brought to the same.
