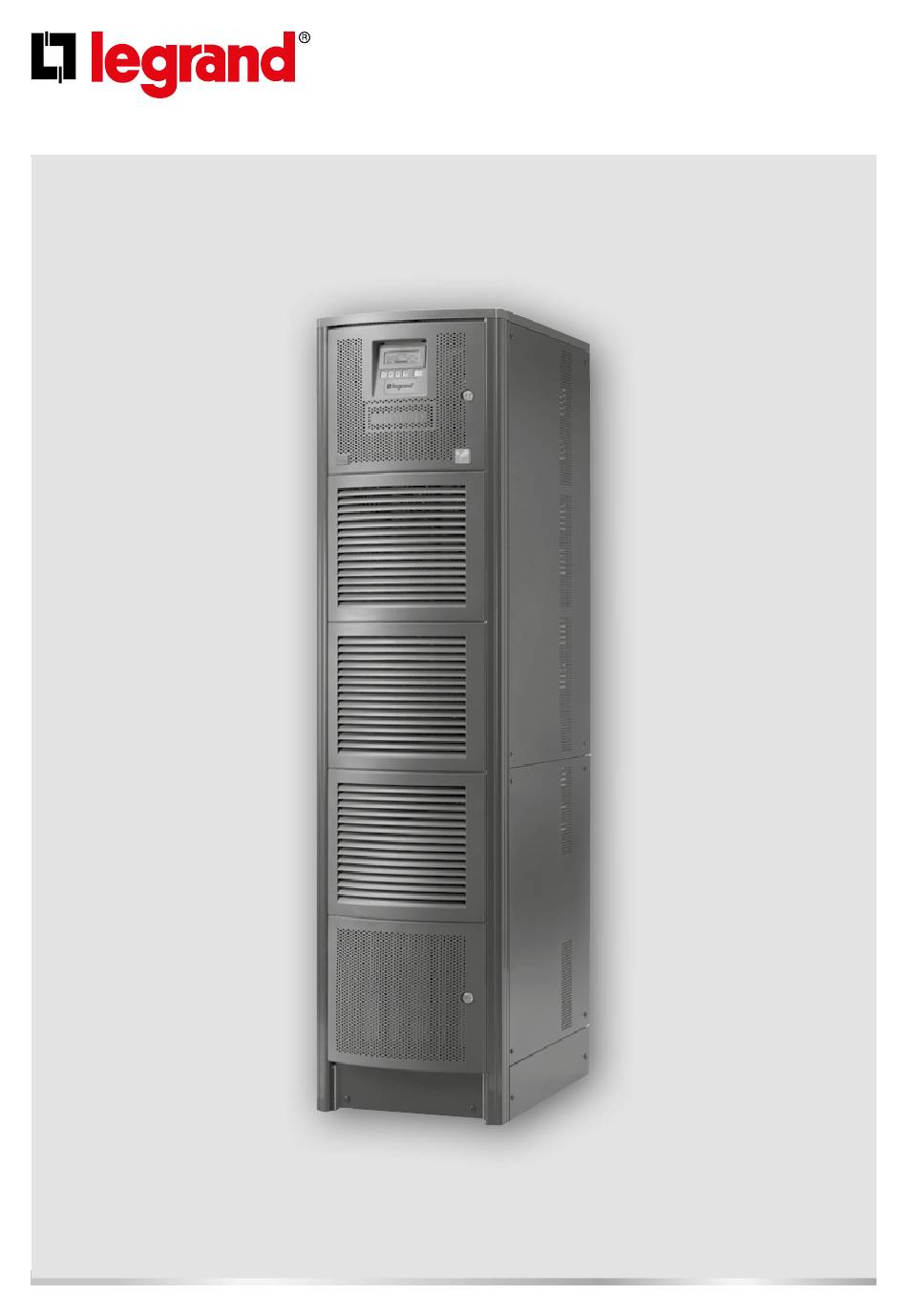

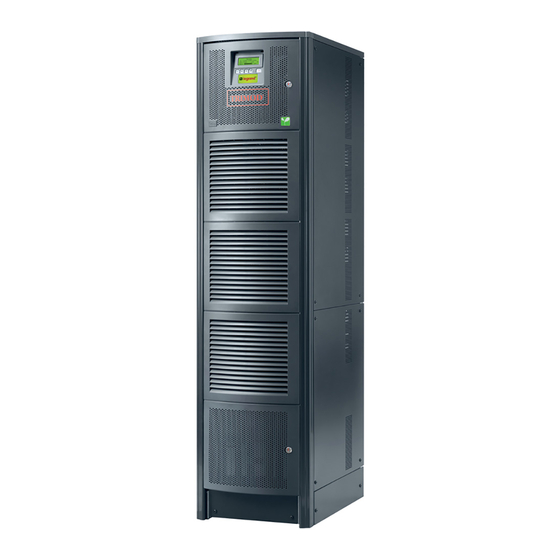

  • Page 1 Trimod HE® User manual Item LE11916AA-11/19-01 CT...
  • Page 2 Trimod HE® ENGLISH...

  • Page 3: Table Of Contents

    2.5 Signs on the equipment 2.6 General warnings 2.7 How to proceed in an emergency 2.7.1 First-aid procedures 2.7.2 Fire procedures 3. Technological description 3.1 Trimod HE technology 3.2 Features 4. Unpacking and positioning 4.1 Visual check 4.1.1 Equipment check 4.2 Unpacking 4.3 Check of the content...
  • Page 4 Contents 5. Control panel 5.1 Description 5.2 Service Mode 5.3 Main screen 5.4 Main menu and submenu 5.4.1 UPS Status 5.4.2 UPS Setup 5.4.3 Power Modules 5.4.4 Events 5.4.5 Tools 5.4.6 Log Out 5.5 POWER ON/OFF menu 5.6 Switching off the UPS 5.7 Switching on the UPS 6.

  • Page 5: Introduction

    Thanks to this UPS, your critical equipment will always be protected by a constant and reliable electricity supply. LEGRAND is specialized in designing and producing UPS. Trimod HE is unique in its kind: it is modular, redundant and belongs to the last generation of high power UPS.

  • Page 6: Where And How To Keep The Manual

    The Manufacturer declines all indirect or direct responsibility arising from: - assembly and cabling made by personnel not qualified and authorized by LEGRAND and not fully qualified according to national standards to work on equipment presenting electrical hazards;...

  • Page 7: Guarantee Terms

    The guarantee terms may vary depending on the country where the UPS is sold. Check the validity and duration with LEGRAND's local sale representative. If there should be a fault in the equipment, contact the LEGRAND Technical Support Service which will provide all the instructions on what to do.

  • Page 8: Regulatory And Safety Requirements

    2. Regulatory and safety requirements DANGER Before carrying out any operation on the equipment, it is necessary to read the entire manual carefully, especially this chapter. Keep the manual in a safe place and consult it repeatedly during the use of the UPS. General notes The equipment has been made for the applications given in the manuals.

  • Page 9: Personal Protective Equipment

    Trimod HE Personal Protective Equipment DANGER The UPS poses a considerable risk of electric shock and a high short circuit current. During use and maintenance operations, it is forbidden to operate without the equipment listed in this paragraph. People responsible for operating this equipment and/or passing close to it must not wear garments with flowing sleeves, nor laces, belts, bracelets or other metal pieces that might cause a danger.

  • Page 10: Signs On The Equipment

    The UPS works with dangerous voltages. Only SKILLED TECHNICIANS shall perform all installation and ordinary mainte- nance operations. No part of the equipment can be repaired by the operator. Extraordinary maintenance operations must be carried out by LEGRAND Technical Support Service personnel. WARNING A battery can present a risk of electrical shock and high short circuit current.
  • Page 11 +40°C (+104°F) and the relative humidity must be a maximum of 95% not condensing. CAUTION Trimod HE 10 is a category C2 UPS product. In a residential environment, this product may cause radio interference, in which case the user may be required to take additional measures.

  • Page 12: How To Proceed In An Emergency

    2. Regulatory and safety requirements How to proceed in an emergency The following information are general. For specific interventions consult the regulations in force in the country where the equipment is installed. 2.7.1 First-aid procedures When administering first aid, adhere to the company rules and the usual procedures. 2.7.2 Fire procedures Do not use water to quench fires but just the extinguishers specially designed for putting out fires on electrical equipment.

  • Page 13: Technological Description

    Trimod HE is a modular uninterrupted power supply whose base module is the single phase power type and it can be programmed to obtain the desired input/output configuration. It is thus possible to manage three phase and single phase voltages on input and output to have a choice of the the traditional three phase/three phase, three phase/single phase, single phase/three phase and single phase/single phase.
  • Page 14 3. Technological description CM 0 PM 0 PM 1 PM 2 CM 1* PM 3 PM 4 PM 5 Trimod HE 30 TT/TM Trimod HE 40 CM 0 PM 0 PM 1 PM 2 CM 1 PM 3 PM 4...

  • Page 15: Features

    - compactness. Efficiency The Trimod HE UPS concentrate particularly on both the energy absorbed from the mains and the energy provided to the load. They are characterised by high efficiency (up to 96%), PF on input>0.99, THDi <3%. The advantages of a high efficiency are: - reduction of the power absorbed from the UPS but not supplied to the load and transmitted to the environment as heat;...
  • Page 16 Dual input Trimod HE has two input disconnectors, one for the mains and the other for powering the load by means of a bypass line completely indipendent from the mains. The two lines are interconnected by default and they may be rendered indipendent during the installation or commissioning of the equipment (the neutral cables of the two lines must be in common).
  • Page 17 ECO MODE One functioning mode of the Trimod HE UPS is called “eco mode”. With this mode it is possible to save energy while guaranteeing uninterruptability of the power supply to the load connected. During the functioning in eco mode, the load is powered directly from the electrical mains through the automatic bypass circuit inside the power modules.

  • Page 18: Unpacking And Positioning

    - the documentation accompanying the equipment includes the installation and user manuals. In case of discrepancy, immediately inform the LEGRAND Technical Support Service before commissioning the equipment. Unpacking To remove the packaging material, comply with the icons on the outside of the box and observe the following procedure: 1.

  • Page 19: Movement

    The equipment must always be handled by trained and instructed personnel equipped with the Personal Protective Equipment illustrated in chapter 2. The Trimod HE UPS has wheels at the back of the cabinet. Before installation and while it is still empty, it can be moved by hand by at least two people.

  • Page 20: Control Panel

    5. Control panel Description WARNING The control panel allows to access some configuration pages of the UPS menu. Only a skilled technician (paragraph 2.2.1) is authorized to modify the configuration set during the installation. Wrong settings could lead to injury or material damage to the equipment and the things around it. The control panel is in the front part of the UPS and consists of an LCD display with 4 x 20 character rows, a backlit multicolour status indicator and a five keys keyboard.

  • Page 21: Service Mode

    Trimod HE Service Mode This is the functioning mode necessary to make the setup during the installation and to manage the software updating of the command boards and power modules. To access this mode, press the ENTER key with the the UPS off until the display shows the text "Service Mode..." At the end of the start-up procedure, press the ENTER key to access the navigation menu.
  • Page 22 5. Control panel MAIN PAGE DATA DISPLAYED 5 load availability on output 1st line: Functioning status of the UPS. If the text is "TRIMOD", the UPS is functioning properly 2nd line: Phase L1 - power in kVA or in Watt compared with the nominal power or current compared with the rated or relative percentage 3rd line: Phase L2 - power in kVA or in Watt compared with the...

  • Page 23: Main Menu And Submenu

    Trimod HE Main menu and submenu Press the ENTER key on the main screen of the display to access the menu of the UPS. The main screen has the following items: - UPS Status: it allows to check the UPS status in real time;...

  • Page 24: Ups Status

    5. Control panel 5.4.1 UPS Status Model Equipment model (TRIMOD) SYNC. address Synchronisation address of the command board Number of CM Number of command boards recognised Max VA Maximum apparent power[kVA] Max W Maximum active power [kW] UPS Info Max Ichg Maximum current available to charge the batteries [A] SW Ver.
  • Page 25 Trimod HE Power Absorbed input active power on phase X [W] Appar. Power Absorbed input apparent power on phase X [VA] Vrms Effective input voltage of phase X [V rms] Vrms bypass Effective input voltage of phase X of bypass line of the UPS [V rms]...

  • Page 26: Ups Setup

    5. Control panel Alarms Alarm Log. See chapter 6. INDICATION To scroll through the list of alarms, press the ARROW UP and ARROW DOWN keys. UPS RunTime Total UPS runtime OnBatteryTime Total UPS untime on battery mode This Batt. Total UPS runtime with the batteries currently installed CHG Runtime Total battery charger runtime DrainedOut N.
  • Page 27 Trimod HE Voltage This sets the output voltage value [V] This makes it possible to set the output frequency Nominal value (50 Hz or 60 Hz) independently of the input Value (*) frequency. Frequency If enabled, the UPS detects the frequency of the input Auto voltage and synchronises the output to the same value.
  • Page 28 5. Control panel If enabled, the UPS manages the bypass intervention automatically. If disabled, the UPS never switches to bypass mode so in the case of an Bypass Enable extended overload or in the case of failure and absence of redundancy, the UPS turns off.
  • Page 29 Trimod HE Language This sets the language on the display Buzzer This enables/disables all the sound signals Keyboard Beep This enables/disables the sound made by key presses Locked turn off (*) If enabled, the password is required to shutdown the UPS...

  • Page 30: Power Modules

    5. Control panel 5.4.3 Power Modules Mod. Model of power module X SW Ver Version of the firmware inside power module X HW Ver Hardware version of power module X PM Info X Serial number of power module X Max VA Maximum apparent power available for power module X [VA] Max W Maximum active power available for power module X [W]...
  • Page 31 Trimod HE Voltage Battery voltage detected by power module X [V] Current required to the batteries by power module X Battery X Current (negative if the batteries are charging) [A] Charger Status of the battery charger inside power module X INV HSink Temperature of power module X Invertor heat sink [°C]...

  • Page 32: Events

    By choosing a password, it is necessary to enter a private session to modify the UPS settings. At the end of the operations use the "Log Out" menu to leave the private session. If the password has been forgotten, it is necessary to contact the LEGRAND Technical Support Service.

  • Page 33: Power On/Off Menu

    Trimod HE POWER ON/OFF menu When the UPS is on, it is possible to access a menu called POWER ON/OFF by pressing the ON/OFF button for less than 0,5 seconds. The choices that can be made in this menu are the following: Press the ENTER key to access the submenu in which it is possible to choose whether to turn phase L1 on or off independently of the others.

  • Page 34: Diagnosis

    Some luminous notifications can be accompanied by an audible signal. To turn off the audible notification, press the ESC key. On every subsequent press, the notification is silenced or enabled. INDICATION If it is not possible to solve the problem, contact the LEGRAND Technical Support Service. STATUS POWER MODULE...
  • Page 35 STATUS POWER MODULE AUDIBLE STATUS UPS STATUS DESCRIPTION AND INDICATOR NOTIFICATION MESSAGE OPERATING ADVICE ORANGE GREEN Make Contact the LEGRAND Technical Long intermittent Steady Maintenance Support Service ORANGE GREEN Check A skilled technician must Long intermittent Steady Batteries check the batteries status...

  • Page 36: Messages

    This paragraph shows the messages that appear on the control panel display or in the event list (see paragraph 5.4.4) and the probable cause that could have generated them. INDICATION If it is not possible to solve the problem, contact the LEGRAND Technical Support Service. FIRST ROW OF THE MAIN SCREEN MESSAGE...
  • Page 37 The voltage of the batteries is out of control. A skilled technician must check BATTERY RUNAWAY the status of the batteries and of the battery charger. The 3V battery of the command board is dead. Contact the LEGRAND Technical 3V Battery Fail Support Service.
  • Page 38 OVERLOAD The load is higher than the rated power of the UPS. HVBUS RUNAWAY Contact the LEGRAND Technical Support Service A skilled technician must check that there is not a faulty power module or a OUTPUT DC LEVEL ERROR voltage backfeed from the output BATTERY VOLTAGE TOO HIGH Battery voltage too high.
  • Page 39 One or more power modules are not compatible with the UPS. Invalid PM HW Versions! Contact the LEGRAND Technical Support Service. An error has occurred during the start-up procedure of the UPS. START-UP Error! Contact the LEGRAND Technical Support Service.
  • Page 40 Overload Overload. Check the load level connected to the UPS. H.V.Bus Runaway Failure Contact the LEGRAND Technical Support Service A skilled technician must check that there is not a faulty power module or a Output DC Level voltage backfeed from the load Battery voltage too high Battery voltage too high.
  • Page 41 Communication failure Communication error among the command boards. Contact the LEGRAND between CM Technical Support Service. A backfeed error has been detected. Contact the LEGRAND Technical Support Backfeed Service. Abnormal battery drain Abnormal battery drain. Contact the Legrand Technical Support Service.
  • Page 42 The UPS has started-up the hot-swap mode Exit From Hot Swap The UPS has exited the hot-swap mode Event list erased The event list has been erased Battery replaced The batteries have been replaced by the LEGRAND Technical Support Service...

  • Page 43: Maintenance

    Contact a skilled technician if it is necessary to replace or add power modules, battery drawers or external battery cabinets. Extraordinary maintenance Contact the LEGRAND Technical Support Service if there are failures that require the access to internal parts of the UPS.

  • Page 44: Warehousing

    A SKILLED TECHNICIAN must check that there is no voltage present before disconnecting the cables. All the battery breakers on the UPS and on the external battery cabinets must be open. The battery drawers of the Trimod HE MODULAR BATTERY (if present) and of the UPS (according to the model) must be removed.

  • Page 45: Dismantling

    Trimod HE 9. Dismantling DANGER Dismantling and disposal operations must be carried out only by a SKILLED TECHNICIAN (paragraph 2.2.1). The instructions in this chapter are to be considered indicative: in every country there are different regulations with regard to the disposal of electronic or hazardous waste such as batteries. It is necessary to strictly adhere to the standards in force in the country where the equipment is used.

  • Page 46: Technical Data

    10. Technical data Main features 3 104 22 3 104 23 3 104 23 3 104 25 3 104 24 3 104 26 3 104 27 3 104 73 3 104 31 3 104 33 3 104 32 3 104 68 3 104 34 3 104 71 3 104 72...
  • Page 47 Trimod HE Input electrical characteristics 3 104 22 3 104 23 3 104 23 3 104 25 3 104 24 3 104 26 3 104 27 3 104 73 3 104 31 3 104 33 3 104 32 3 104 68...
  • Page 48 10. Technical data Electrical output characteristics (normal mode) 3 104 22 3 104 23 3 104 23 3 104 25 3 104 24 3 104 26 3 104 27 3 104 73 3 104 31 3 104 33 3 104 32 3 104 68 3 104 34 3 104 71...
  • Page 49 Software - automatic shutdown of all the computers supplied by the UPS (if connected to TCP/IP network) Visit us at http://www.ups.legrand.com to download a copy of the software free of charge. Electronics against overloads, short-circuit and excessive battery discharge Block of functions due to the end of autonomy...
  • Page 50 10. Technical data Mechanical characteristics Empty power cabinets 3 104 68 3 104 71 3 104 72 3 104 22 3 104 23 3 104 23 3 104 24 3 104 25 3 104 26 3 104 27 10 kVA 15 kVA 20 kVA 30 kVA TT...
  • Page 51 Trimod HE Power cabinets with PM 3 103 96 3 104 08 3 104 14 3 104 18 3 104 19 3 104 20 10 kVA 15 kVA 20 kVA 30 kVA TT 40 kVA 60 kVA Net weight (kg)
  • Page 52 10. Technical data UPS (PM + batteries) 3 104 42 3 104 43 3 104 44 3 104 45 3 104 46 3 104 47 3 104 48 10 kVA 10 kVA 10 kVA 15 kVA 15 kVA 20 kVA 20 kVA Net weight (kg)
  • Page 53 Protection index IP 20 Operating height up to 1000 metres above sea level without derating Trimod HE 3 108 51 battery charger module (BCM) technical specifications Nominal input voltage 230 Vac + 15% - 20% Nominal input voltage 19.3 A Input power factor PF >...
  • Page 55 Trimod HE...
