Muting - ClearOne Beamforming Microphone Array Installation Manual

When the wall mounting of the Beamforming Microphone Array is completed, use the CONVERGE
Console software to configure the array for the proper pickup pattern.
» NOTE: Wall mounting MUST be strictly horizontal and with the "C" logo on the left-
hand side to assure proper adaptive steering of audio pickup.
m
uting
On the wall, the Mute On/Off buttons are available for use when conferencing. When the microphone
array is active, the microphone icons in the buttons illuminate blue. If either button is pressed, the
Beamforming Microphone Array mutes and the buttons illuminate red. If pressed again, the array
un-mutes and is active again.
24 Beamforming Microphone Array

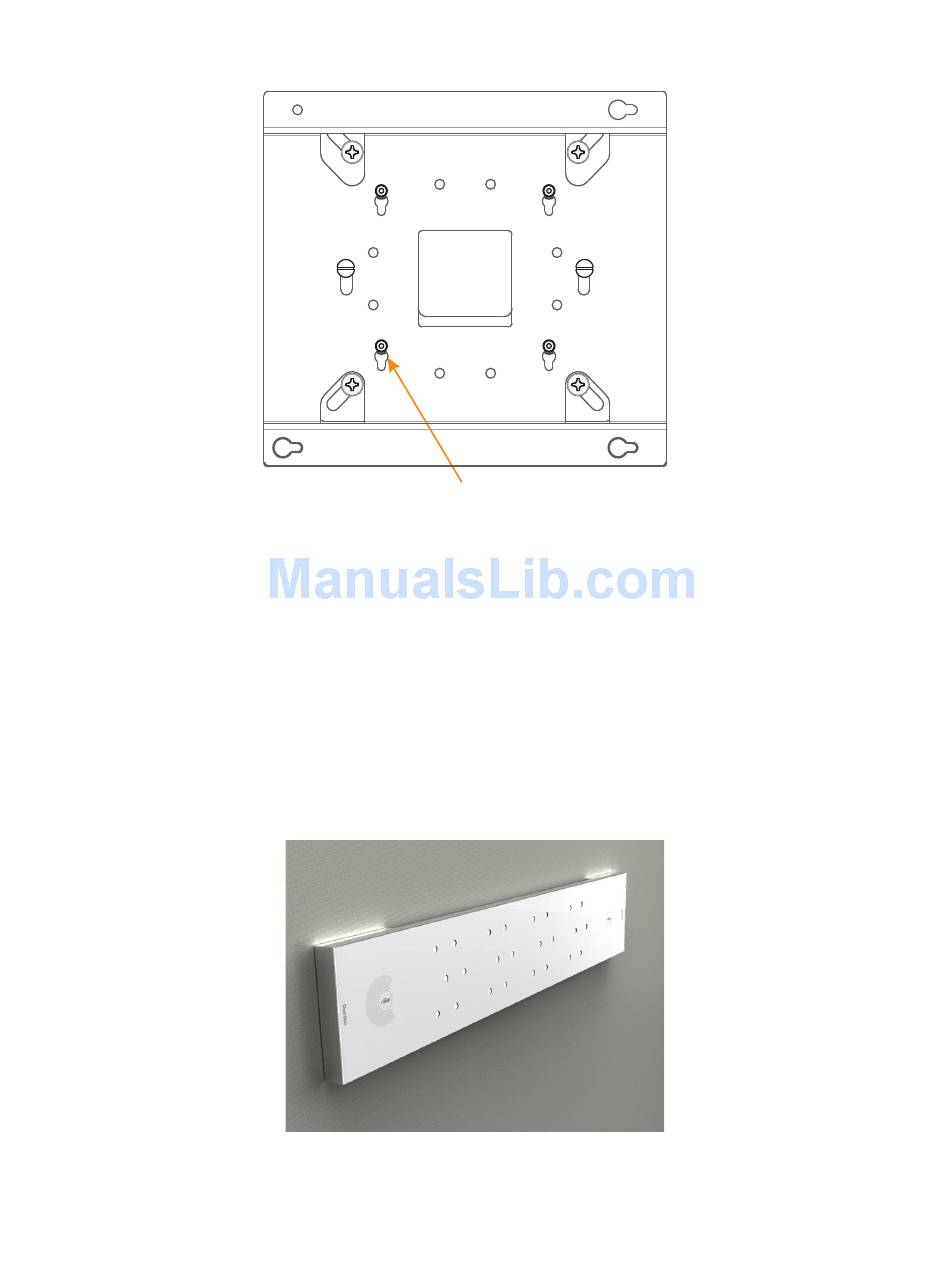

Front View of Mic Mounting Plate over Wall Mounting Plate
(Beamforming Microphone Array and cables not shown.)
Wall Mounting Plate stud through
slotted kehole in Mic Mounting Plate
