MOUNTING TO SUSPENDED CEILING

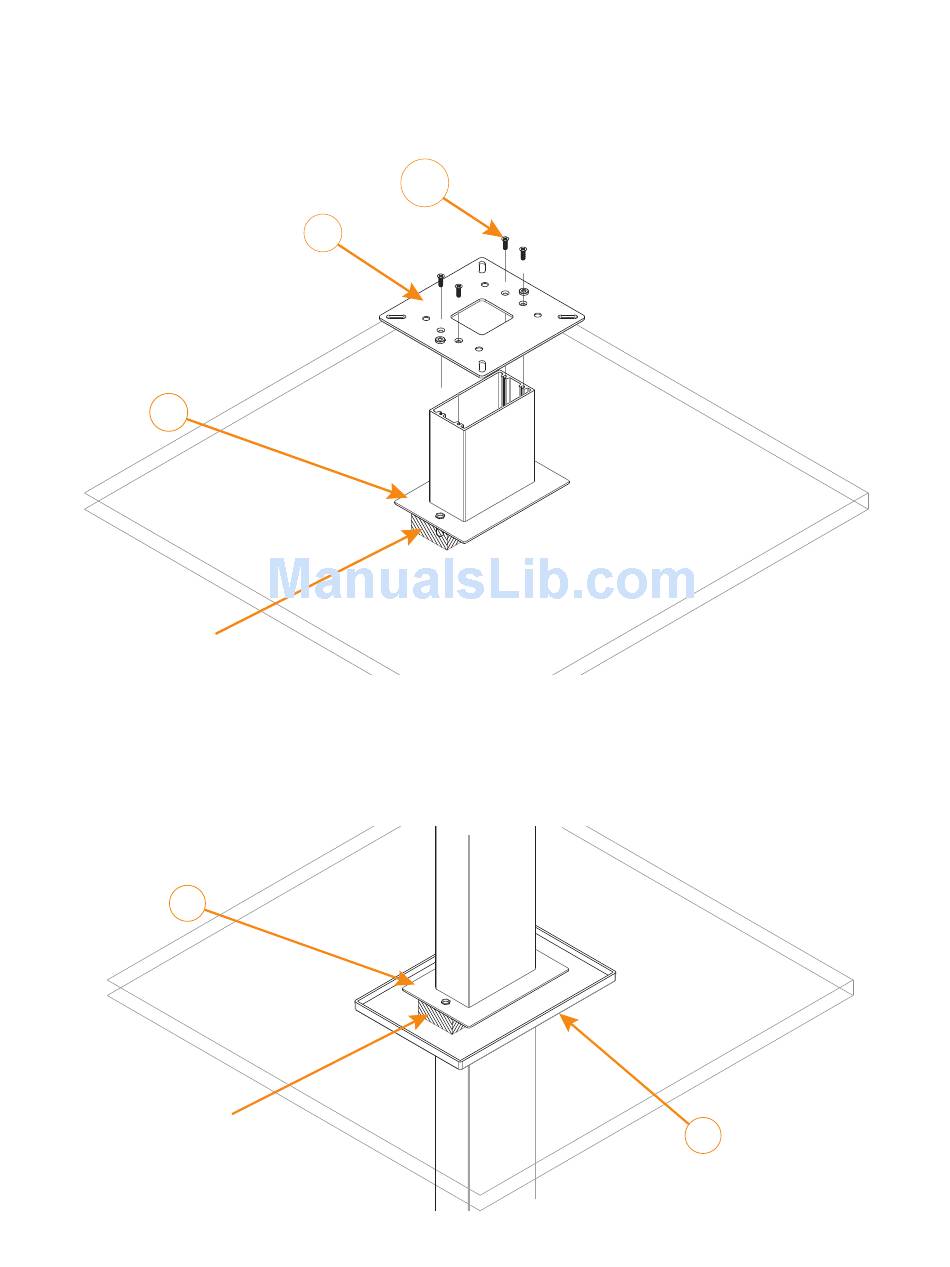

The Ceiling/Wall Mounting Plate attaches to the top of the Suspension Column, then the Suspended
Ceiling Trim Lock Plate is slipped on the Suspension Column with the screw hole posts facing
downward.
Suspended Ceiling
Trim Lock Plate
H
Pass-through
Cutout in Ceiling Tile
Feed the Suspension Column with the attached Ceiling/Wall Mounting plate down through the Trim
Locking plate and then through the ceiling tile cutout.
The Trim Plate slips up from underneath the ceiling tile up the Suspension Column, then attaches
to the Ceiling Trim Lock Plate through the ceiling tile.
Suspended Ceiling
Trim Lock Plate
H
Pass-through
Cutout in Ceiling Tile
12 Beamforming Microphone Array
4X HB
A
Use #1 Phillips screwdriver bit
to avoid damaging screws.
C
Trim Plate
Underneath Ceiling Tile
