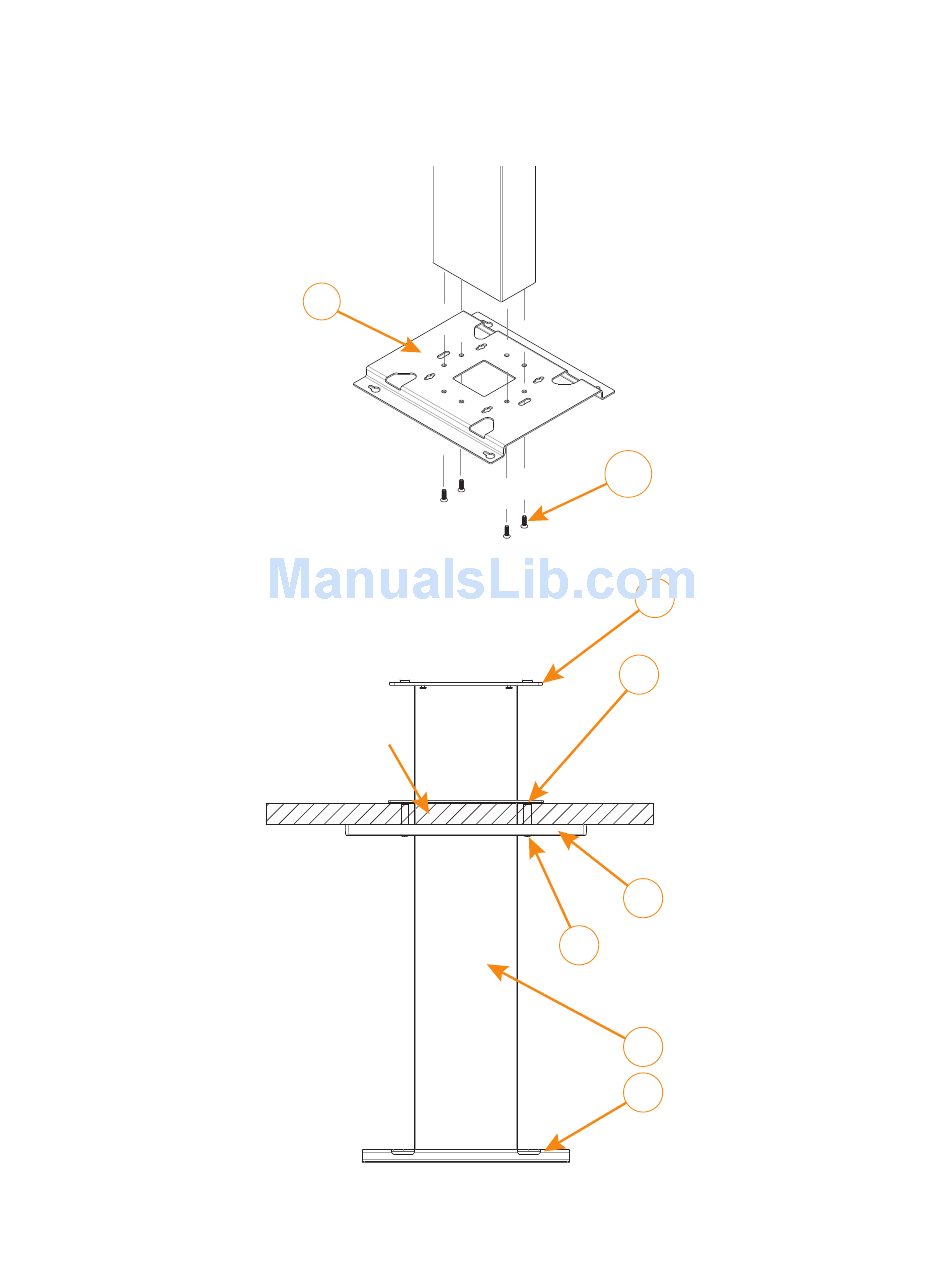

The Mic Mounting Plate attaches to the bottom of the Suspension Column.
»
NOTE: The Mic Mounting Plate can be rotated 90-degrees and then attached for
applications where the microphone orientation is rotated from the mounting of the
Suspension Column.
C
D
Use #1 Phillips
screwdriver bit
to avoid damaging
screws.
Pass-through
Cutout in
Ceiling Tile
HB 4X
A
H
C
HA 2X
B
D
Chapter 2: Ceiling Mount Installation
