MOUNTING PREPARATIONS

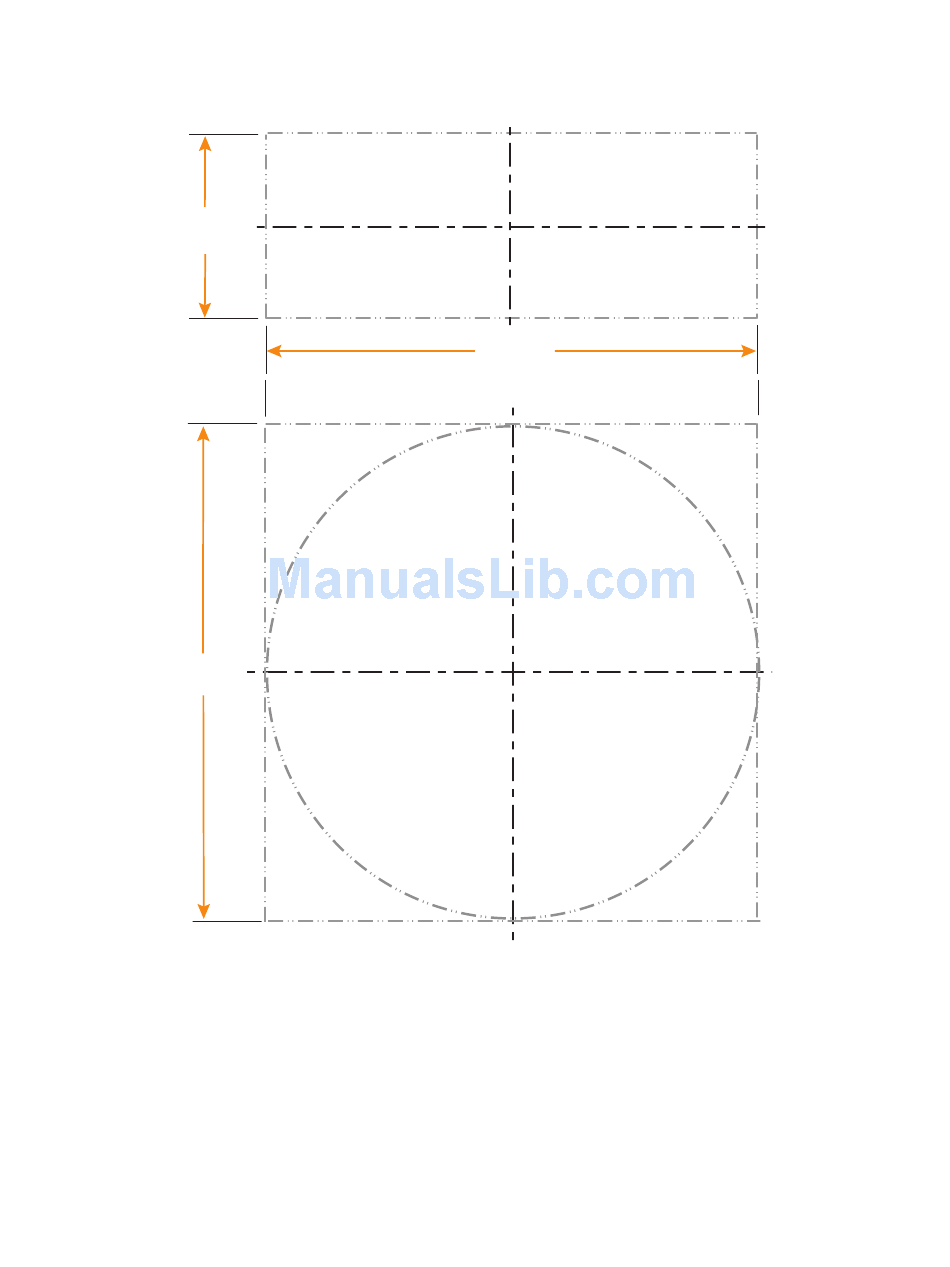

Use the following cutout dimensions for the type of mounting:
1-1/2"
1-1/2"
(38.1mm)
(38.1mm)
4"
4"
(101.6mm)
(101.6mm)
» NOTE: The included Trim Plate is to cover the mounting and cutout so be sure to not
exceed the Trim Plate dimensions.
SQUARE JUNCTION BOX CUT-OUT
SQUARE JUNCTION BOX CUT-OUT
This page can be used as a template for the cut-out.
SOLID OR SUSPENDED
SOLID OR SUSPENDED
CEILING CUT-OUT
CEILING CUT-OUT
4"
4"
(101.6mm)
(101.6mm)
CIRCULAR
CIRCULAR
SOLID OR SUSPENDED
SOLID OR SUSPENDED
CEILING CUT-OUT
CEILING CUT-OUT
Chapter 2: Ceiling Mount Installation 7
