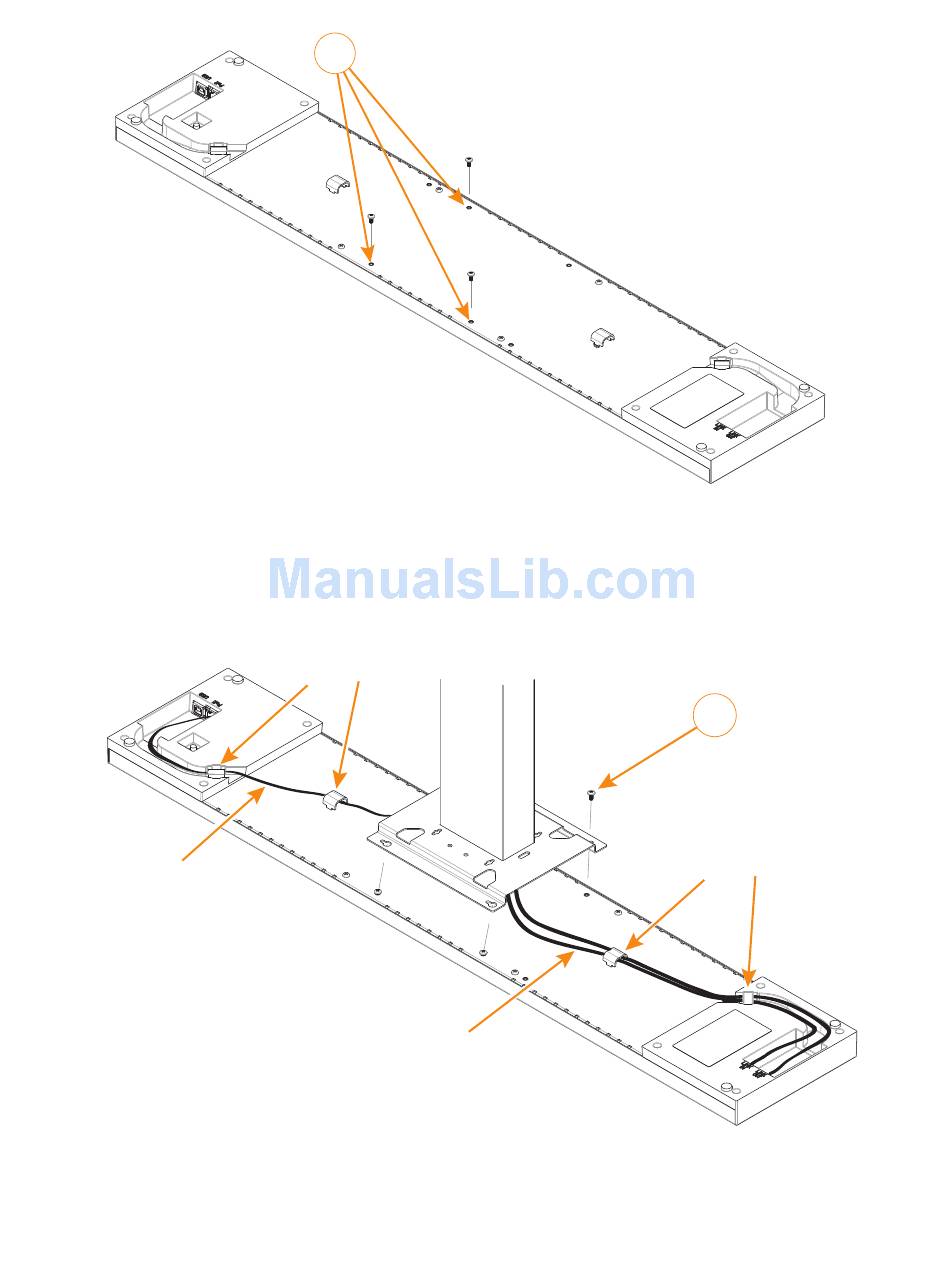

Route the Link IN, Link Out and PoE cables under the Mic Mount Plate and slide the Mic Mount
Plate onto the Beamforming Microphone Array over the screws and through the keyhole slots.
Then fasten the Beamforming Microphone Array securely in place with the last screw. Tighten all
remaining screws. Plug in and secure the cables under the cable retention clips.
Power over Ethernet Cable
Slide screws into keyhole slots
Install final screw and tighten all screws
HD 3X
NOTE: Insert screws only partially.
Cable Retention Clips
LINK IN and LINK OUT Cables
Chapter 2: Ceiling Mount Installation
HD
Cable Retention Clips
