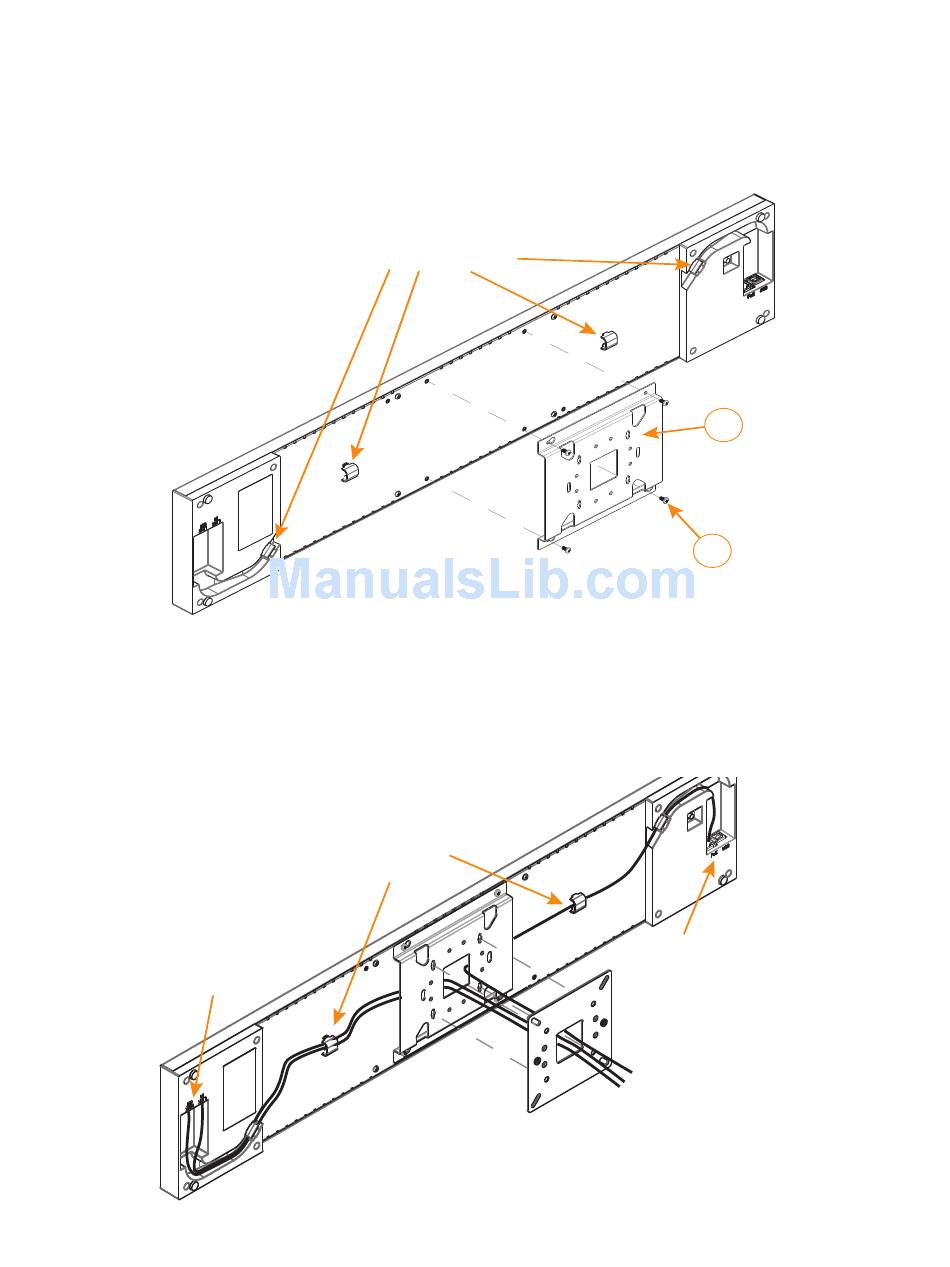

Notice that the Mic Mounting Plate (C) has four holes used for mounting to the back of the
Beamforming Microphone Array. There are three slotted keyholes big enough for screw heads to
pass through and one hole that is not slotted.
Place the Mic Mounting Plate on the back of the Beamforming Microphone Array and insert the
screws (A) into the Beamforming Microphone Array corresponding to the holes in the Mic Mounting
Plate. Tighten all screws with the #1 Phillips screwdriver.
For mountings with the cables coming through the wall, hold the Beamforming Microphone Array
with the Mic Mounting Plate attached, route the E-bus and PoE cables under the Mic Mounting
Plate to the ends where they will be connected. Connect the LINK IN, LINK OUT (if needed) and
PoE cables and secure the cables under the Cable Retention Clips.
Pass LINK IN, LINK OUT and PoE
cables through plates and
under Cable Retention Clips
LINK IN and LINK OUT
Connectors
22 Beamforming Microphone Array
Cable Retention Clips
Install and tighten all screws.
Use #1 Phillips screwdriver bit
to avoid damaging screws.
Use slotted keholes in Mic Mounting Plate
to hang Beamforming Microphone Array
on Ceiling/Wall Mounting Plate
C
A 4X
PoE Connector
