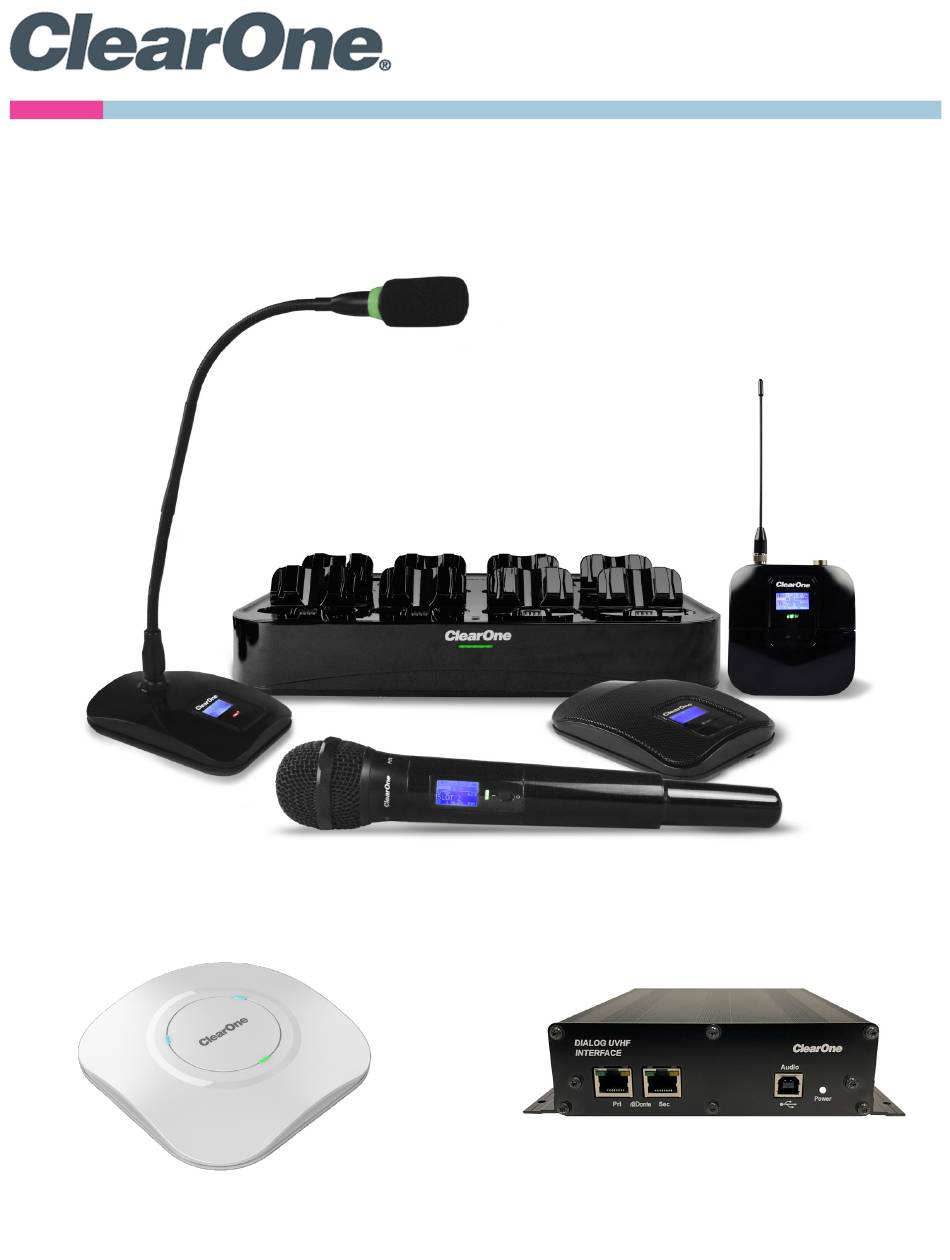

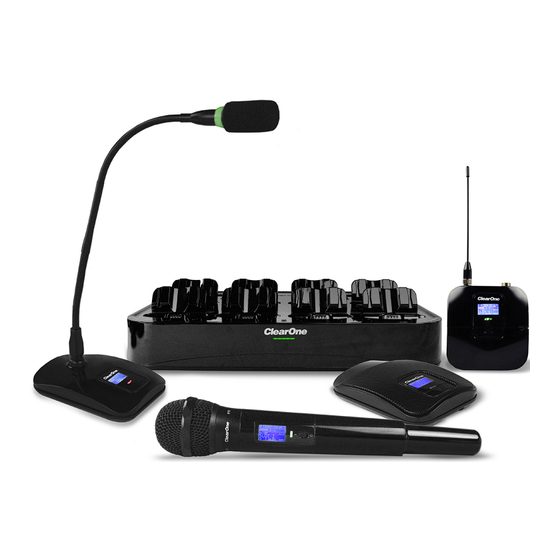

- Page 1 User Manual DIALOG® UVHF Microphone Transmitters and Charger Dock Access Point Dante Interface...
- Page 2 Tel: +1.801.974.3760 sales @ clearone.com audiotechsupport @ clearone.com Notices © 2024 ClearOne, Inc. All rights reserved. Information in this document is subject to change without notice Document: DOC-0435-001v1.0, March 2024 SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference.
-
Page 3: Table Of Contents
DIALOG UVHF User Manual Contents 1. Updating Firmware ..............3 2. Ethernet Settings ............... 5 3. Set Access Point Name ............. 6 4. Print Current Setting ..............7 5. View System Page ..............8 6. Dante Interface ................9 7. View Smart Dock ..............12 8. -
Page 4: Updating Firmware
DIALOG UVHF User Manual 1. Updating Firmware To use your Dialog UVHF wireless Microphone system at the optimum range, you will need to confirm that the latest firmware is installed. To do this simply. Download, install and run the Dialog UVHF Discovery app. - Page 5 DIALOG UVHF User Manual Left Click on the UPDATE SYSTEM section of the home page. You will need to DOWNLOAD the current firmware to install it on your AP . To do this, left click on the DOWNLOAD button. This will download the file on your computer. After the download completes, left click on the UPDATE button.
-
Page 6: Ethernet Settings
When the ACCESS POINT Homepage loads, it will look like this. 2. Ethernet Settings The Dialog UVHF system arrives in DHCP out of the box. If you want to change this to a STATIC IP address, simply left click on SETTINGS then ETHERNET SETTINGS. Click on the MANUALLY ASSIGN IP ADDRESS bubble and fill in the info needed. -
Page 7: Set Access Point Name
DIALOG UVHF User Manual 3. Set Access Point Name If you would like to name your access point you can do so by Left clicking on the SETTINGS and dropping down to Set Access Point Name. Simply Type the name and left click on the SEND button. Here is an example:... -
Page 8: Print Current Setting
DIALOG UVHF User Manual 4. Print Current Setting If you would like to print the current setting to record and save your home page settings for later you can left click on the SETTINGS and drop down to PRINT CURRENT SETTINGS. This will allow you to choose a Printer and Save by left clicking on the PRINT button. -
Page 9: View System Page
DIALOG UVHF User Manual 5. View System Page Clicking the VIEW SYSTEM PAGE button will bring up this screen. Clicking this will take you back to the AP System status page of the AP Access Point March 2024 Back to Table of Contents... -
Page 10: Dante Interface
DIALOG UVHF User Manual 6. View Dante Interface You will need to Assign a Dante Interface and Smart Dock to the AP by using the Appropriate Dropdown box. Clicking the VIEW DANTE INTERFACE button will bring up the Dante Interface page. - Page 11 DIALOG UVHF User Manual 6b. USB Audio Clicking the USB Digital Audio Output will bring up the USB Audio level (from the Dante Interface) The slider allows you to change the USB Audio level and the MUTE button allows you to mute the channel. After you have adjusted, you will need to click the APPLY button.
- Page 12 DIALOG UVHF User Manual 6c. Euro block And ¼ “ TRS Analog Output Here you can adjust the (8) analog outputs and or the TRS Analog MIX out (on the Dante Interface). This is adjusted and applied the same way the USB audio is configured.
-
Page 13: View Smart Dock
DIALOG UVHF User Manual 7. View Smart Dock To View your SMART DOCK, click on the VIEW SMART DOCK Button. Here you can view your transmitters charging status, Transmitter type and Sync Status. There are also indicators for the spare batteries at the top of the screen. -
Page 14: Rf Scan
8. RF Scan The RF scan function is imperative when using the Dialog UVHF. ClearOne recommends running an RF scan before assigning microphone (transmitter) RF channels. To run the RF scan, Left click on the RF Scan button. The RF Scan page contains all the resources you will need to record and assign reliable RF channels to your transmitters. -
Page 15: Backup Channels
“Primary Channel”. These are ideal for Mission critical audio situations. Here is the page that describes the Scan and some of its applications. This page explains why an RF scan is important to ensure reliable and optimal performance of the Dialog UVHF System. March 2024 Back to Table of Contents DOC-0435-001v1.0... -
Page 16: Editing
DIALOG UVHF User Manual 10. Editing Edit each slot by clicking on the edit button for each slot. You can choose the frequency by clicking on the RF channel dropdown box. You can edit other parameters here, also. Slot Name: You can name your channel slot here. -
Page 17: Alert
DIALOG UVHF User Manual 11. Alert To set up automatic system monitoring alerts, select [Alert]. An alert can either be shown on the GUI screen, or it can be emailed to one or more email lists. The Alerts screen lets you select which conditions trigger an alert. - Page 18 DIALOG UVHF User Manual Email servers and lists are set up by clicking SETUP EMAIL ADDRESS AND SERVER. Enter or update new details, test the configuration of your new details, and then select “APPLY”. March 2024 Back to Table of Contents...
-
Page 19: File
DIALOG UVHF User Manual For greater detail on the Email Alerts Setup function and its application, select the question mark icon in the window. Another window displays with the details. 12. File Use this section to Load or save your files. - Page 20 DIALOG UVHF User Manual March 2024 Back to Table of Contents DOC-0435-001v1.0...
-
Page 21: Exposure And Compliance
IC: 1970A-DIALOGUVHFBD Modifications (FCC 15.21) Warning: Changes or modifications to this equipment not expressly approved by ClearOne may void the user’s authority to operate this equipment according to your local radio regulatory authorities. Clearone Wireless Receivers, Transmitters, and, Antennas are intended for indoor use only. - Page 22 DIALOG UVHF User Manual This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two con- ditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
