Quick Start Guide

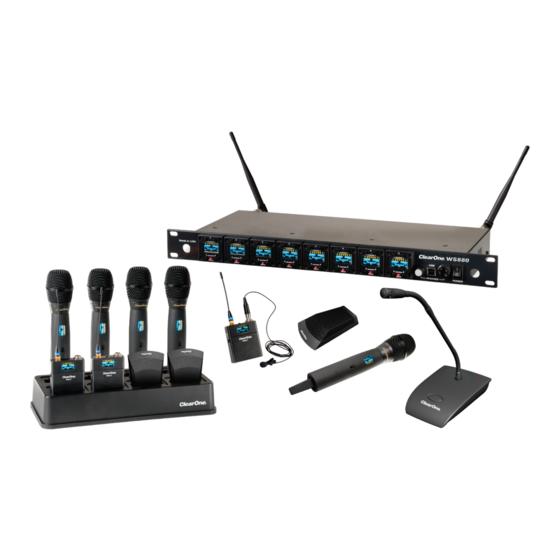

WS800 Wireless Microphone System
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS840D-M610 and is the answer not in the manual?

Questions and answers

Related Manuals for ClearOne WS840D-M610

Summary of Contents for ClearOne WS840D-M610

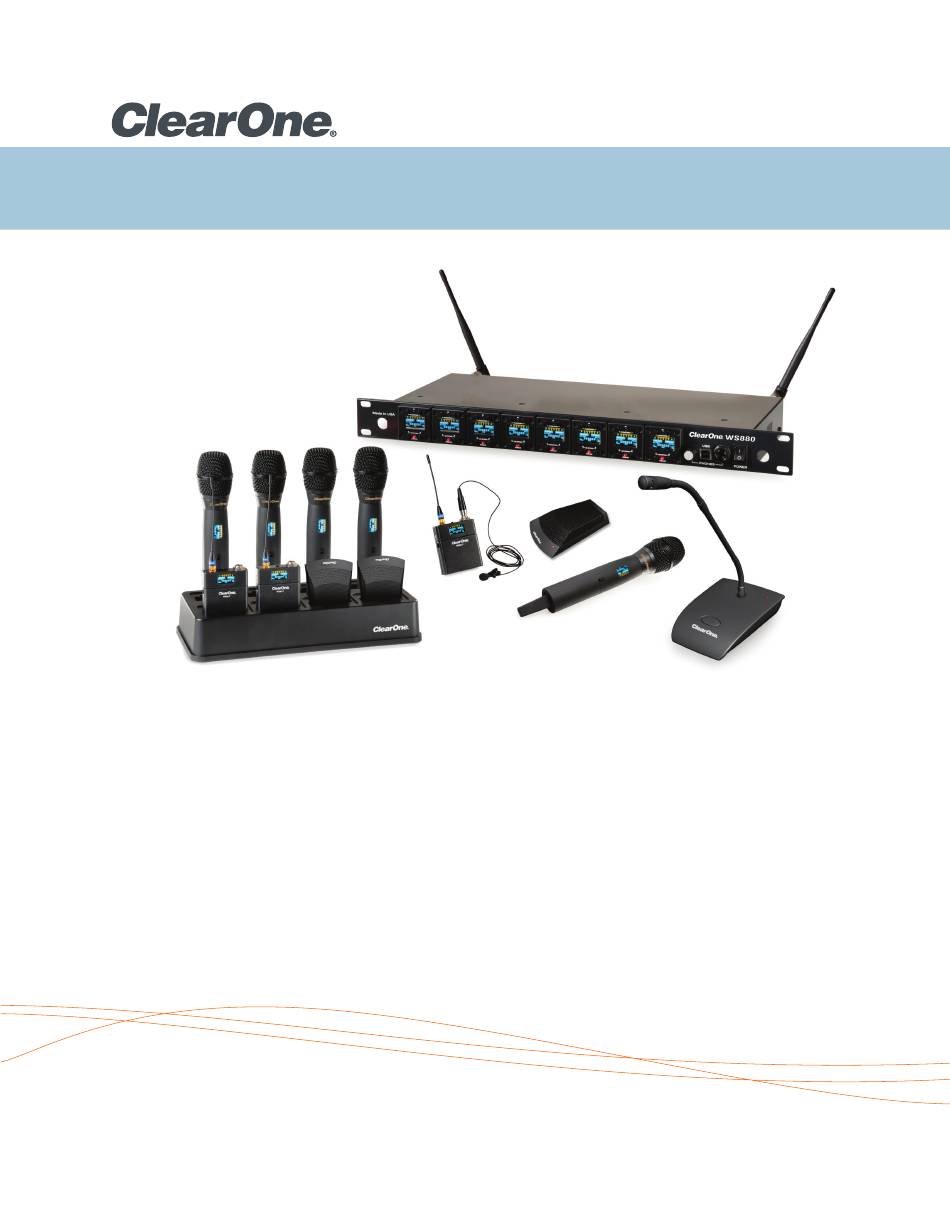

  • Page 1 Quick Start Guide WS800 Wireless Microphone System Quick Start Guide...
  • Page 2 Connect the analog outputs to the mixer: The system is shipped with either XLR or Euro Block connectors. The default output level is set to 0 dBu. Note that factory default for the front panel headphone jack is set for mixed line-level out. Use ClearOne Remote>Settings>Headphone, to reset for headphones.
  • Page 3 3. Ethernet Settings: If using Ethernet, assign the proper IP address to the receiver or, enable DHCP . Default = DHCP enabled. 4. RF Scan - RF Plot: Shows the RF strength of each antenna in a ClearOne system and shows if there is out- side interference.

  • Page 4: How To Sync Transmitters With The Receiver

    How to sync transmitters with the receiver: How to sync transmitters with the receiver: 1. Locate the IR (infrared) Sensor on the transmitter. ON / OFF ON/OFF 2. Power on the transmitter. 3. Hold transmitter about 6 inches from the corresponding receiver module with the IR sensor aimed at the receiver module.

  • Page 5: Front Panel

    2. Receiver Module (See details below). 3. Mixed audio volume control. 4. USB Port. Connect to computer for ClearOne Remote control. Run software to monitor/edit system parameters, scan for RF interference and download firmware upgrades. 5. Mixed audio output, 1/4” (See headphone mode - Pg. 3) phone jack for monitoring individual channels or mixed channels.

  • Page 6: Receiver Back

    GPIO: GPIO acts like a contact closure. Use ClearOne Remote to assign an event that toggles the GPIO pin. The factory default toggles pins X through X to correspond to muting a receiver module. ClearOne Remote has a feature that lets you assign how the system responds to a transmitter mute (see ClearOne Remote).

  • Page 7: Hand-Held Microphone

    2. Programmable Switch: Toggle on/off, on/mute/ or on/on. 3. Microphone Connector: TA4 mini XLR style: ClearOne offers a full range of lavaliere and headset mics for optimal performance of your ClearOne transmitter. Works with both snap in and screw-in microphones.

  • Page 8: Podium Gooseneck Stem

    Transmitters: TABLE-TOP MICROPHONE: The ClearOne WS800 Table-top Microphone combines the professional audio specs and security of a wired mic with wireless convenience. Available in omni or cardioid polar pick-up patterns with 265-bit FIPS 197 encryption. 1. Power LED: When the Table Mic is on, the LED signals: Red = audio mute.

  • Page 9: Podium Gooseneck

    RED = Charging / OFF = finished charging. 10. Battery Cassette: Push tab to remove the battery cassette. Recharge the batteries by inserting the cassette into the ClearOne Charging Dock. (See figure 1) The battery cassette holds four, off-the-shelf, AA, NiMH batteries for up to 9.5 hours continuous usage per charge.
  • Page 10 DANTE: Dante Output option for ClearOne WS800 wireless receivers: The Dante option for WS800 series wireless microphone receivers adds networked digital audio output to the receiver audio output options. Each receiver slot is assigned an output channel on the installed Dante output card. These digital audio streams can then be routed to any Dante input devices using the Dante Controller software application, shown below.

  • Page 11: Exposure And Compliance

    IC: 1970A-HANDHELDMIC IC: 8240A-DS80H Modifications (FCC 15.21) Changes or modifications to this equipment not expressly approved by ClearOne may void the user’s authority to operate this equipment. Clearone Wireless Receivers, Transmitters, and, Antennas are intended for indoor use only. Applies to WS80-T: Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada.
  • Page 12 Sales: 800-707-6994 Other product names may be registered trademarks of their respective owners who do not necessarily endorse ClearOne or ClearOne’s products. All rights reserved. Information in Fax: 801-977-0087 this document subject to change without notice. © 2014 ClearOne. LIT-CO-RCVR-OP-EN V6.0 July 2015...
